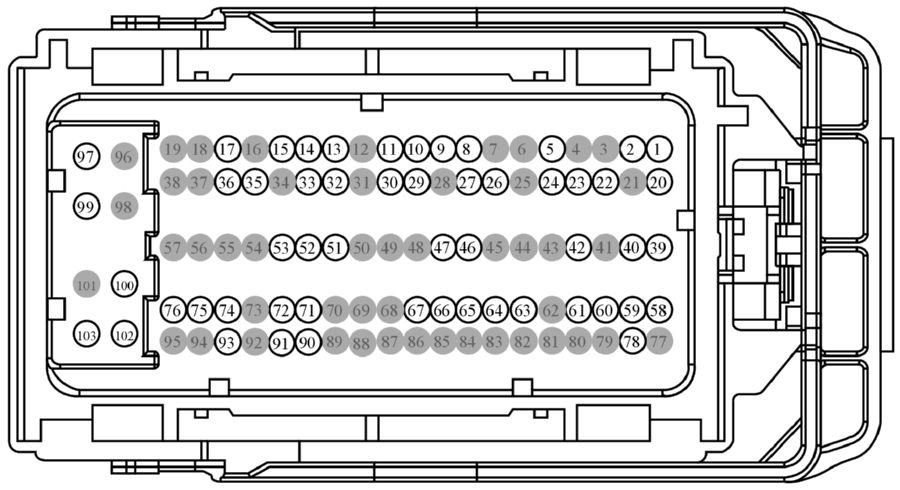

| 1 |
CE336 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR RELAY ONE TOUCH START (SMRC) |
7S4T-14474-AA |
| 2 |
VE462 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE |
7S4T-14474-AA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
GD113 (BK-YE) |
18 |
GROUND - COWL TOP RIGHT (PWRGND) |
7S4T-14474-AA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
VET30 (YE) |
20 |
SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS] |
N/A |
| 9 |
VET29 (VT-WH) |
20 |
SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS] |
N/A |
| 10 |
CEC07 (BN) |
20 |
RELAY - ENGINE COOLING FAN HIGH SPEED (HFC) |
7S4T-14474-AA |
| 11 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CDC10 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) |
7S4T-14474-AA |
| 14 |
VE225 (YE-OG) |
20 |
FUEL PUMP COMMAND (FPC) |
7S4T-14474-AA |
| 15 |
CH302 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) |
7S4T-14474-AA |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
CEC08 (GN-WH) |
20 |
RELAY - ENGINE COOLING FAN LOW SPEED (LFC) |
7S4T-14474-AA |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
CE237 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCMRC) |
7S4T-14474-AA |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
CET42 (GN-VT) |
20 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
7S4T-14474-AA |
| 23 |
CET43 (GY) |
20 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
7S4T-14474-AA |
| 24 |
VCF34 (WH) |
20 |
CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM) |
7S4T-14474-AA |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
CDC15 (VT) |
20 |
GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) |
7S4T-14474-AA |
| 27 |
VE518 (BN-WH) |
20 |
MONITOR - FUEL PUMP (FPM) |
7S4T-14474-AA |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
LE230 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE REF. VOLT. (VREF) |
7S4T-14474-AA |
| 30 |
RE230 (WH-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
TIVCT |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
VET31 (BU-OG) |
20 |
SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] |
N/A |
| 33 |
VH433 (VT-OG) |
20 |
TRANSDUCER - A/C PRESSURE (ACPT) + |
7S4T-14474-AA |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
RE136 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) |
7S4T-14474-AA |
| 36 |
LE136 (GN-OG) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) |
7S4T-14474-AA |
| 37 |
* |
* |
Not Used |
N/A |
| 38 |
* |
* |
Not Used |
N/A |
| 39 |
CE114 (GN-BU) |
20 |
EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE (CANV) |
7S4T-14474-AA |
| 40 |
LE137 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (VREF) |
7S4T-14474-AA |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
CDC35 (BU-WH) |
20 |
SWITCH - IGNITION # START |
7S4T-14474-AA |
| 43 |
* |
* |
Not Used |
N/A |
| 44 |
* |
* |
Not Used |
N/A |
| 45 |
* |
* |
Not Used |
N/A |
| 46 |
VE922 (VT-GN) |
20 |
TRANSDUCER - FUEL TANK PRESSURE (FTPT) |
7S4T-14474-AA |
| 47 |
VH407 (BN) |
18 |
SENSOR - AMBIENT TEMP. (AAT) |
7S4T-14474-AA |
| 48 |
* |
* |
Not Used |
N/A |
| 49 |
* |
* |
Not Used |
N/A |
| 50 |
* |
* |
Not Used |
N/A |
| 51 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
7S4T-14474-AA |
| 52 |
LE424 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) |
7S4T-14474-AA |
| 53 |
VDC61 (VT-GN) |
20 |
SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
7S4T-14474-AA |
| 54 |
* |
* |
Not Used |
N/A |
| 55 |
* |
* |
Not Used |
N/A |
| 56 |
* |
* |
Not Used |
N/A |
| 57 |
* |
* |
Not Used |
N/A |
| 58 |
CDC12 (YE) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
7S4T-14474-AA |
| 59 |
RE137 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) |
7S4T-14474-AA |
| 60 |
VE702 (BU-WH) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
7S4T-14474-AA |
| 61 |
VE701 (YE-OG) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
7S4T-14474-AA |
| 62 |
* |
* |
Not Used |
N/A |
| 63 |
VCF35 (GN) |
20 |
CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC) |
7S4T-14474-AA |
| 64 |
CBB90 (YE-OG) |
20 |
FUSE - 90 OR CIRCUIT BREAKER (ISP-R) |
7S4T-14474-AA |
| 65 |
CE436 (VT-OG) |
20 |
CTRL MOD. -WAKE UP PCM |
7S4T-14474-AA |
| 66 |
CES09 (VT-OG) |
20 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) |
7S4T-14474-AA |
| 67 |
CCB08 (VT-WH) |
20 |
SWITCH - BRAKE PEDAL POSITION (BPP) |
7S4T-14474-AA |
| 68 |
* |
* |
Not Used |
N/A |
| 69 |
* |
* |
Not Used |
N/A |
| 70 |
* |
* |
Not Used |
N/A |
| 71 |
RE242 (GN) |
20 |
CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (HEGO_RTN) |
N/A |
| 72 |
VE731 (YE-GN) |
20 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
N/A |
| 73 |
* |
* |
Not Used |
N/A |
| 74 |
VDN06 (WH-GN) |
18 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 |
7S4T-14474-AA |
| 75 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
7S4T-14474-AA |
| 76 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
7S4T-14474-AA |
| 77 |
* |
* |
Not Used |
N/A |
| 78 |
VMC05 (VT-OG) |
20 |
CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT) |
7S4T-14474-AA |
| 79 |
* |
* |
Not Used |
N/A |
| 80 |
* |
* |
Not Used |
N/A |
| 81 |
* |
* |
Not Used |
N/A |
| 82 |
* |
* |
Not Used |
N/A |
| 83 |
* |
* |
Not Used |
N/A |
| 84 |
* |
* |
Not Used |
N/A |
| 85 |
* |
* |
Not Used |
N/A |
| 86 |
* |
* |
Not Used |
N/A |
| 87 |
* |
* |
Not Used |
N/A |
| 88 |
* |
* |
Not Used |
N/A |
| 89 |
* |
* |
Not Used |
N/A |
| 90 |
RE249 (WH-GN) |
20 |
CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 2ND |
N/A |
| 91 |
VE733 (WH) |
20 |
SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) |
N/A |
| 92 |
* |
* |
Not Used |
N/A |
| 93 |
CET35 (BN) |
20 |
SWITCH - TRANSMISSION DOWN SHIFT DEMAND (TDD) |
N/A |
| 94 |
* |
* |
Not Used |
N/A |
| 95 |
* |
* |
Not Used |
N/A |
| 96 |
* |
* |
Not Used |
N/A |
| 97 |
CBB69 (WH-VT) |
16 |
FUSE - 69 OR CIRCUIT BREAKER (VPWR) |
7C3T-14474-DA |
| 98 |
* |
* |
Not Used |
N/A |
| 99 |
CBB69 (WH-VT) |
16 |
FUSE - 69 OR CIRCUIT BREAKER (VPWR) |
7C3T-14474-DA |
| 100 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
7C3T-14474-DA |
| 101 |
* |
* |
Not Used |
N/A |
| 102 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
7C3T-14474-DA |
| 103 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
N/A |
