Parking, Rear And License Lamps

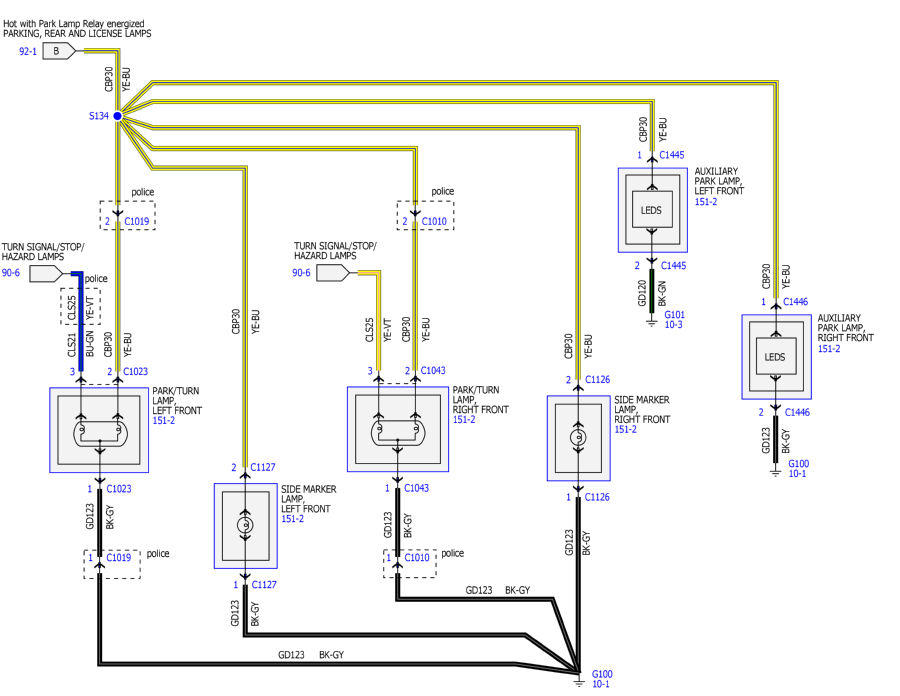

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 Of 3)
GFDWR31119Courtesy of FORD MOTOR COMPANY

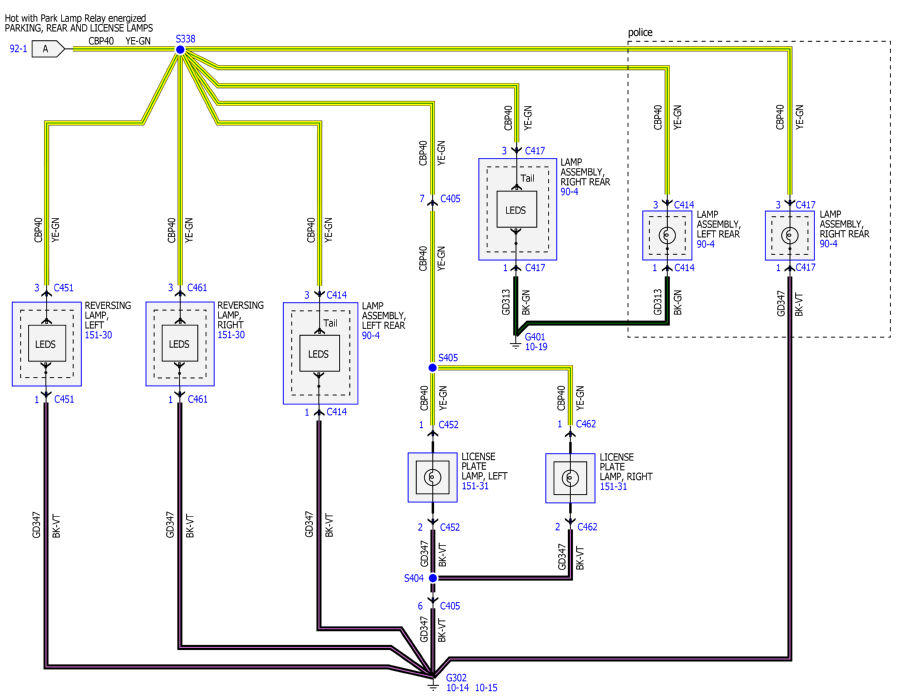

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 Of 3)
GFDWR31120Courtesy of FORD MOTOR COMPANY

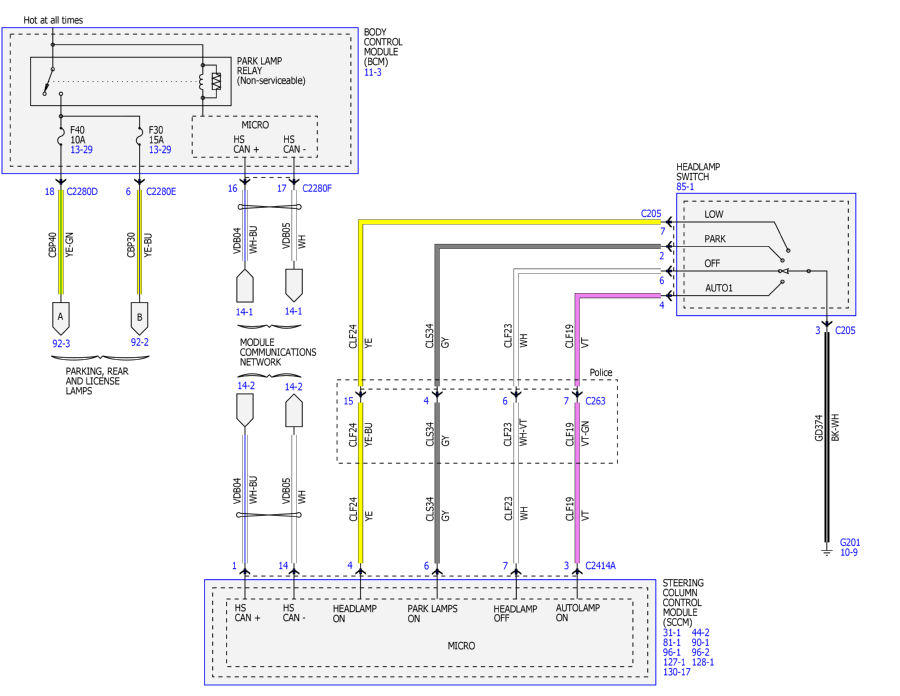

Fig 3: Parking, Rear and License Lamps Wiring Diagram (3 Of 3)
GFDWR31121Courtesy of FORD MOTOR COMPANY
