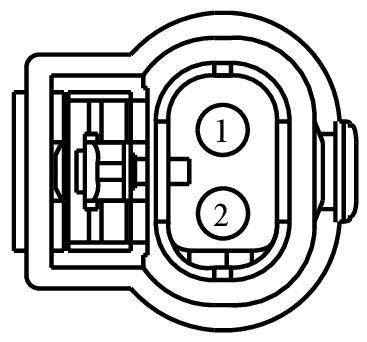

Connector End View (C1649) - VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1649	VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID	NA	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)	N/A
2	CE422 (WH-OG)	18	CTRL MOD. - VARIABLE CAMSHAFT TIMING 12 (VCT12)	N/A

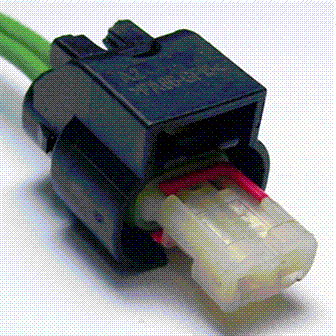

Available Pigtail Kits

Pigtail Kit Part Number WPT-1250

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-CA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Solenoid - Engine Variable Timing
