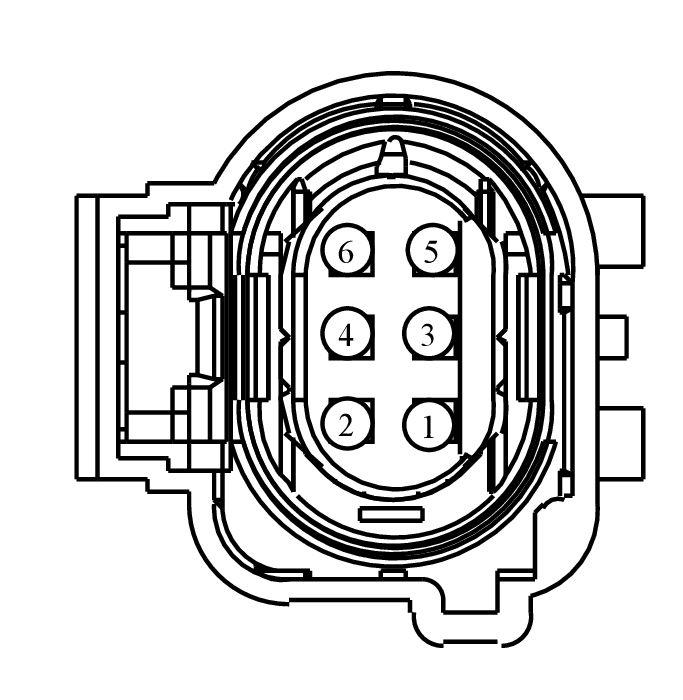

Connector End View (C1631) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1631	UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11	BK	12C508	9F472	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11)	3.5L	N/A
1	LE452 (GN)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPC11)	2.0L	N/A
2	LE448 (GY-BU)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11)	N/A
3	CE235 (GN-BN)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (UO2SHTR11)	N/A
4	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)	N/A
5	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPCT11)	2.0L	N/A
5	LE452 (GN)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11)	3.5L	N/A
6	VE826 (BN-VT)	18	SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11)	N/A
