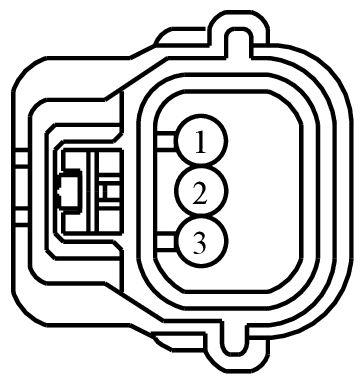

Connector End View (C1607) - FRONT ACTIVE PARK ASSIST SENSOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1607	FRONT ACTIVE PARK ASSIST SENSOR LH	none	15K867	14A464	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP07 (BU-WH)	18	CTRL MOD. - PARKING AID # SENSORS REAR +	N/A
2	VMP21 (WH-BN)	18	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE	N/A
3	RMP07 (GN-WH)	18	CTRL MOD. - PARKING AID # SENSORS REAR -	N/A

Available Pigtail Kits

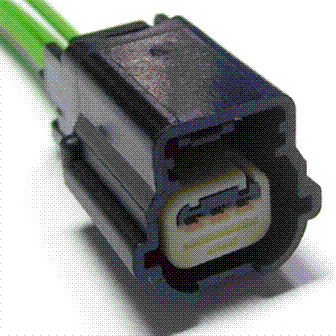

Pigtail Kit Part Number WPT-1394

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AFB

Gauge:

20

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Sensor - Front Park Aid (FPA)

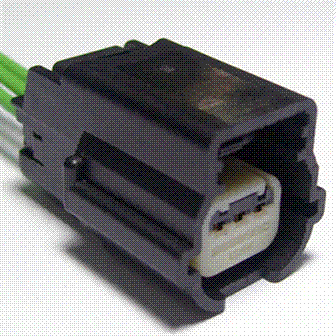

Pigtail Kit Part Number WPT-1095

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AFA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Sensor - Front Park Aid (FPA)
