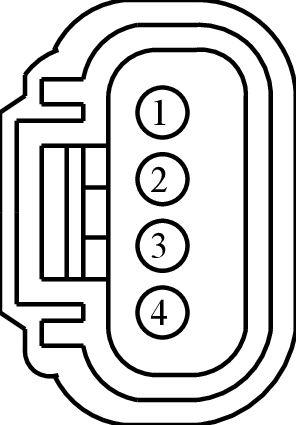

Connector End View (C1588) - TURBOCHARGER BOOST PRESSURE/CHARGE AIR COOLER TEMPERATURE (TCBP/CACT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1588	TURBOCHARGER BOOST PRESSURE/CHARGE AIR COOLER TEMPERATURE (TCBP/CACT) SENSOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE804 (GN-BN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TCBP)	N/A
2	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	N/A
3	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (CACT)	N/A
4	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	N/A

Available Pigtail Kits

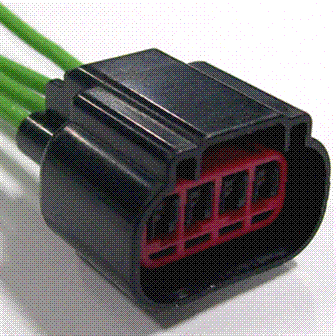

Pigtail Kit Part Number WPT-1339

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SPC

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Actuator - Intake Manifold Valve
• Coil - Ignition
• Lamp - Front Cornering/Turn
• Lamp - Park/Turn
• Sensor - Intake Manifold Runner Control
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Turbine Shaft Speed
• Sensor - Turbo Intake Pressure/Temperature
• Switch - Sliding Door Contact
