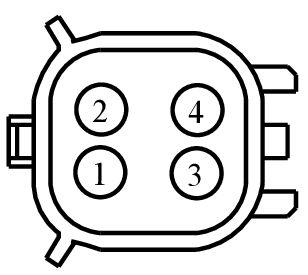

Connector End View (C1569) - HEATED OXYGEN SENSOR (HO2S) #22

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1569	HEATED OXYGEN SENSOR (HO2S) #22	BK	14B060	9G444	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB67 (GN-BN)	18	FUSE - 67 OR CIRCUIT BREAKER	N/A
2	CE234 (BU-WH)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22)	N/A
3	RE249 (WH-GN)	18	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 2ND	N/A
4	VE733 (WH)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1288

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ZA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Catalyst Monitor
• Sensor - O2 (HEGO/ EGO)
