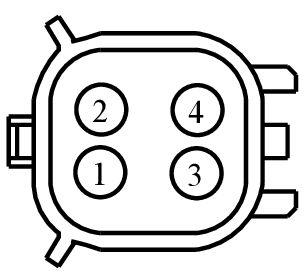

Connector End View (C1511) - HEATED OXYGEN SENSOR (HO2S) #12

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1511	HEATED OXYGEN SENSOR (HO2S) #12	GY	14B060	9G444	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB67 (GN-BN)	18	FUSE - 67 OR CIRCUIT BREAKER	N/A
2	CE233 (WH-OG)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)	N/A
3	RE242 (GN)	18	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (SIGRTN)	N/A
4	VE731 (YE-GN)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	N/A

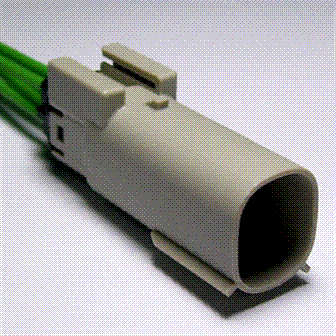

Available Pigtail Kits

Pigtail Kit Part Number WPT-1444

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AHA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Lamp - License
• Sensor - Catalyst Monitor
• Sensor - O2 (HEGO/ EGO)
