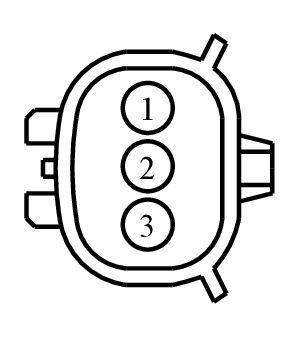

Connector End View (C1431) - PARKING AID SENSOR, FRONT OUTER RIGHT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1431	PARKING AID SENSOR, FRONT OUTER RIGHT	BK	14290	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2L1T-14421-CA	EU2Z-14421-CA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP07 (BU-WH)	18	CTRL MOD. - PARKING AID # SENSORS REAR +	2L1T-14421-CA
2	VMP21 (WH-BN)	18	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE	2L1T-14421-CA
3	RMP07 (GN-WH)	18	CTRL MOD. - PARKING AID # SENSORS REAR -	2L1T-14421-CA

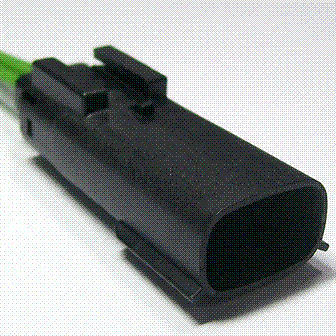

Available Pigtail Kits

Pigtail Kit Part Number WPT-1180

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-ASA

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Speaker - Tweeter - RH - Rear
