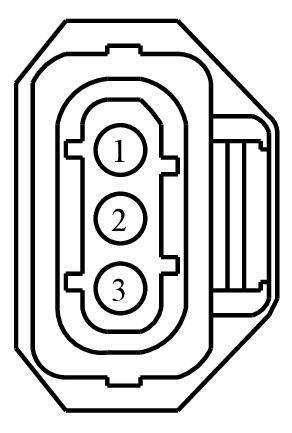

Connector End View (C1360) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1360	FUEL RAIL PRESSURE (FRP) SENSOR	12B637			14A464	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (BU)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	3.5L GTDI	N/A
1	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	2.0L GTDI	N/A
2	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	2.0L GTDI	N/A
2	* (BK)	20	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	3.5L GTDI	N/A
3	* (GY)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREV) (VREF1)	3.5L GTDI	N/A
3	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	2.0L GTDI	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1099

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BBA

Gauge:

14

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Fuel Injector
• Pump - Fuel Injection
• Sensor - Manifold Absolute Pressure (MAP)
• Solenoid - Fuel Volume Regulator Control
