Connector End View (C1246) - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1246	TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID	BK	12C508	9K378	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE824 (YE-GN)	20	CTRL MOD. - POWERTRAIN - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)	N/A
2	CBK03 (GY)	20	FUSE - 3 OR CIRCUIT BREAKER (VPWR)	N/A

Available Pigtail Kits

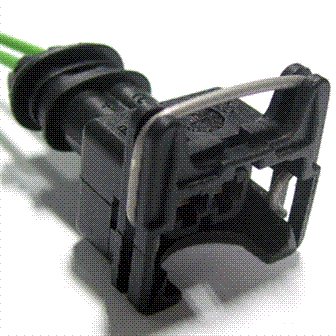

Pigtail Kit Part Number WPT-1107

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BEA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Turbocharger Waste Gate
• Solenoid - EGR Cooler Bypass
