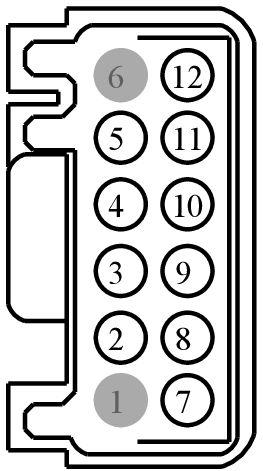

Connector End View (C3388B) - SEAT CONTROL SWITCH, PASSENGER SIDE FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3388A	SEAT CONTROL SWITCH, PASSENGER SIDE FRONT	LT GY	14D230	14A701	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-BBA	EU2Z-14421-EA	2.8
97BG-14421-BCA	EU2Z-14421-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CPS33 (WH)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER FORWARD	97BG-14421-BBA
3	CPS37 (WH-BU)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT UP	97BG-14421-BBA
4	CPS38 (GN-BU)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER REARWARD	97BG-14421-BBA
5	CPS36 (YE-GY)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT DOWN	97BG-14421-BBA
6	*	*	Not Used	N/A
7	GD903 (BK-WH)	14	GROUND - PASSENGER SEAT # SEAT SWITCH	97BG-14421-BCA
8	CPS40 (VT-GY)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE REARWARD	97BG-14421-BBA
9	CPS39 (GY-YE)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE FORWARD	97BG-14421-BBA
10	CPS34 (GY-BU)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT (TILT) DOWN	97BG-14421-BBA
11	CPS35 (VT-GN)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT (TILT) UP	97BG-14421-BBA
12	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH	97BG-14421-BCA
