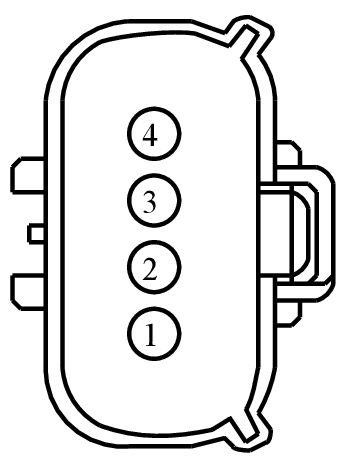

Connector End View (C3215) - SAFETY BELT BUCKLE SWITCH/PRETENSIONER, DRIVER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3201	SAFETY BELT BUCKLE SWITCH/PRETENSIONER, DRIVER	BK	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7U5T-14474-SA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR120 (BU-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +	7U5T-14474-SA
2	RR120 (BN-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -	7U5T-14474-SA
3	CR201 (GN-BU)	20	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE	7U5T-14474-SA
4	RR137 (BU-GY)	20	COMMON RETURN	7U5T-14474-SA

Available Pigtail Kits

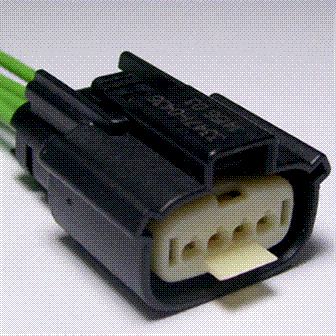

Pigtail Kit Part Number WPT-1427

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-MB

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Pretensioner - Seat Belt (Driver)
• Pretensioner - Seat Belt (Passenger)
• Switch - Seatbelt

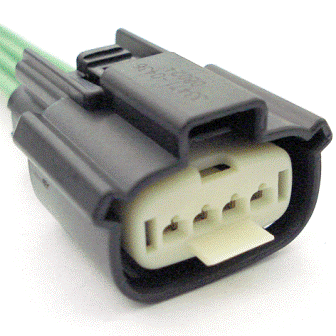

Pigtail Kit Part Number WPT-940

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-MA

Gauge:

14

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Pretensioner - Seat Belt (Passenger)
