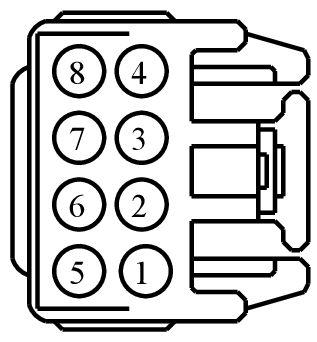

Connector End View (C3201) - PASSENGER SEAT RECLINER MOTOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3189 | PASSENGER SEAT RECLINER MOTOR | BN | 14D232 | 14547 | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3S7T-14474-DA | Not Available | |
| 96AG-14474-RZA | FU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPS07 (GY-BN) | 16 | CTRL MOD. - PASSENGER SEAT RECLINE INCLINE | 3S7T-14474-DA | ||||
| 2 | VPS12 (GY-OG) | 20 | SENSOR - PASSENGER SEAT RECLINE | 96AG-14474-RZA | ||||
| 3 | CPS08 (VT-OG) | 16 | CTRL MOD. - PASSENGER SEAT RECLINE RECLINE | 3S7T-14474-DA | ||||
| 4 | RPS13 (GN-OG) | 20 | CTRL MOD. - PASSENGER SEAT SENSORS CUSHION - | 96AG-14474-RZA | ||||

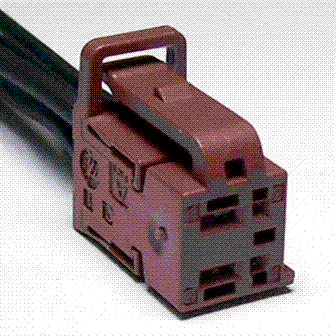

Available Pigtail Kits
Pigtail Kit Part Number WPT-1191
Service Part Number:
BU2Z-14S411-AEA
Gauge:
14 18
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Motor - Seat Recline
- Motor - Steering Column Adjust
