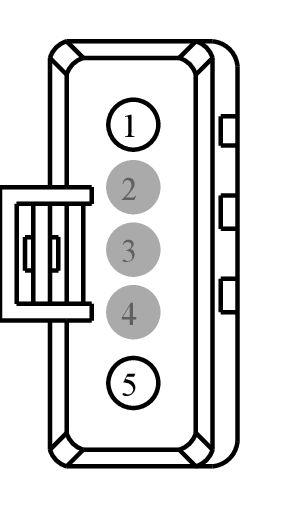

Connector End View (C3120) - PASSENGER SEAT REAR HEIGHT MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3075	PASSENGER SEAT REAR HEIGHT MOTOR	BK	14D230	61710	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3S7T-14474-DA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPS37 (WH-BU)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT UP	3S7T-14474-DA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CPS36 (YE-GY)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT DOWN	3S7T-14474-DA

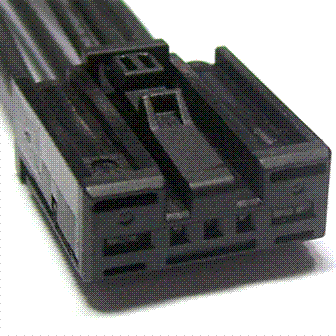

Available Pigtail Kits

Pigtail Kit Part Number WPT-1071

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-PA

Gauge:

14 18

Pin material:

Tin (greased)

Cavities:

5

Vehicle Uses:

• Motor - Seat Height (Rear)
• Motor - Seat Recline

Pigtail Kit Part Number WPT-1450

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-PB

Gauge:

14 20

Pin material:

Tin (greased)

Cavities:

5

Vehicle Uses:

• Clockspring
• Module - Power Steering
• Motor - Seat Height (Front)
• Motor - Seat Height (Rear)
• Motor - Seat Recline
