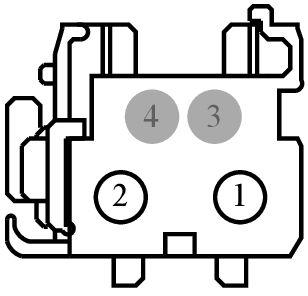

Connector End View (C3075) - PASSENGER SEAT FRONT HEIGHT MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3074	PASSENGER SEAT FRONT HEIGHT MOTOR	GY	14D230	61710	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1C1T-14474-BA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPS35 (VT-GN)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT (TILT) UP	1C1T-14474-BA
2	CPS34 (GY-BU)	16	SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT (TILT) DOWN	1C1T-14474-BA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1501

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-RB

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Power Seat Track
• Motor - Seat Height (Front)
• Motor - Seat Height (Rear)
• Motor - Seat Recline
• Motor - Steering Column Adjust

Pigtail Kit Part Number WPT-1072

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-RA

Gauge:

14 18

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Power Seat Track
• Motor - Seat Height (Front)
• Motor - Steering Column Adjust
