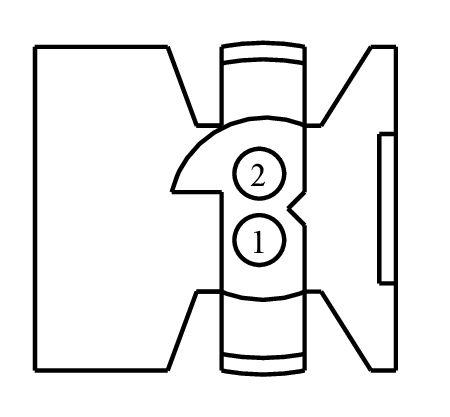

Connector End View (C3066) - SAFETY BELT ANCHOR PRETENSIONER, DRIVER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3065	SAFETY BELT ANCHOR PRETENSIONER, DRIVER	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR170 (GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) +	NA
2	RR170 (BN-BU)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1222

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BEA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Pretensioner - Seat Belt (Driver)
• Squib - Airbag (Passenger)
