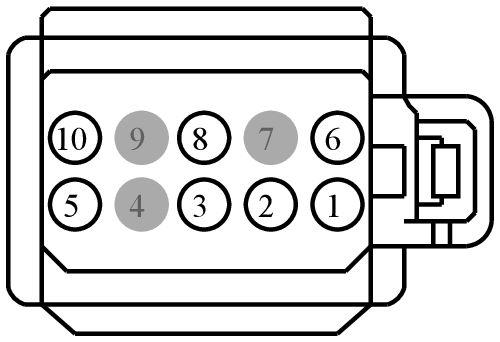

Connector End View (C3007) - STEERING WHEEL SWITCH, RIGHT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2999	STEERING WHEEL SWITCH, RIGHT	BK	14672	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RRH02 (PK)	20	GROUND - INSTRUMENT PANEL STRUCTURE	N/A
2	LX104 (OG)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
3	LX103 (GN)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
4	*	*	Not Used	N/A
5	RX102 (BU-RD)	20	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)	N/A
6	VLN04 (BN)	20	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
7	*	*	Not Used	N/A
8	LX105 (GN-RD)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
9	*	*	Not Used	N/A
10	LX106 (GY-OG)	20	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
