Connector End View (C402A) - REAR WINDOW DEFROST GRID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C402A	REAR WINDOW DEFROST GRID	LT GY	14A005	18C618	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-BCA	EU2Z-14421-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CRD06 (BN-YE)	12	RELAY - HEATER REAR WINDOW	97BG-14421-BCA
2	*	*	Not Used	N/A

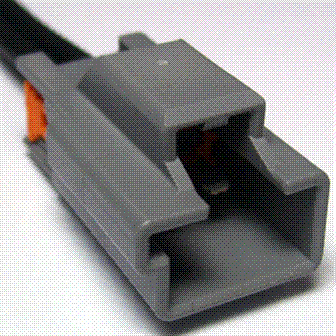

Available Pigtail Kits

Pigtail Kit Part Number WPT-1149

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-PB

Gauge:

10

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Element - Heated Windshield
• Motor - Convertible Top
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Rear
• Motor - Seat Lumbar
• Switch - Heater A/C Blower (Rear)
• Terminal - Rear Window Defroster Grid
