Connector End View (C396) - SPEAKER, RIGHT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C396	SPEAKER, RIGHT REAR	BN	14A005	18808	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-AEA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME12 (BN-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) +	97BG-14474-AEA
2	RME12 (BN-BU)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) -	97BG-14474-AEA

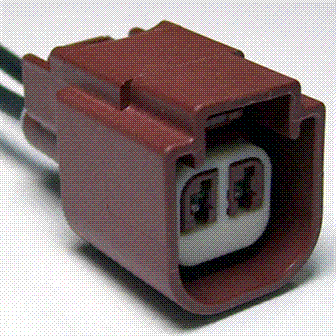

Available Pigtail Kits

Pigtail Kit Part Number WPT-1231

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DVAB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Heater - Fuel
• Sensor - Oil Temperature
