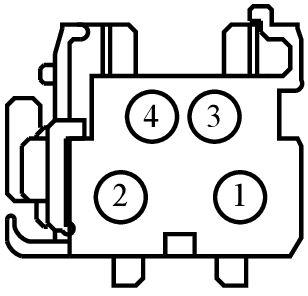

Connector End View (C267) - STEERING COLUMN TILTING MOTOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C267 | STEERING COLUMN TILTING MOTOR | GY | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1C1T-14474-BA | Not Available | |
| 6T1T-14474-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPP05 (WH-VT) | 20 | CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON | 1C1T-14474-BA | ||||
| 2 | CPP04 (GY) | 20 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP | 1C1T-14474-BA | ||||
| 3 | RPP06 (GN) | 22 | CTRL MOD. - SENSOR ADJUSTABLE PEDAL - | 6T1T-14474-AA | ||||
| 4 | VPP08 (WH) | 20 | SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE) | 6T1T-14474-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1501
Service Part Number:
AU2Z-14S411-RB
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Motor - Power Seat Track
- Motor - Seat Height (Front)
- Motor - Seat Height (Rear)
- Motor - Seat Recline
- Motor - Steering Column Adjust
Pigtail Kit Part Number WPT-1072
Service Part Number:
AU2Z-14S411-RA
Gauge:
14 18
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Motor - Power Seat Track
- Motor - Seat Height (Front)
- Motor - Steering Column Adjust
