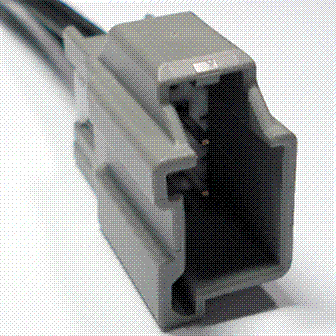

Connector End View (C266) - FOOTWELL LAMP, RIGHT FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C266	FOOTWELL LAMP, RIGHT FRONT	LT GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-AAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN48 (YE-OG)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED RED	97BG-14421-AAB
2	VLN49 (YE-GN)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED GREEN	97BG-14421-AAB
3	VLN50 (YE-BU)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED BLUE	97BG-14421-AAB
4	RLN44 (BN)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED -	97BG-14421-AAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Lamp - Ash Tray
• Lamp - Courtesy - Footwell
• Module - Remote Keyless Entry
• Motor - Heater/AC Blower (Auxiliary)
• Radio - Amplifier
• Switch - Convertable Top
