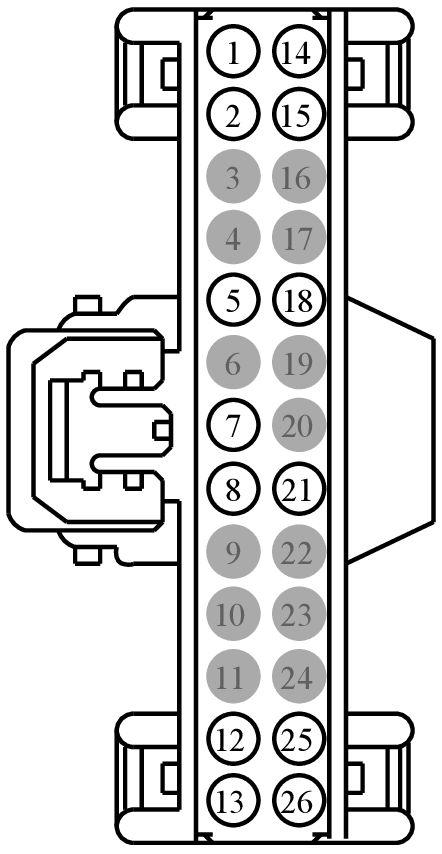

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C220	INSTRUMENT PANEL CLUSTER (IPC)	BK	14401	10849	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-XA	DU2Z-14474-CA	0.64
8U5T-14474-BA	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RMC33 (WH)	26	CTRL MOD. - SENSOR FUEL LEVEL 2	9U5T-14474-XA
2	RMC32 (GN-BU)	22	CTRL MOD. - SENSOR FUEL LEVEL	8U5T-14474-BA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	GD374 (BK-WH)	20	GROUND - TUNNEL (BC3T)	8U5T-14474-BA
6	*	*	Not Used	N/A
7	CET52 (GN)	22	SWITCH - TRANSMISSION PARK DETECT	8U5T-14474-BA
8	CMC20 (VT)	26	SWITCH - LOW LEVEL WASHER FLUID	9U5T-14474-XA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	VDB04 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	9U5T-14474-XA
13	VDB05 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	9U5T-14474-XA
14	VMC23 (GN)	26	SENSOR - FUEL LEVEL 2 (FLI)	9U5T-14474-XA
15	VMC11 (YE-VT)	22	SENSOR - FUEL LEVEL (FLI)	8U5T-14474-BA
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	CCA47 (BU-WH)	22	SWITCH - ELECTRONIC STABILITY CONTROL DISABLE	8U5T-14474-BA
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	SBP23 (WH-RD)	22	FUSE - 23 OR CIRCUIT BREAKER	8U5T-14474-BA
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH	8U5T-14474-BA
26	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW	8U5T-14474-BA
