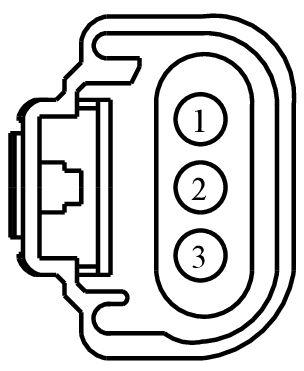

Connector End View (C149) - BRAKE BOOSTER VACUUM SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C149	BRAKE BOOSTER VACUUM SENSOR	14290			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-VA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LCA37 (YE-OG)	20	CTRL MOD. - SENSOR BRAKE VACUUM +	7C3T-14474-VA
2	RCA36 (GY-OG)	20	CTRL MOD. - BRAKE BOOSTER CONTROL VALVE -	7C3T-14474-VA
3	VCA36 (YE-GN)	20	CTRL MOD. - BRAKE BOOSTER CONTROL VALVE +	7C3T-14474-VA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1500

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-AC

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Lamp - Headlamp - High/Low Beam
• Sensor - Brake Booster Travel
• Sensor - Brake Pressure
• Sensor - Brake Vacuum
• Sensor - Delta Pressure Feedback EGR
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Occupant Classification
