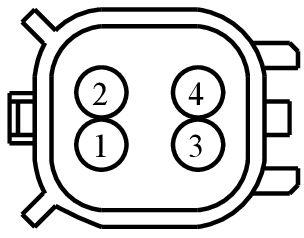

Connector End View (C142) - HEATED OXYGEN SENSOR (HO2S) #12

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C142	HEATED OXYGEN SENSOR (HO2S) #12	GY	14B060	9G444	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB67 (BK)	18	FUSE - 67 OR CIRCUIT BREAKER	N/A
2	CE233 (WH)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)	N/A
3	RE242 (VT)	18	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON	N/A
4	VE731 (YE)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1453

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-AA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Catalyst Monitor
• Sensor - O2 (HEGO/ EGO)
