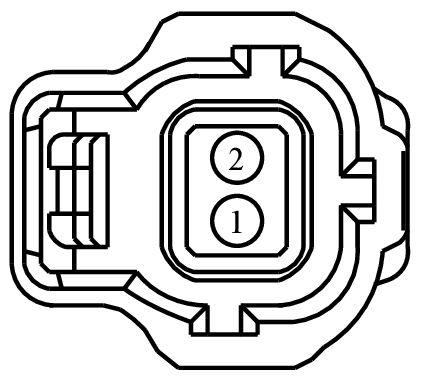

Connector End View (C128) - MASS AIRFLOW/INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C128	MASS AIRFLOW/INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR	BK	14290	14A464	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-RA|7S4T-14474-AA	Not Available
3F2T-14474-RA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)	3F2T-14474-RA|7S4T-14474-AA
2	RE407 (YE-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN)	3F2T-14474-RA

Available Pigtail Kits

Pigtail Kit Part Number WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Resistor - Daytime Running Lamp (DRL)
• Sensor - Air Charge Temperature
• Sensor - Brake Pressure
• Solenoid - Canister Vent
• Switch - Brake Pressure
