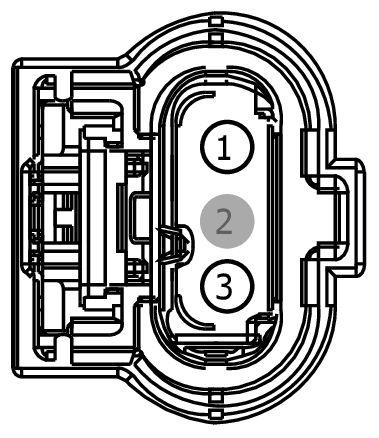

Connector End View (C115) - COIL ON PLUG (COP) 5

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C115	COIL ON PLUG (COP) 5	BK	12C508	12A366	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE307 (WH-BN)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP5D)	N/A
2	*	*	Not Used	N/A
3	CBK04 (VT)	16	FUSE - 4 OR CIRCUIT BREAKER (VPWR)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1502

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-JA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
