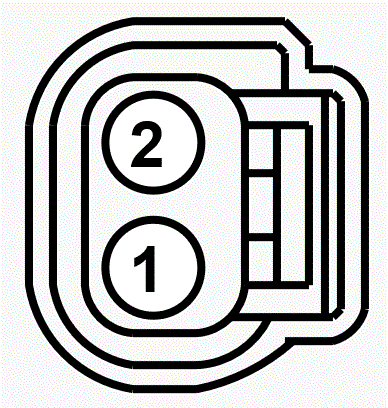

Connector End View (C101) - CRANKSHAFT POSITION (CKP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C101	CRANKSHAFT POSITION (CKP) SENSOR	BK	12C508	6C315	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE-135 (GN-BN	18	SCTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-) WITCH - OIL PRESSURE	N/A
2	VE711 (YE-VT)	18	SENSOR - CRANKSHAFT POSITION (CKP+)

Available Pigtail Kits

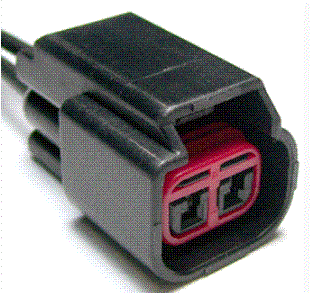

Pigtail Kit Part Number WPT-986

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SLB

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Coil - Ignition
• Lamp - License
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
