Wipers And Washers

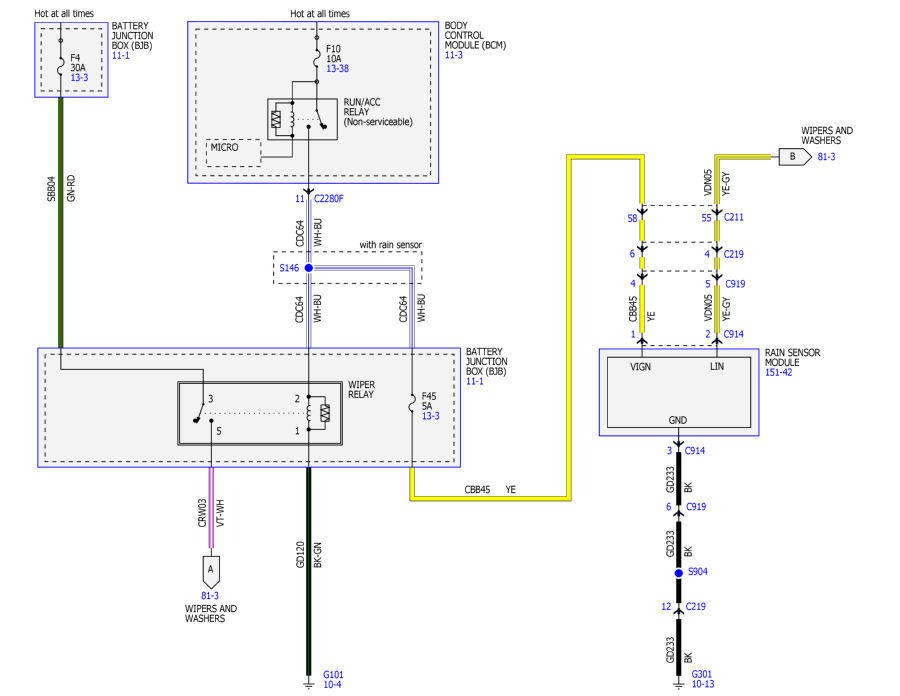

Fig 1: Wipers and Washers Wiring Diagram (1 Of 3)
GFDWR31271Courtesy of FORD MOTOR COMPANY

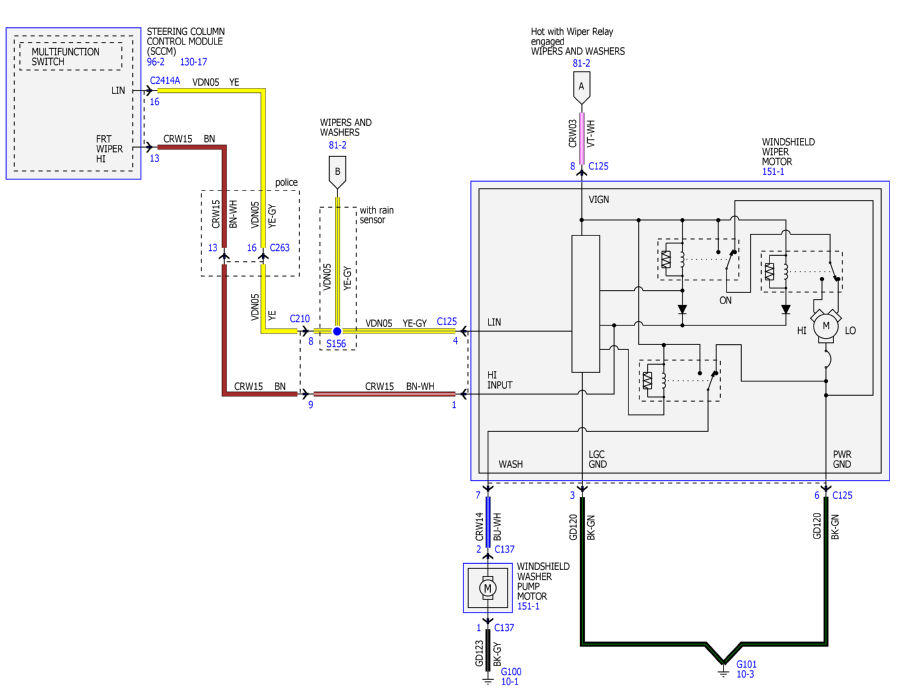

Fig 2: Wipers and Washers Wiring Diagram (2 Of 3)
GFDWR31272Courtesy of FORD MOTOR COMPANY

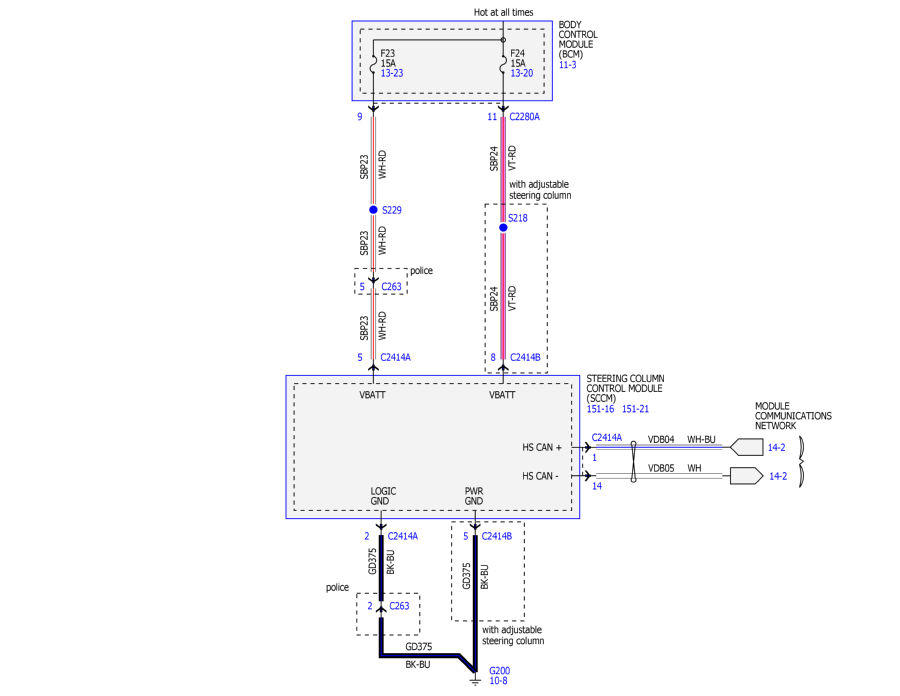

Fig 3: Wipers and Washers Wiring Diagram (3 Of 3)
GFDWR31273Courtesy of FORD MOTOR COMPANY
