Vehicle Dynamic Systems

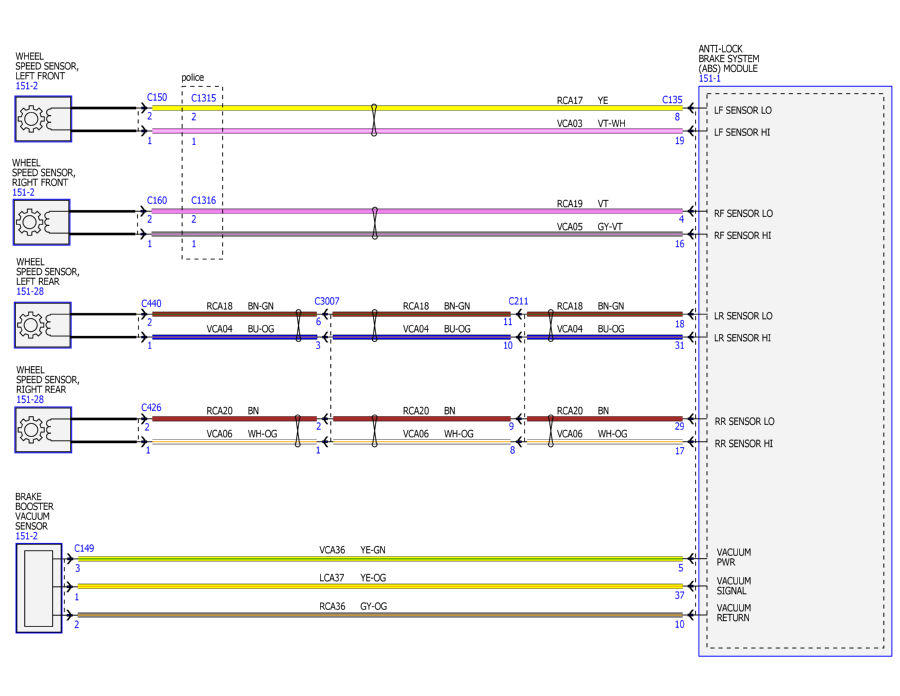

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 Of 3)
GFDWR31265Courtesy of FORD MOTOR COMPANY

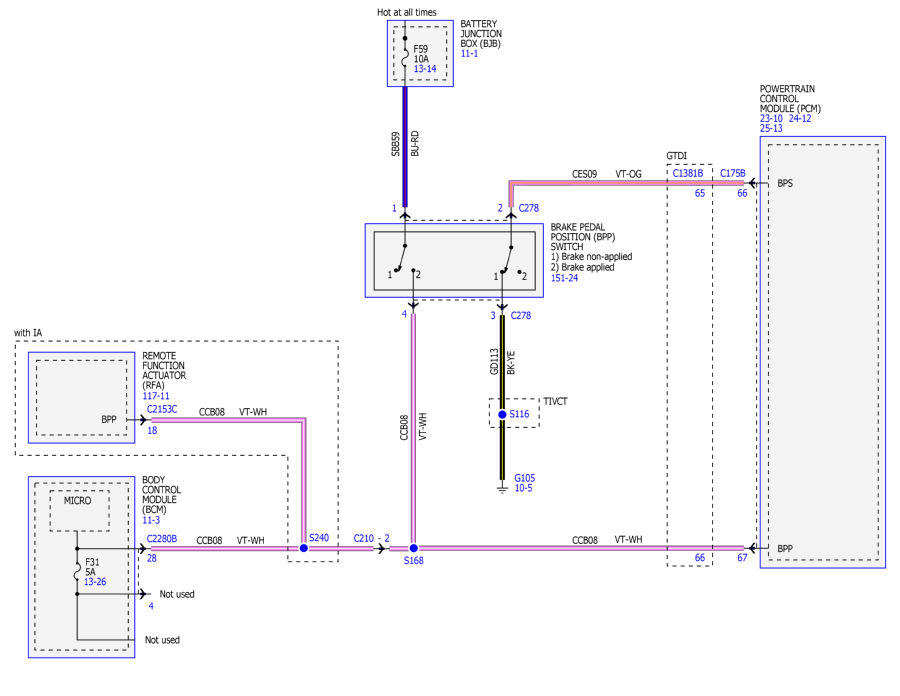

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 Of 3)
GFDWR31266Courtesy of FORD MOTOR COMPANY

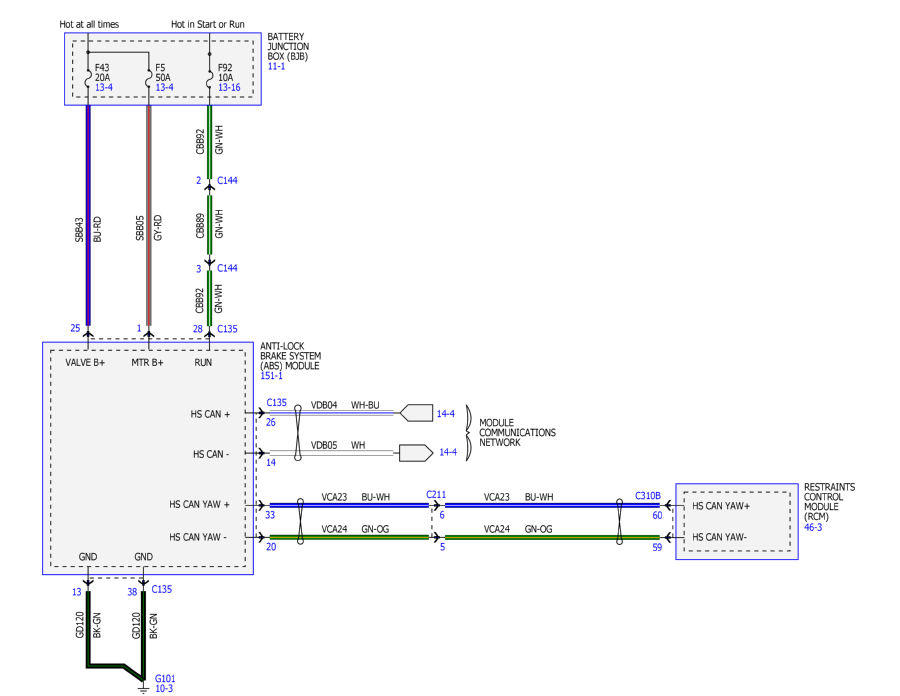

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 Of 3)
GFDWR31267Courtesy of FORD MOTOR COMPANY
