Turn Signal/Stop/Hazard Lamps

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 6)
GFDWR31259Courtesy of FORD MOTOR COMPANY
Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram (2 Of 6)
GFDWR31260Courtesy of FORD MOTOR COMPANY
Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram (3 Of 6)
GFDWR31261Courtesy of FORD MOTOR COMPANY

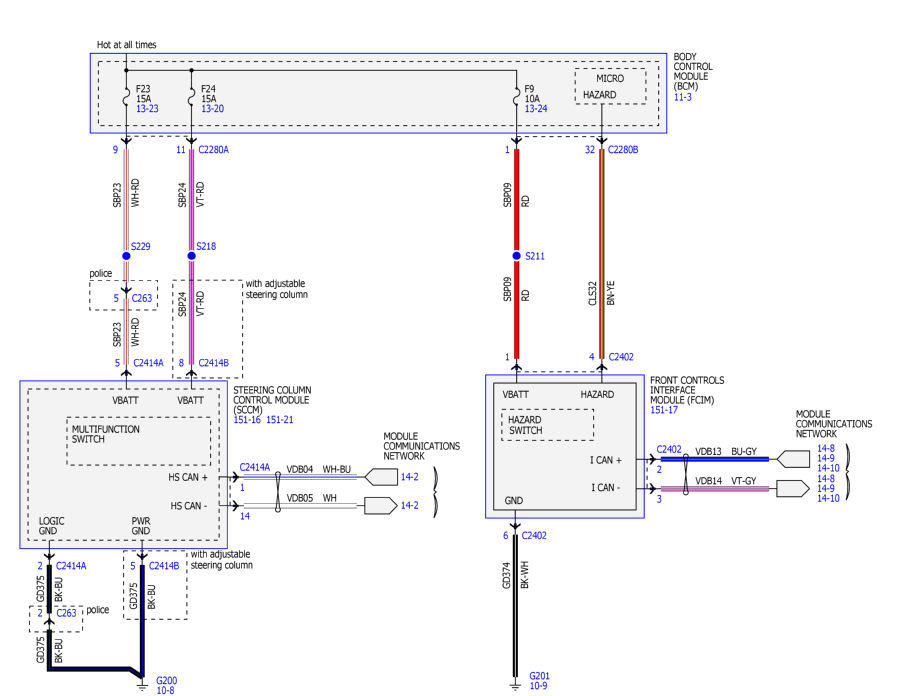

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram (4 Of 6)
GFDWR31262Courtesy of FORD MOTOR COMPANY
Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagram (5 Of 6)
GFDWR31263Courtesy of FORD MOTOR COMPANY
Fig 6: Turn Signal/Stop/Hazard Lamps Wiring Diagram (6 Of 6)
GFDWR31264Courtesy of FORD MOTOR COMPANY
