Transmission Controls - 6 Speed

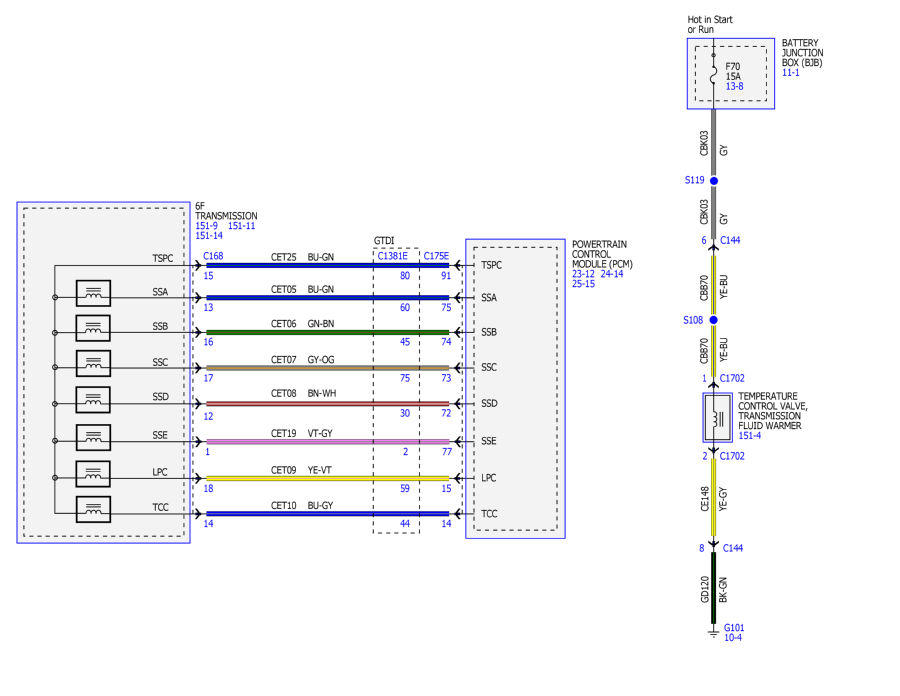

Fig 1: Transmission Controls - 6 Speed Wiring Diagram (1 Of 3)
GFDWR31255Courtesy of FORD MOTOR COMPANY

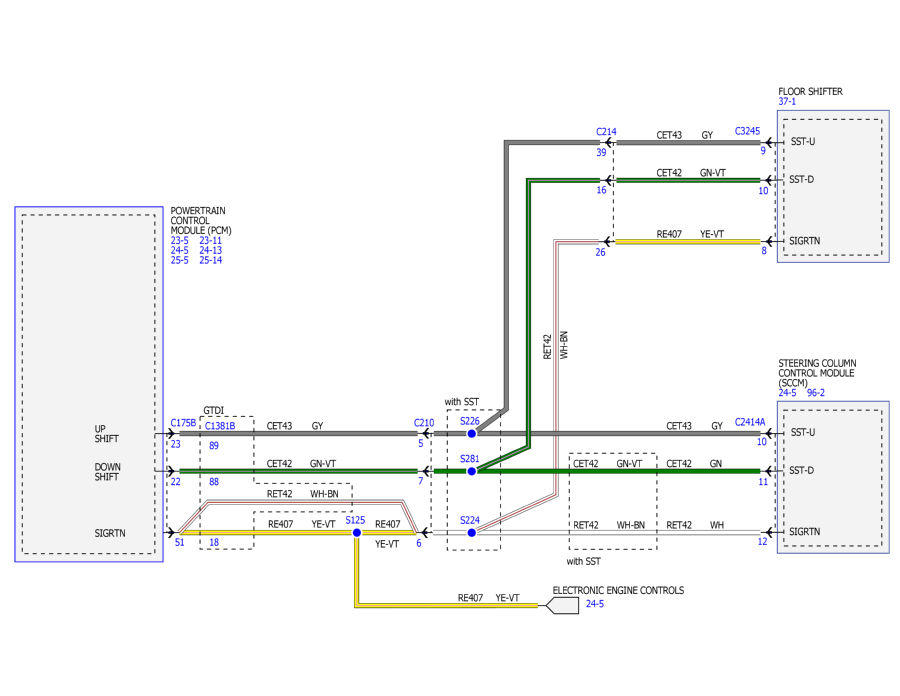

Fig 2: Transmission Controls - 6 Speed Wiring Diagram (2 Of 3)
GFDWR31256Courtesy of FORD MOTOR COMPANY

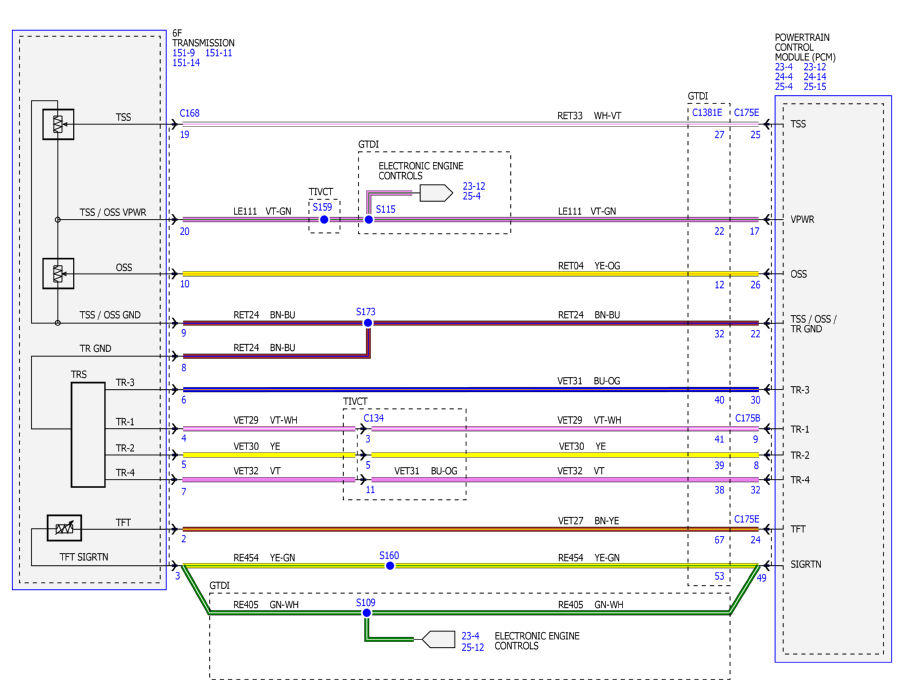

Fig 3: Transmission Controls - 6 Speed Wiring Diagram (3 Of 3)
GFDWR31257Courtesy of FORD MOTOR COMPANY
