Supplemental Restraint System

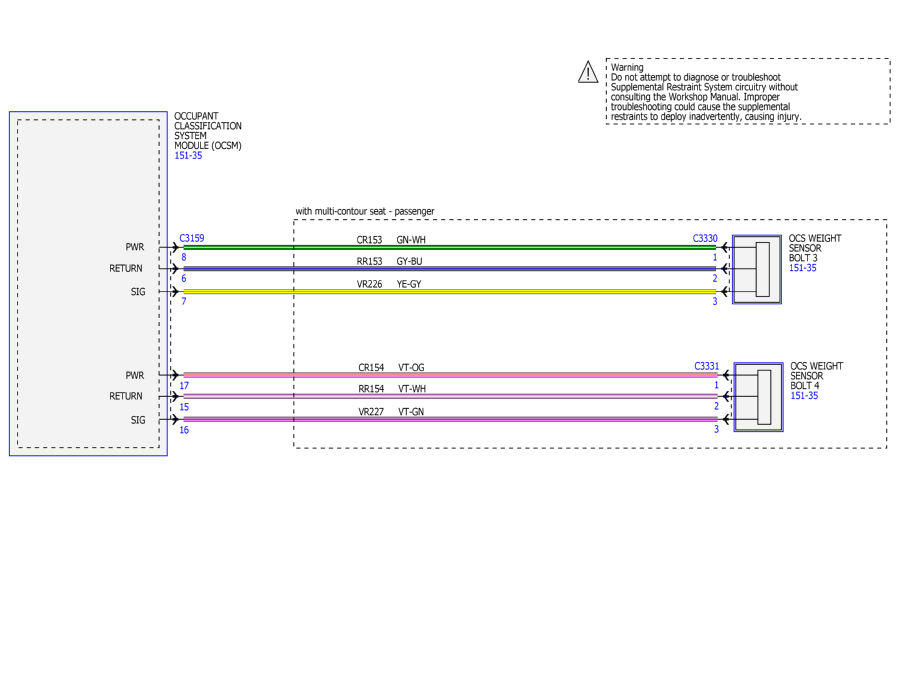

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 9)
GFDWR31245Courtesy of FORD MOTOR COMPANY

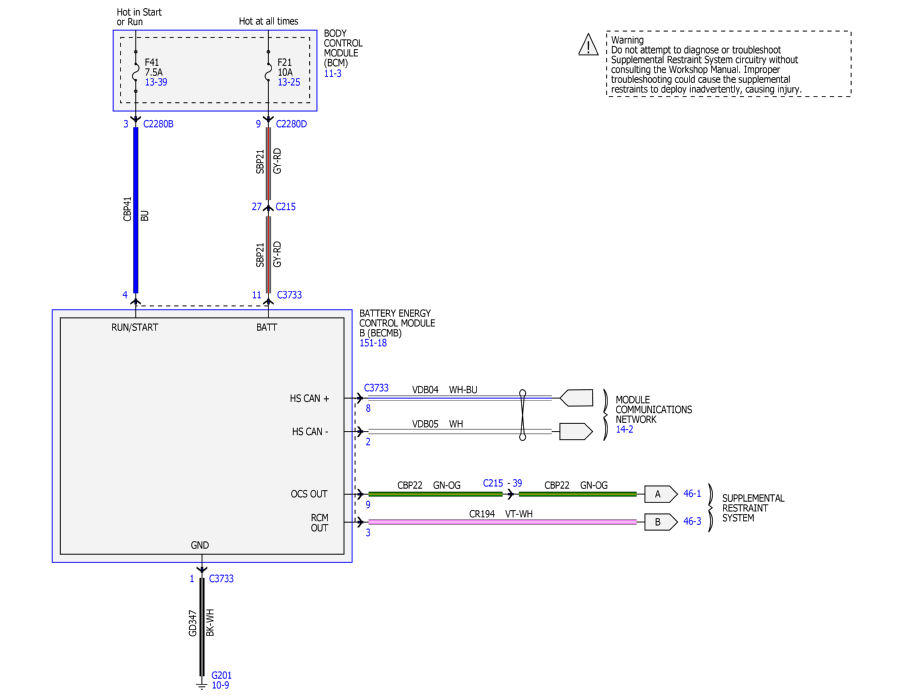

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 9)
GFDWR31246Courtesy of FORD MOTOR COMPANY

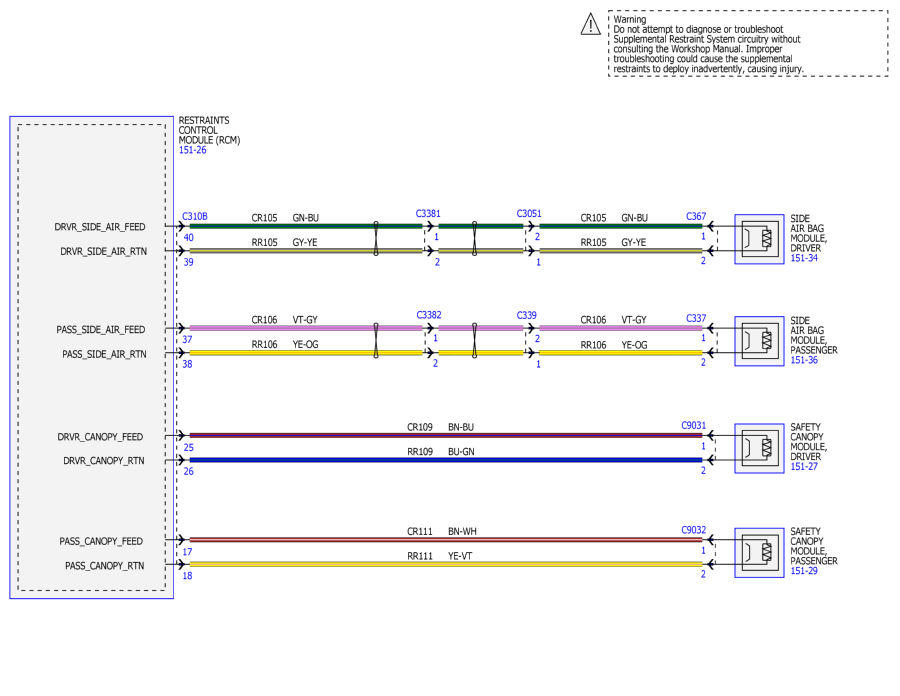

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 9)
GFDWR31247Courtesy of FORD MOTOR COMPANY
Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 9)
GFDWR31248Courtesy of FORD MOTOR COMPANY

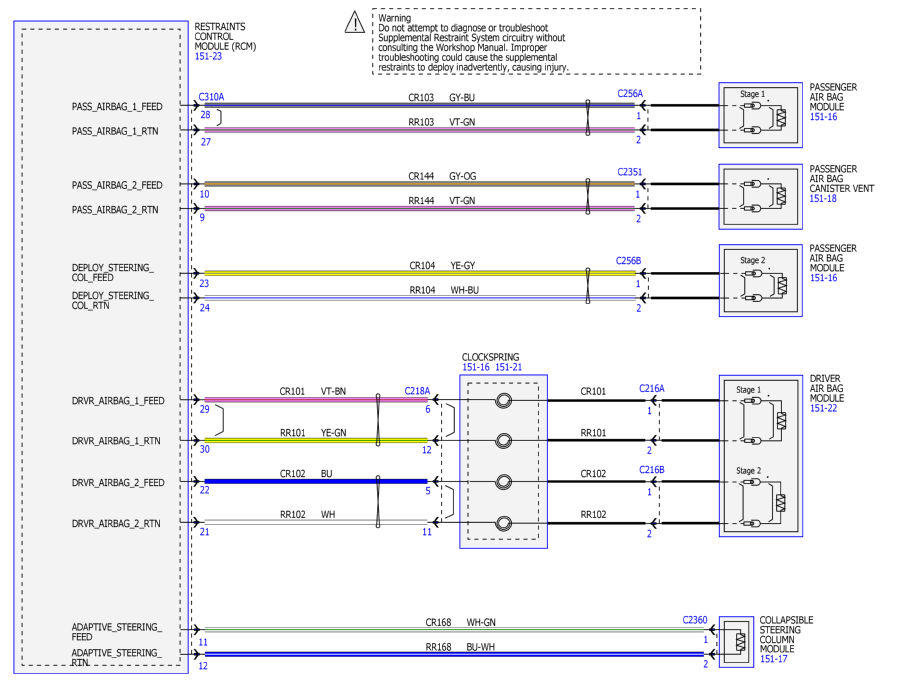

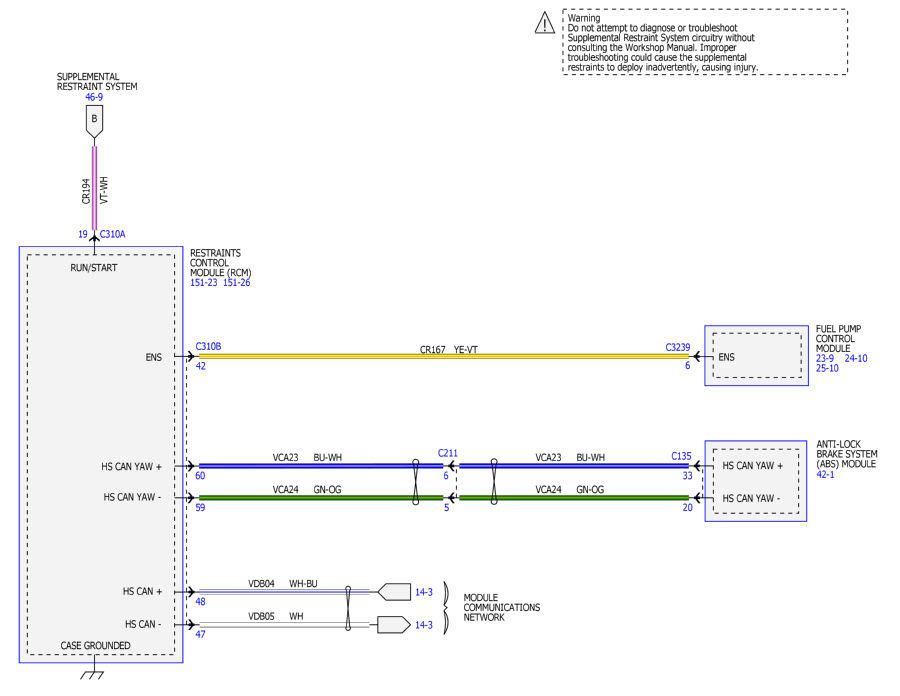

Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 9)
GFDWR31249Courtesy of FORD MOTOR COMPANY

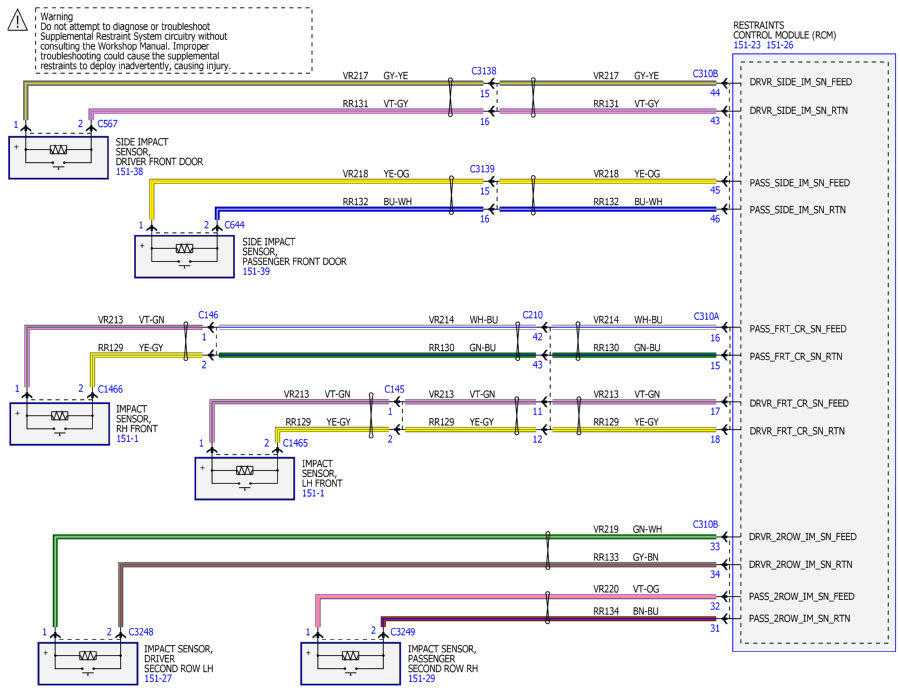

Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 9)
GFDWR31250Courtesy of FORD MOTOR COMPANY

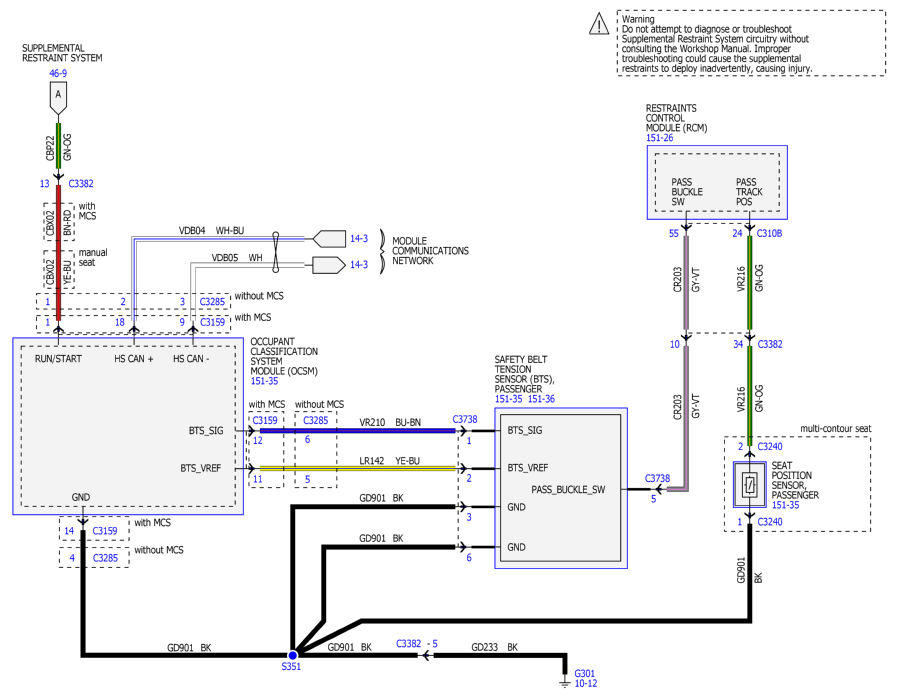

Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 9)
GFDWR31251Courtesy of FORD MOTOR COMPANY

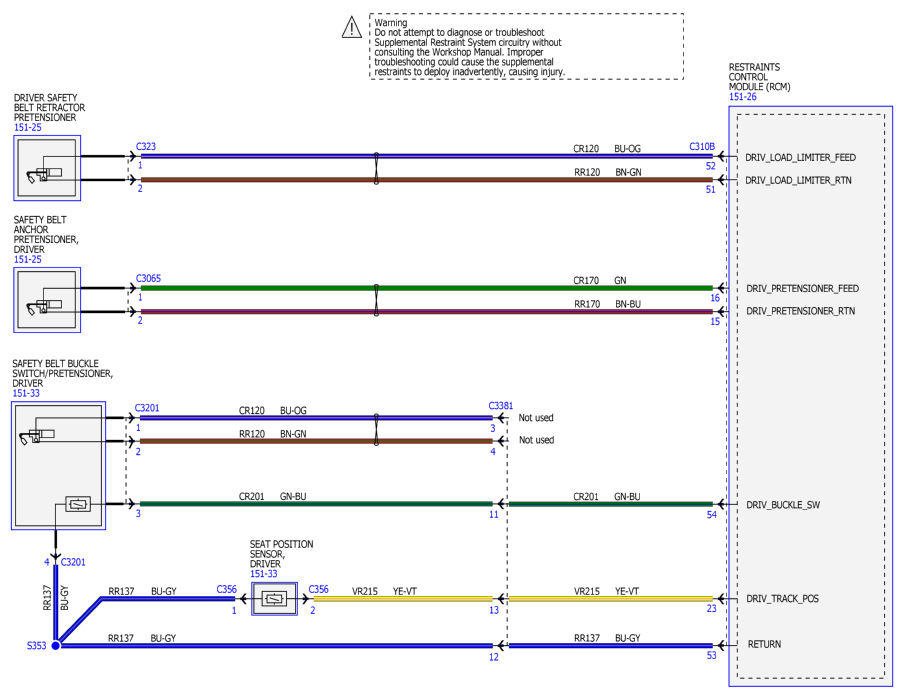

Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 9)
GFDWR31252Courtesy of FORD MOTOR COMPANY

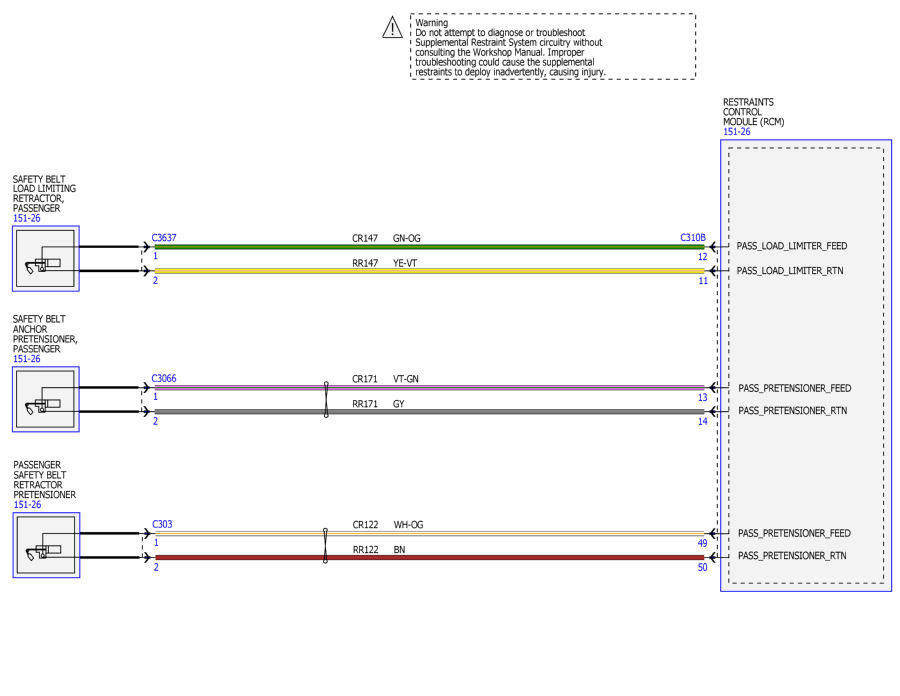

Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 9)
GFDWR31253Courtesy of FORD MOTOR COMPANY
