Power Windows

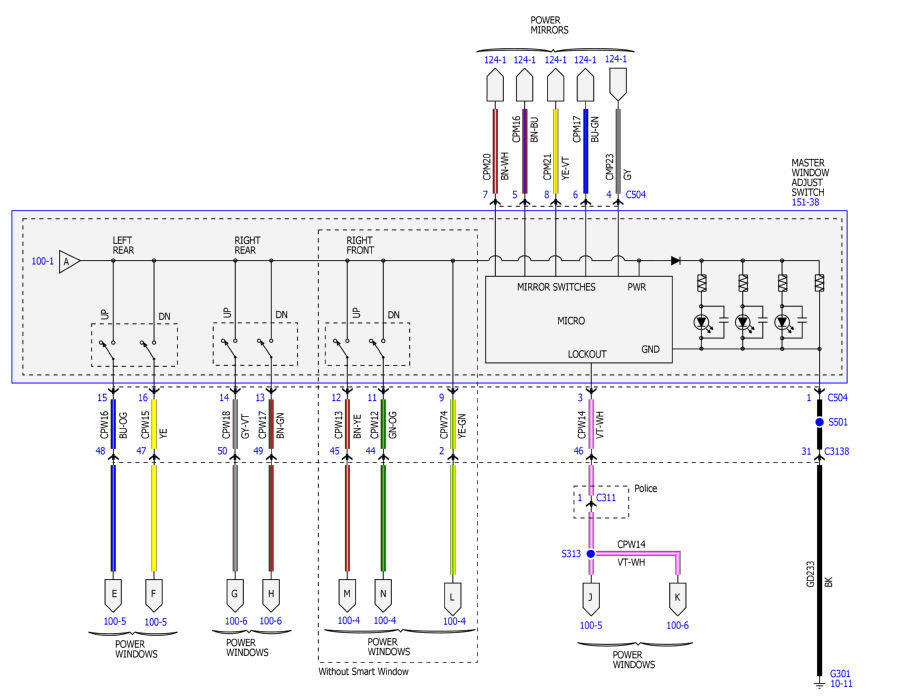

Fig 1: Power Windows Wiring Diagram (1 Of 6)
GFDWR31220Courtesy of FORD MOTOR COMPANY

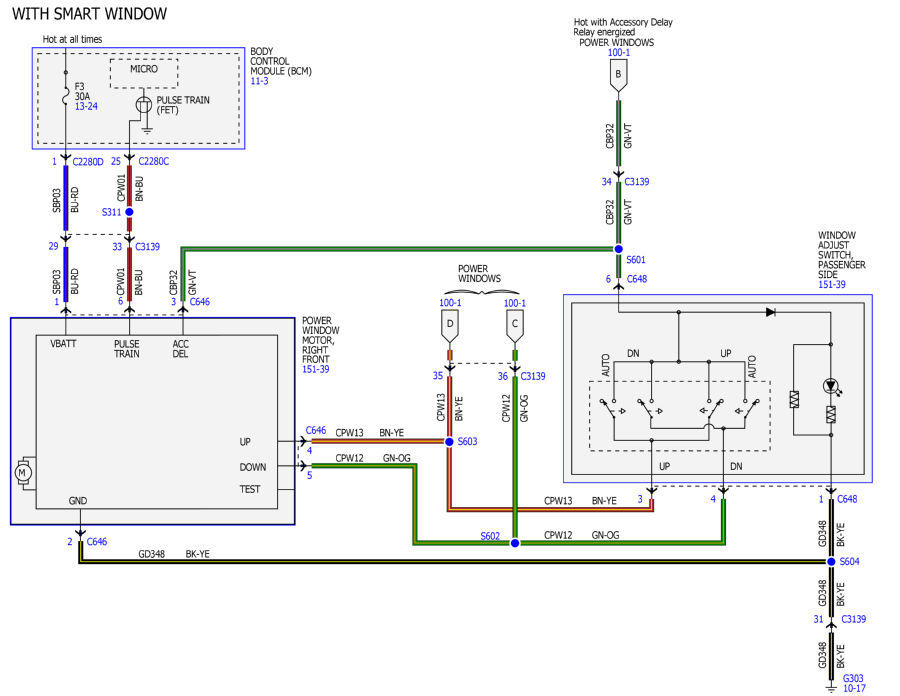

Fig 2: Power Windows Wiring Diagram (2 Of 6)
GFDWR31221Courtesy of FORD MOTOR COMPANY

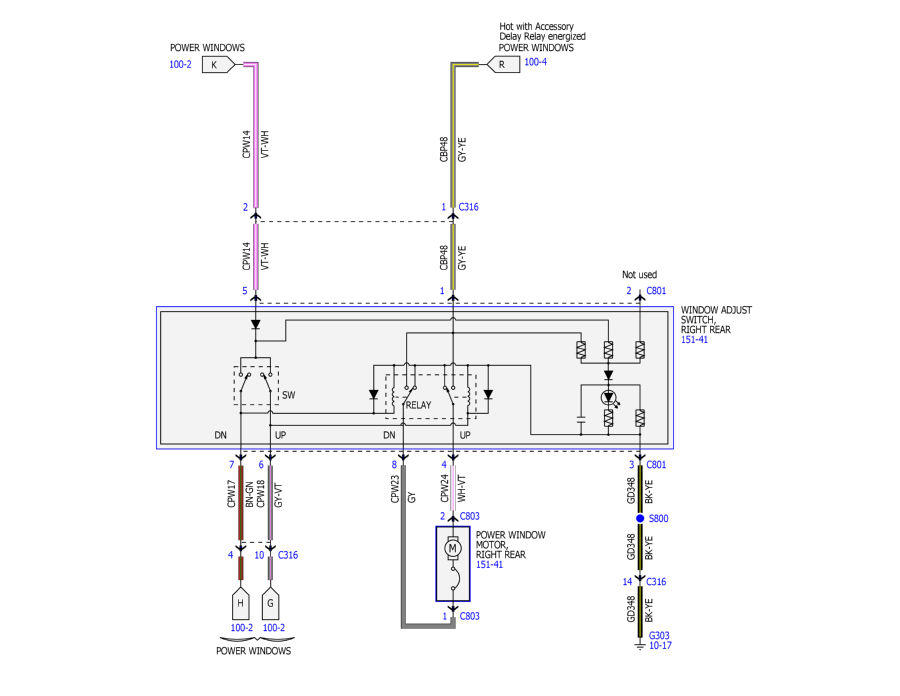

Fig 3: Power Windows Wiring Diagram (3 Of 6)
GFDWR31222Courtesy of FORD MOTOR COMPANY

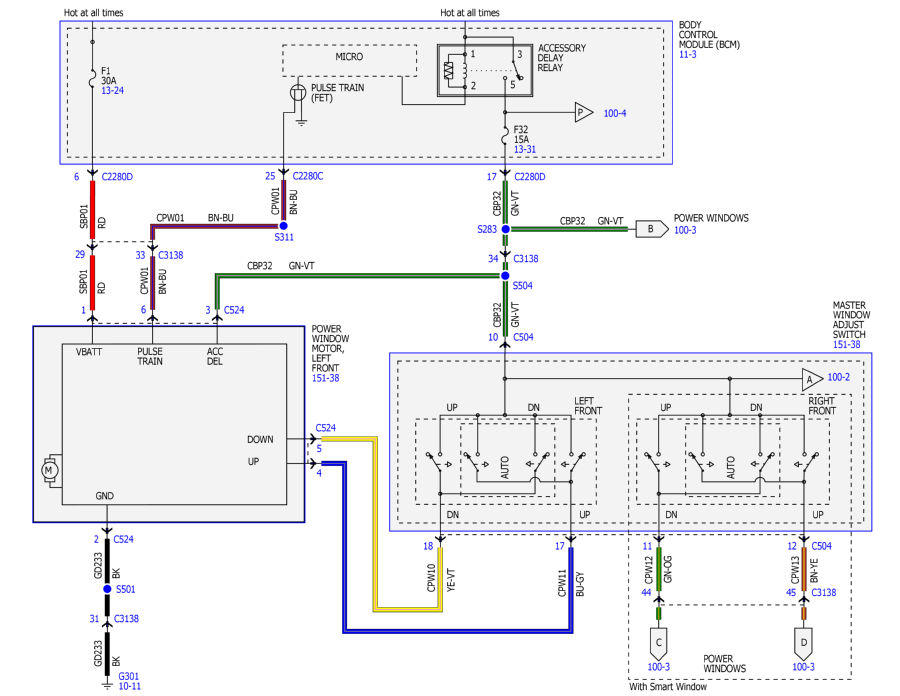

Fig 4: Power Windows Wiring Diagram (4 Of 6)
GFDWR31223Courtesy of FORD MOTOR COMPANY

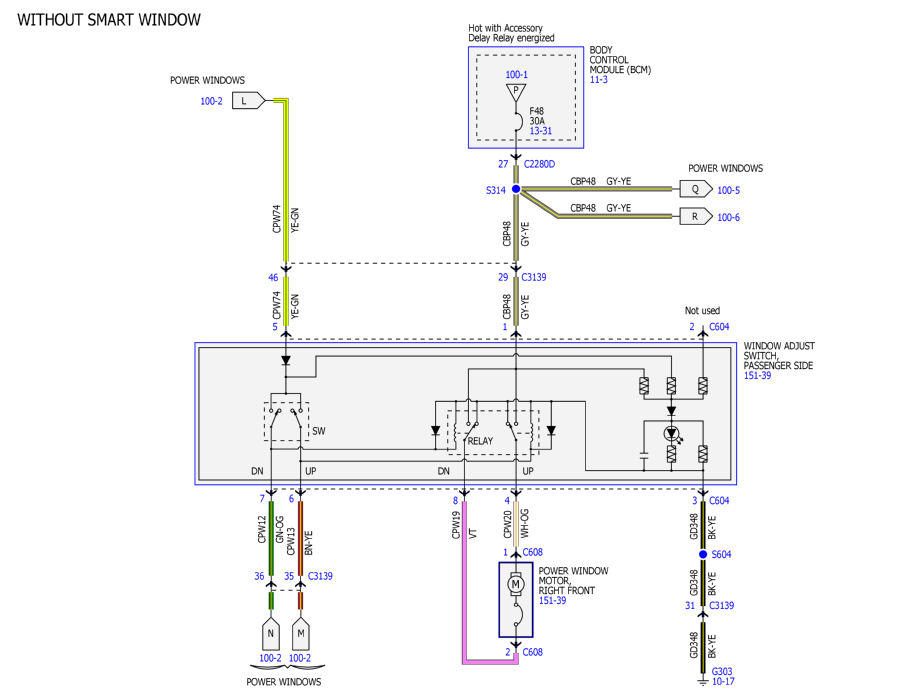

Fig 5: Power Windows Wiring Diagram (5 Of 6)
GFDWR31224Courtesy of FORD MOTOR COMPANY

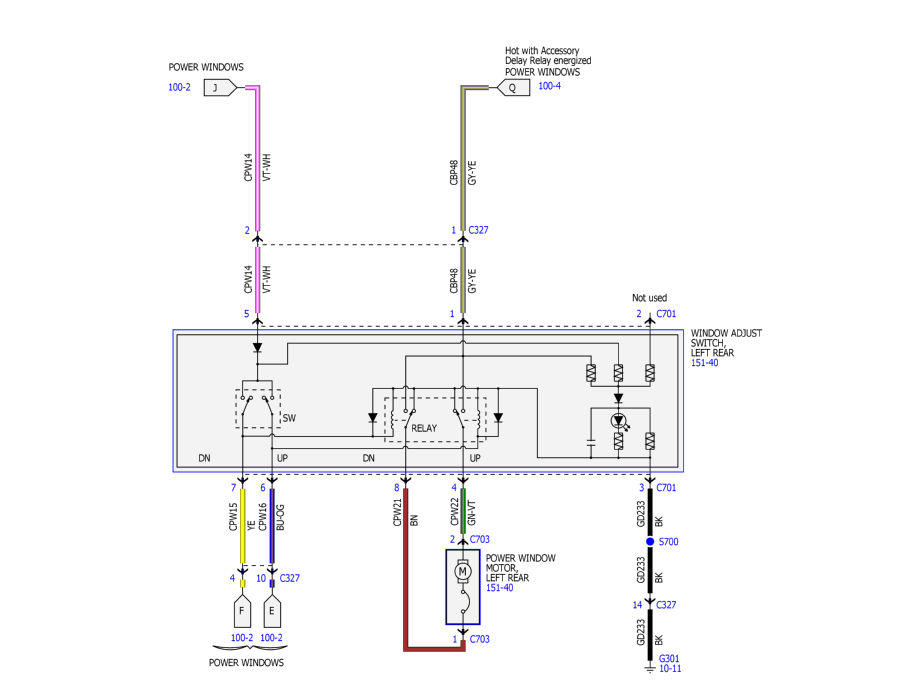

Fig 6: Power Windows Wiring Diagram (6 Of 6)
GFDWR31225Courtesy of FORD MOTOR COMPANY
