Power Mirrors

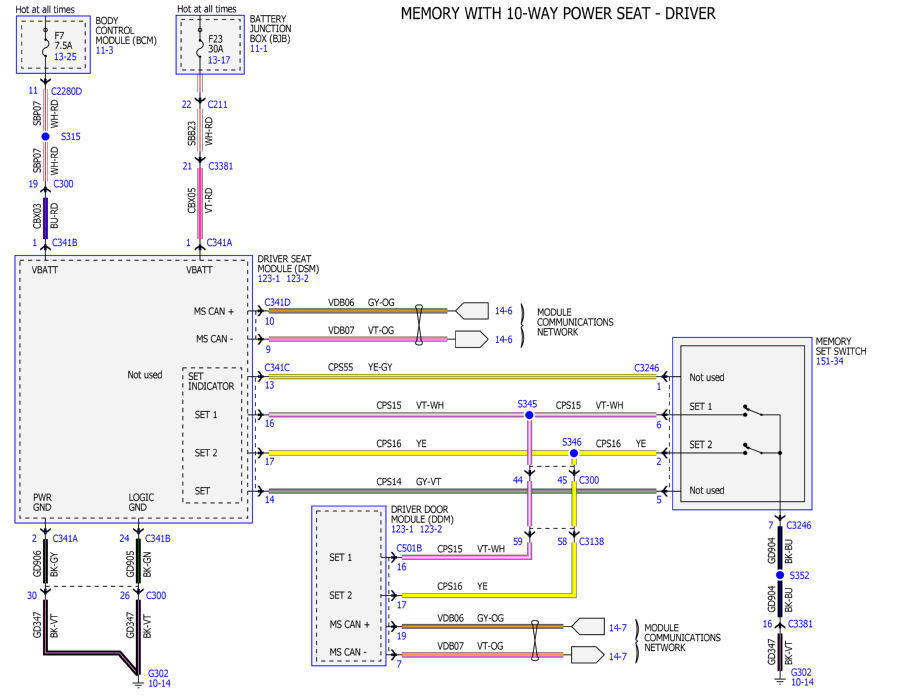

Fig 1: Power Mirrors Wiring Diagram (1 Of 10)
GFDWR31202Courtesy of FORD MOTOR COMPANY

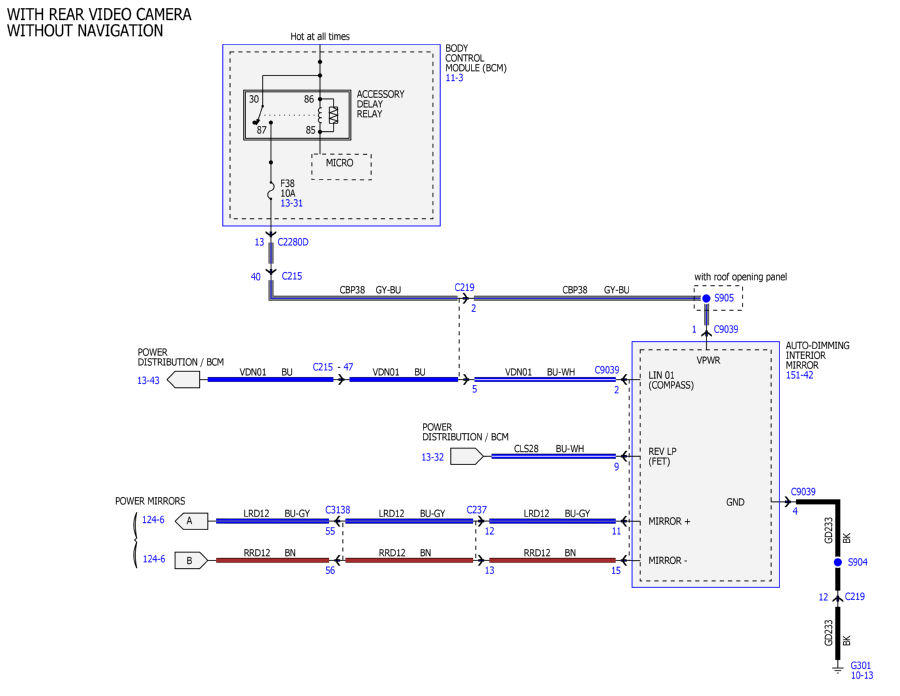

Fig 2: Power Mirrors Wiring Diagram (2 Of 10)
GFDWR31203Courtesy of FORD MOTOR COMPANY

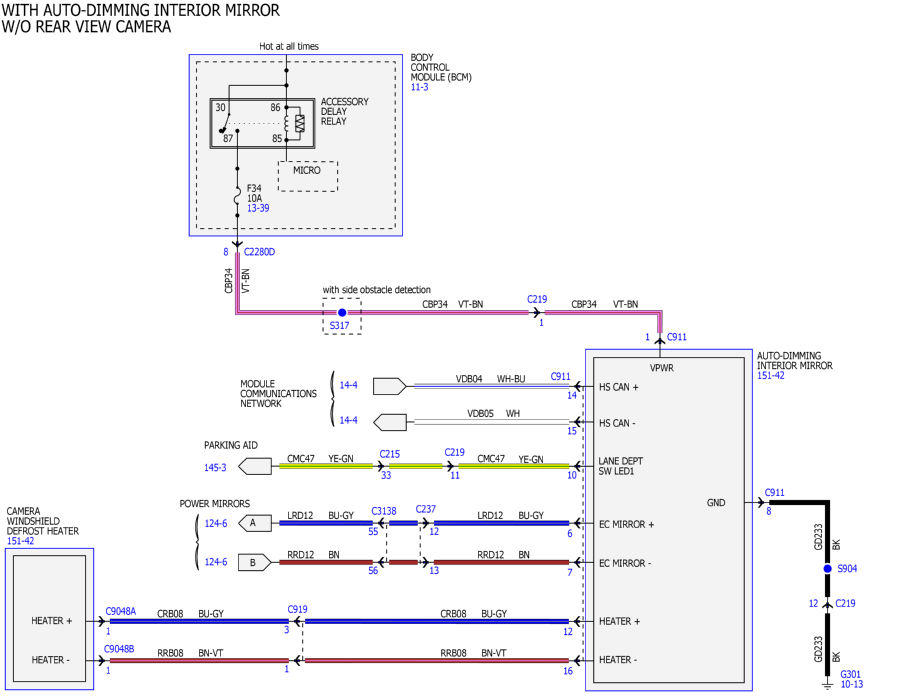

Fig 3: Power Mirrors Wiring Diagram (3 Of 10)
GFDWR31204Courtesy of FORD MOTOR COMPANY

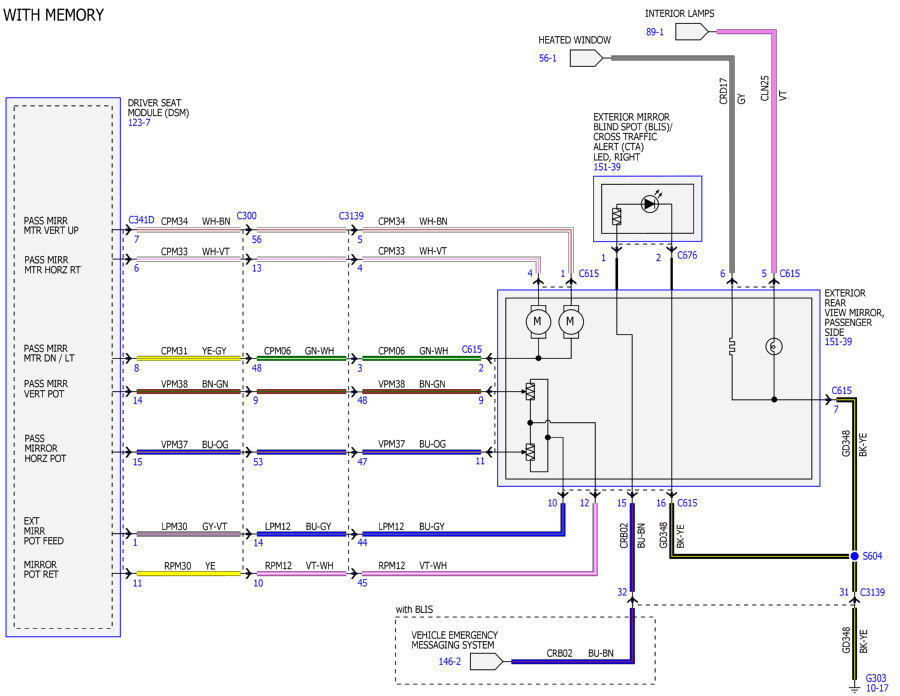

Fig 4: Power Mirrors Wiring Diagram (4 Of 10)
GFDWR31205Courtesy of FORD MOTOR COMPANY

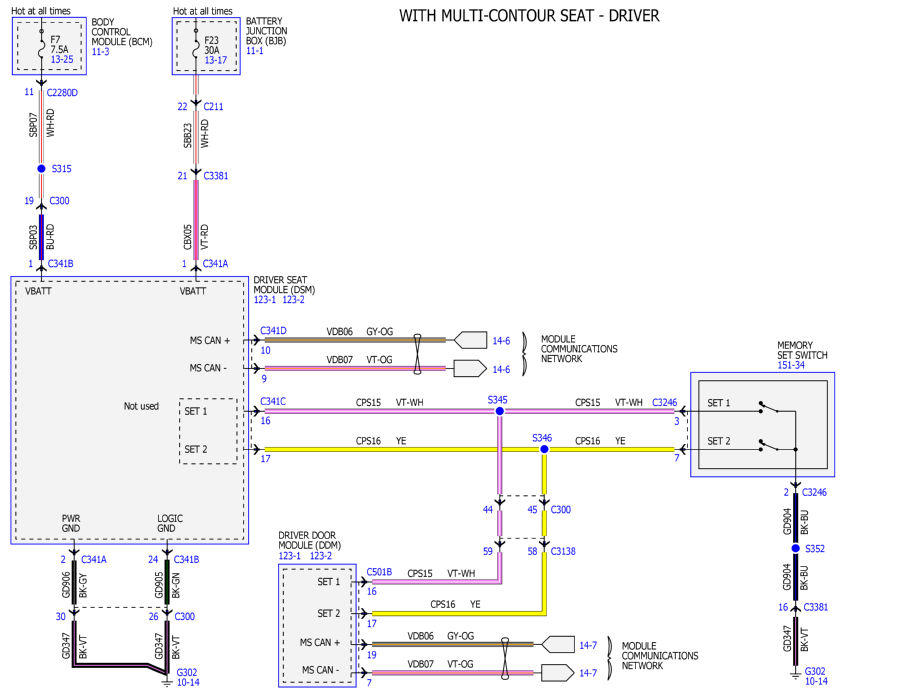

Fig 5: Power Mirrors Wiring Diagram (5 Of 10)
GFDWR31206Courtesy of FORD MOTOR COMPANY

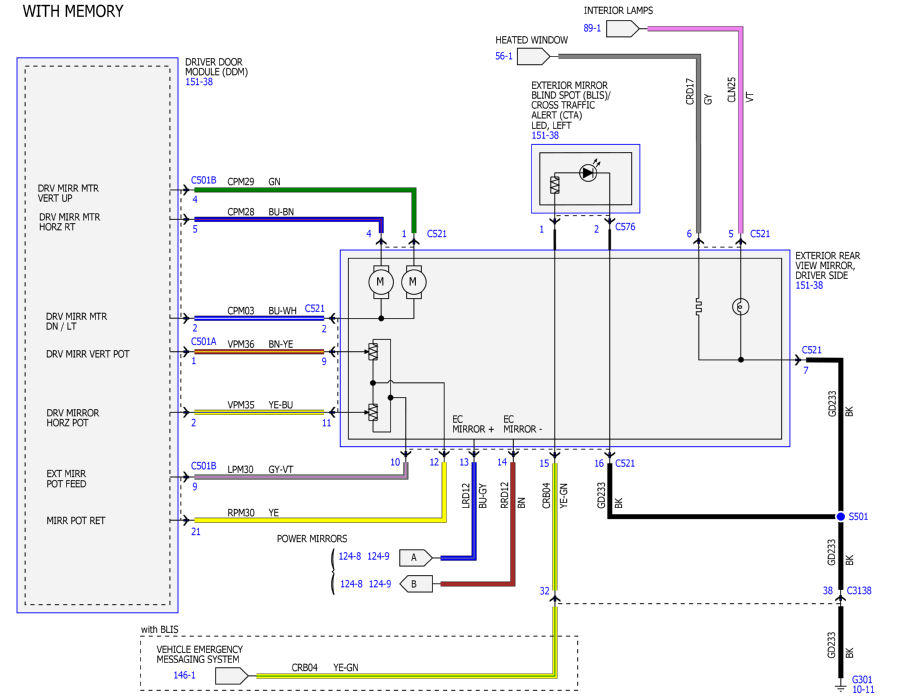

Fig 6: Power Mirrors Wiring Diagram (6 Of 10)
GFDWR31207Courtesy of FORD MOTOR COMPANY

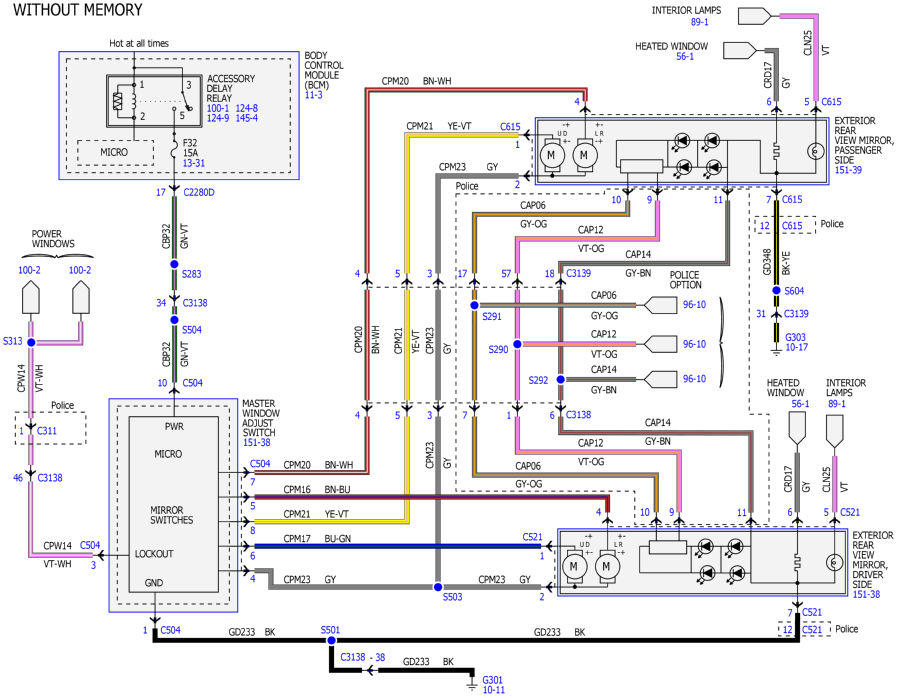

Fig 7: Power Mirrors Wiring Diagram (7 Of 10)
GFDWR31208Courtesy of FORD MOTOR COMPANY

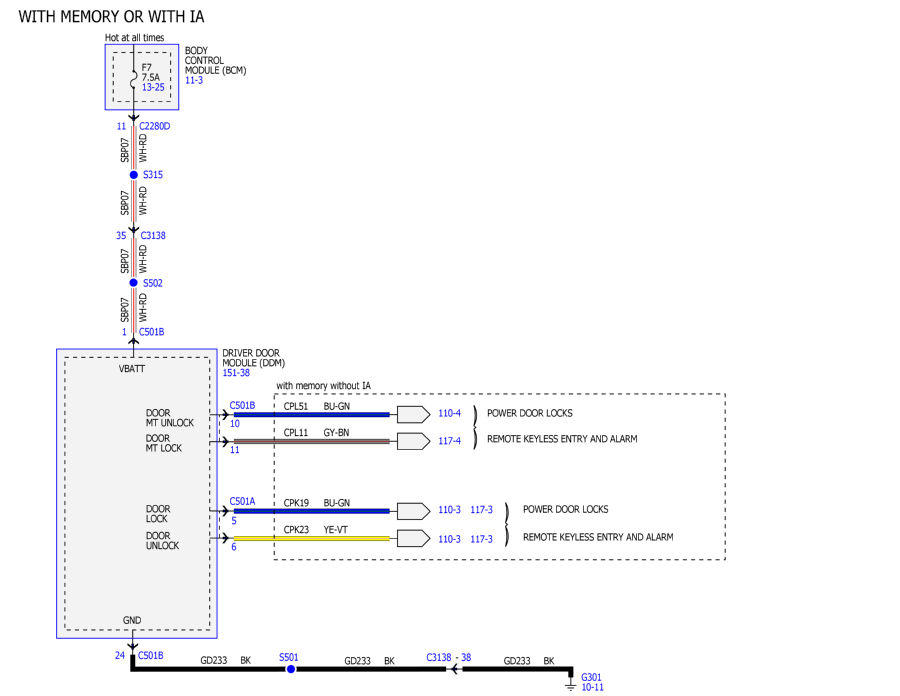

Fig 8: Power Mirrors Wiring Diagram (8 Of 10)
GFDWR31209Courtesy of FORD MOTOR COMPANY

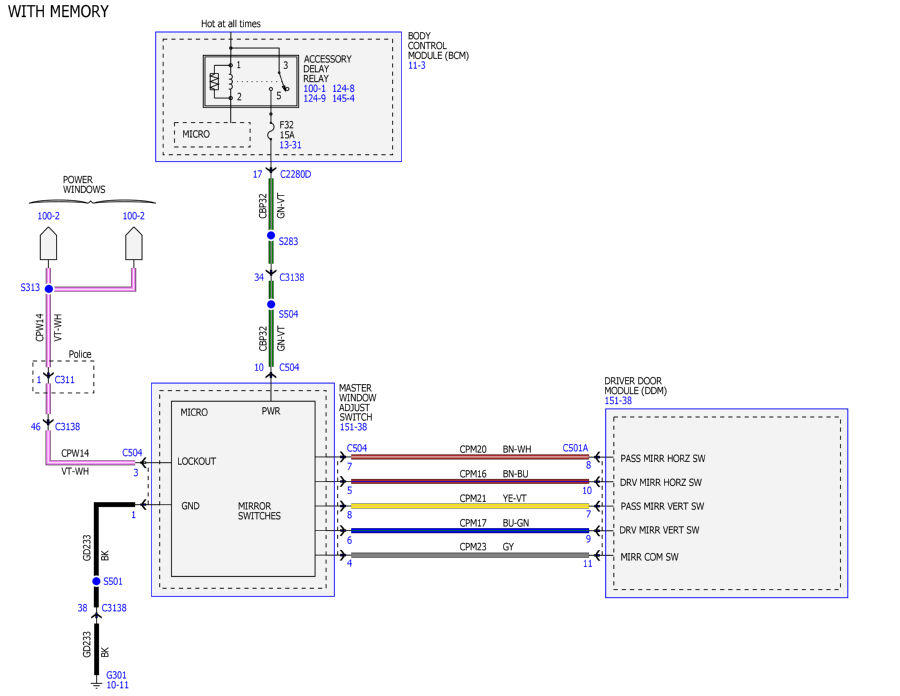

Fig 9: Power Mirrors Wiring Diagram (9 Of 10)
GFDWR31210Courtesy of FORD MOTOR COMPANY
Fig 10: Power Mirrors Wiring Diagram (10 Of 10)
GFDWR31211Courtesy of FORD MOTOR COMPANY
