Power Distribution/BCM

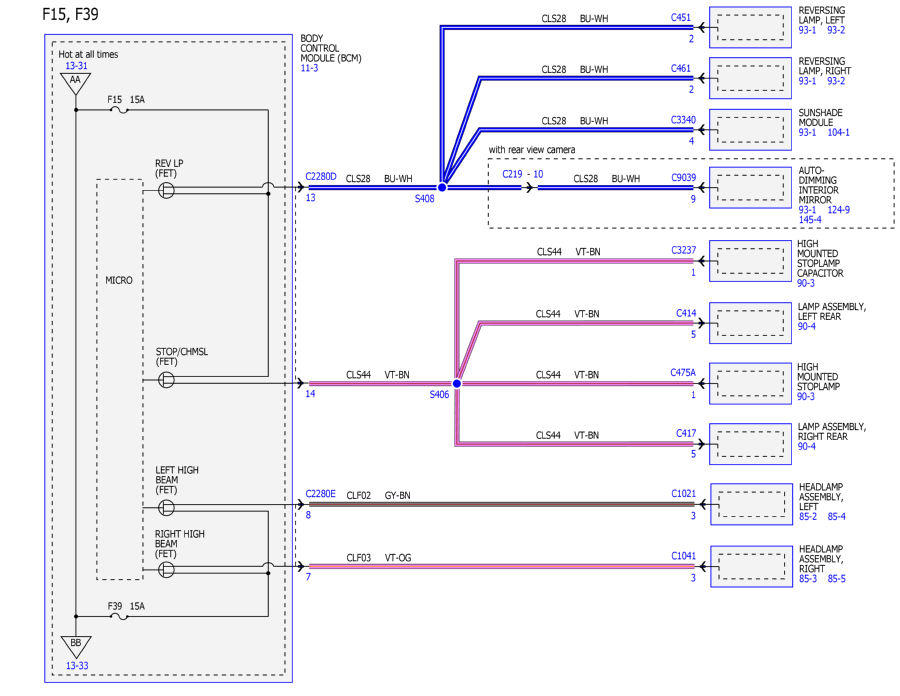

Fig 1: Power Distribution/BCM Wiring Diagram (1 Of 42)

GFDWR31147

Courtesy of FORD MOTOR COMPANY

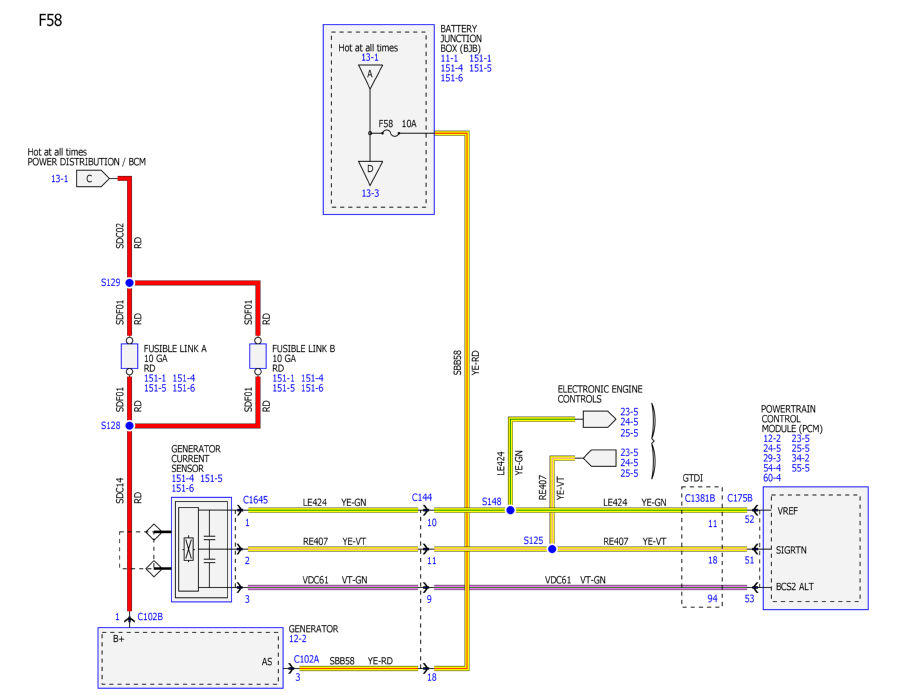

Fig 2: Power Distribution/BCM Wiring Diagram (2 Of 42)

GFDWR31148

Courtesy of FORD MOTOR COMPANY

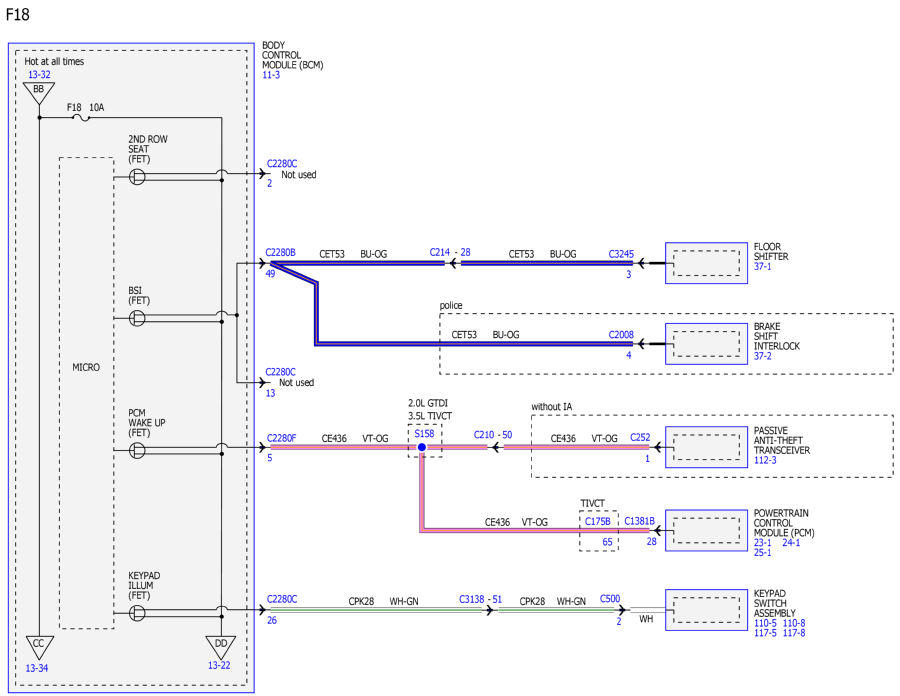

Fig 3: Power Distribution/BCM Wiring Diagram (3 Of 42)

GFDWR31149

Courtesy of FORD MOTOR COMPANY

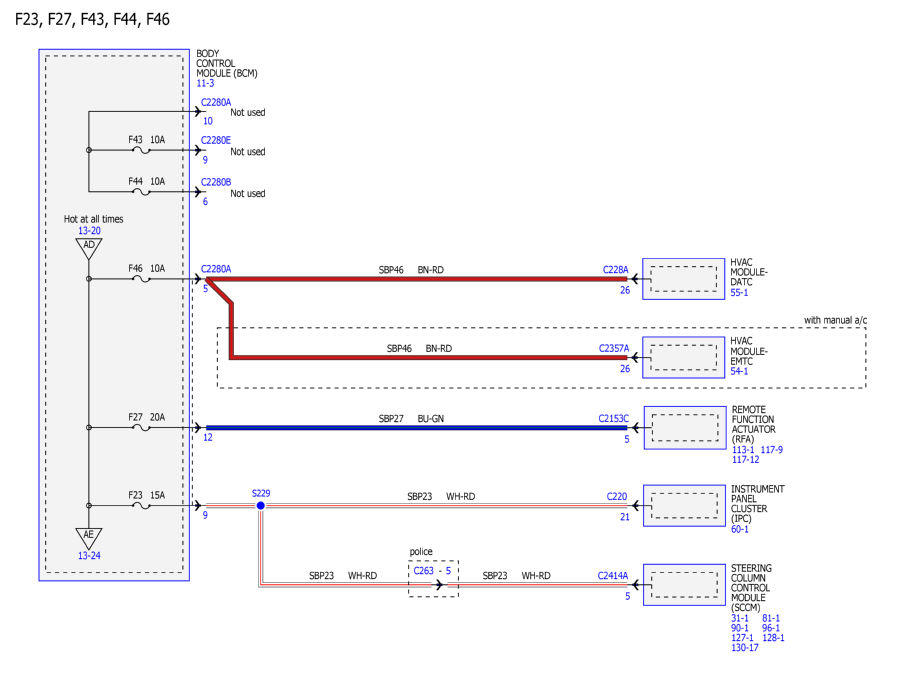

Fig 4: Power Distribution/BCM Wiring Diagram (4 Of 42)

GFDWR31150

Courtesy of FORD MOTOR COMPANY

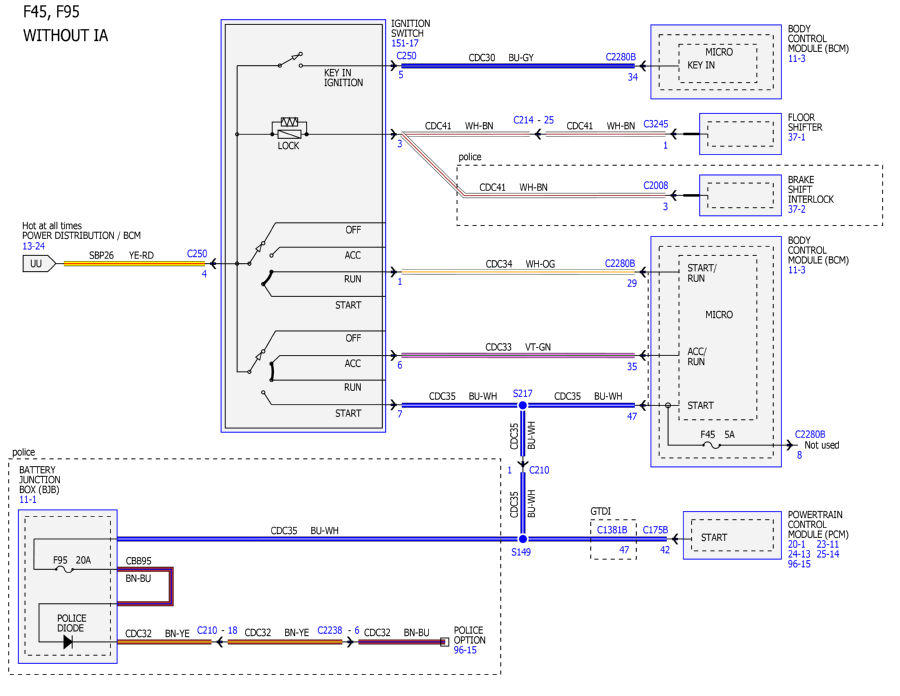

Fig 5: Power Distribution/BCM Wiring Diagram (4 Of 42)

GFDWR31151

Courtesy of FORD MOTOR COMPANY

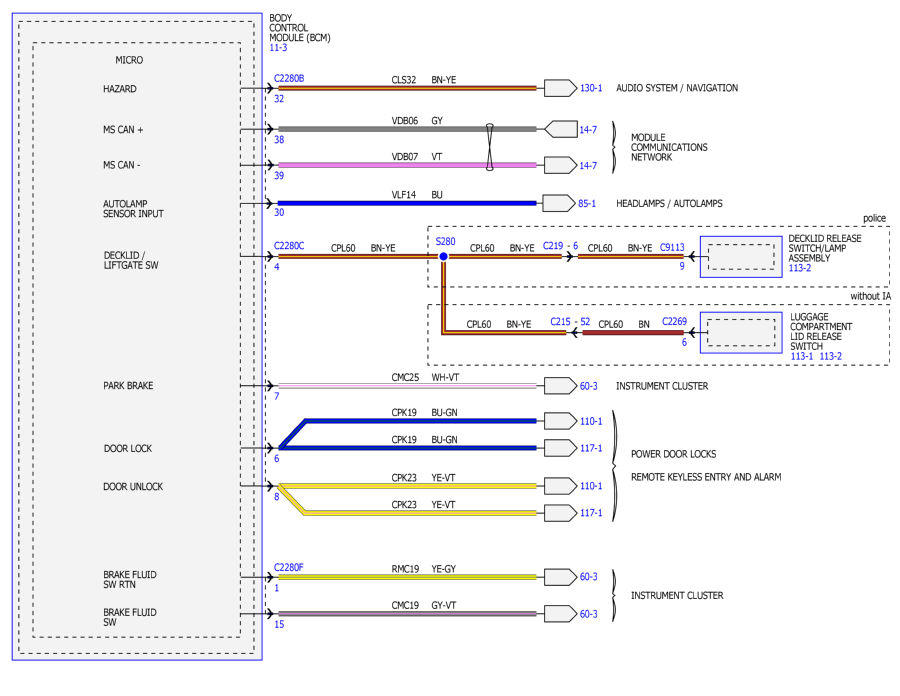

Fig 6: Power Distribution/BCM Wiring Diagram (5 Of 42)

GFDWR31152

Courtesy of FORD MOTOR COMPANY

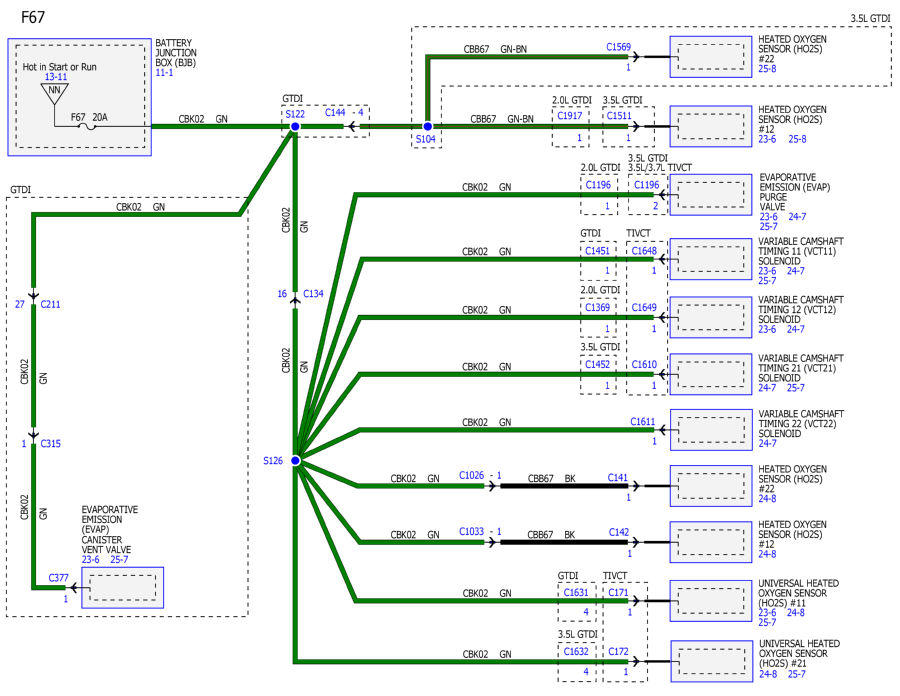

Fig 7: Power Distribution/BCM Wiring Diagram (6 Of 42)

GFDWR31153

Courtesy of FORD MOTOR COMPANY

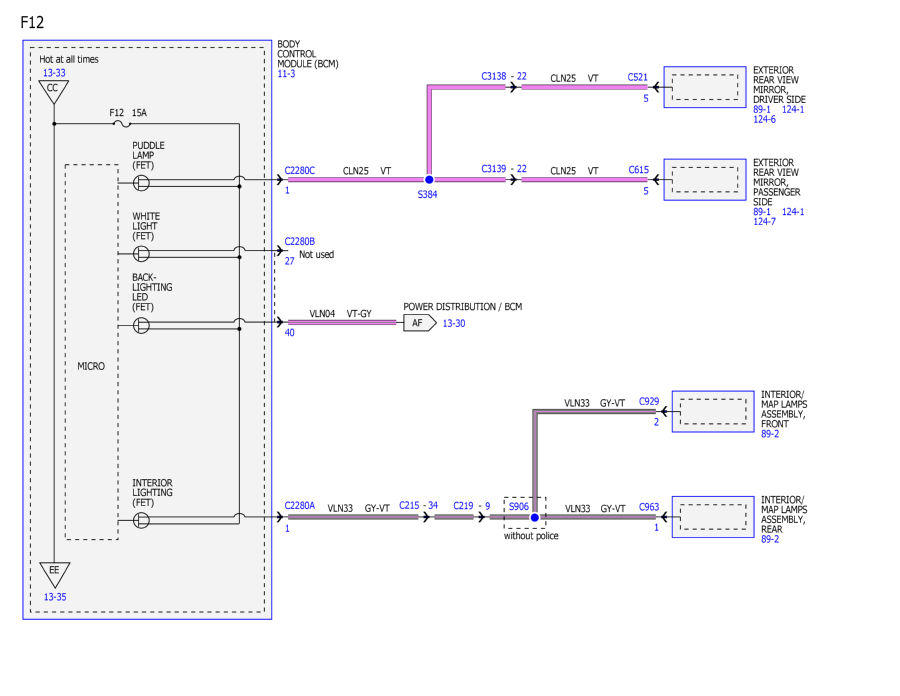

Fig 8: Power Distribution/BCM Wiring Diagram (7 Of 42)

GFDWR31154

Courtesy of FORD MOTOR COMPANY

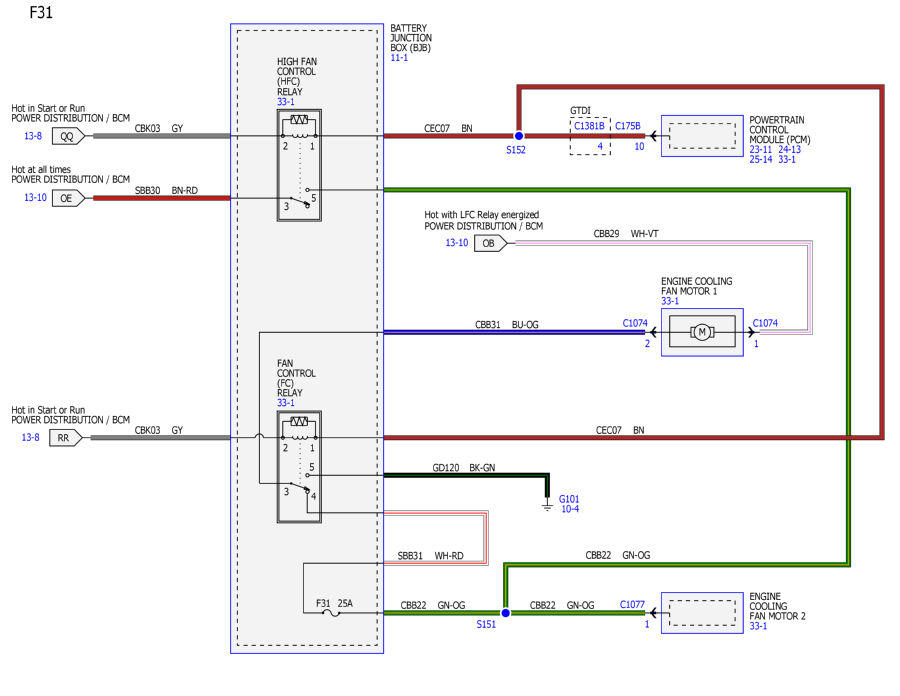

Fig 9: Power Distribution/BCM Wiring Diagram (8 Of 42)

GFDWR31155

Courtesy of FORD MOTOR COMPANY

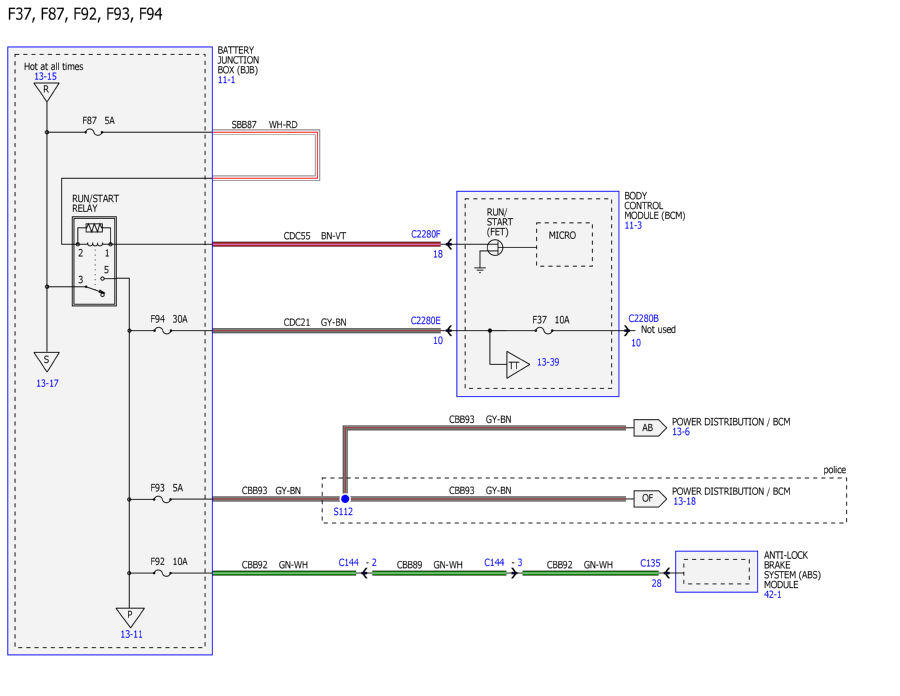

Fig 10: Power Distribution/BCM Wiring Diagram (9 Of 42)

GFDWR31156

Courtesy of FORD MOTOR COMPANY

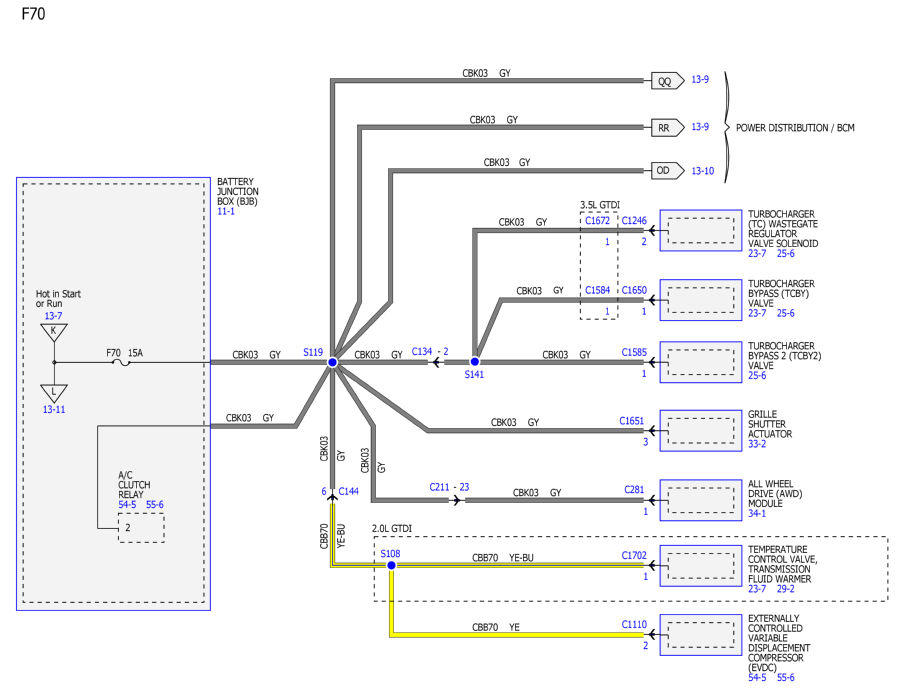

Fig 11: Power Distribution/BCM Wiring Diagram (10 Of 42)

GFDWR31157

Courtesy of FORD MOTOR COMPANY

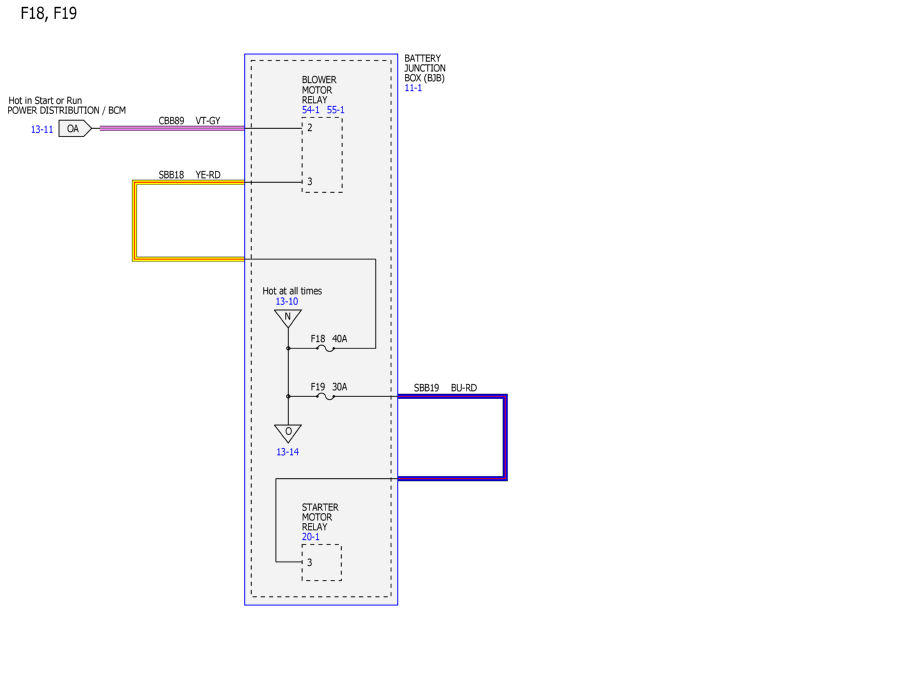

Fig 12: Power Distribution/BCM Wiring Diagram (11 Of 42)

GFDWR31158

Courtesy of FORD MOTOR COMPANY

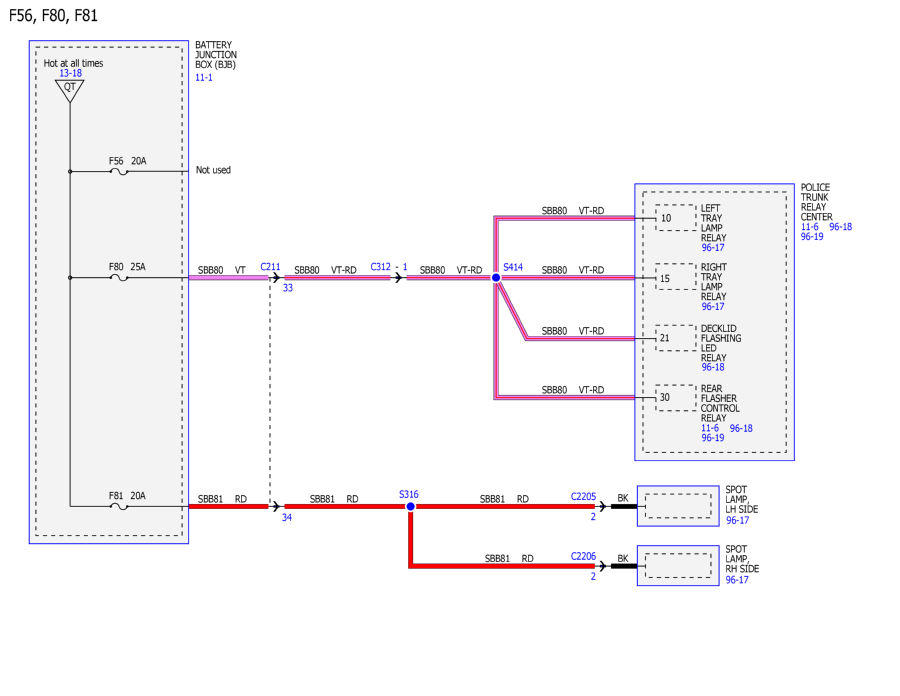

Fig 13: Power Distribution/BCM Wiring Diagram (12 Of 42)

GFDWR31159

Courtesy of FORD MOTOR COMPANY

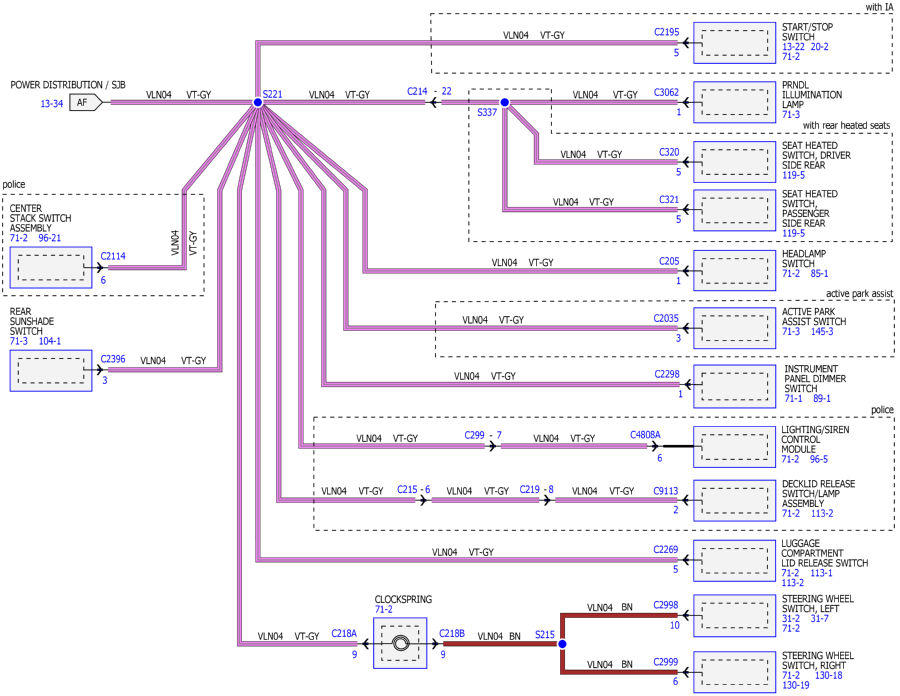

Fig 14: Power Distribution/BCM Wiring Diagram (13 Of 42)

GFDWR31160

Courtesy of FORD MOTOR COMPANY

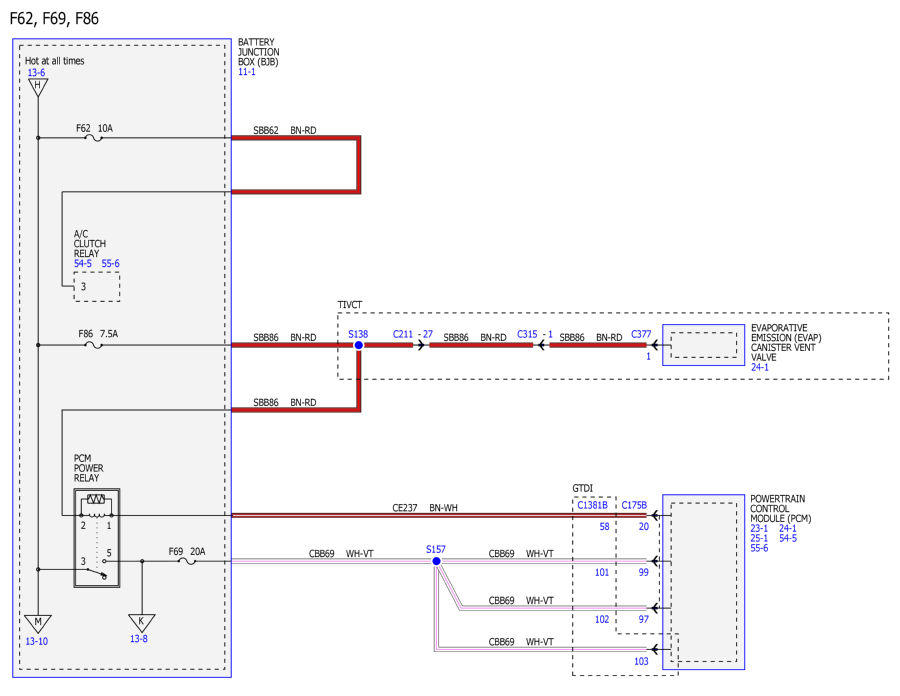

Fig 15: Power Distribution/BCM Wiring Diagram (14 Of 42)

GFDWR31161

Courtesy of FORD MOTOR COMPANY

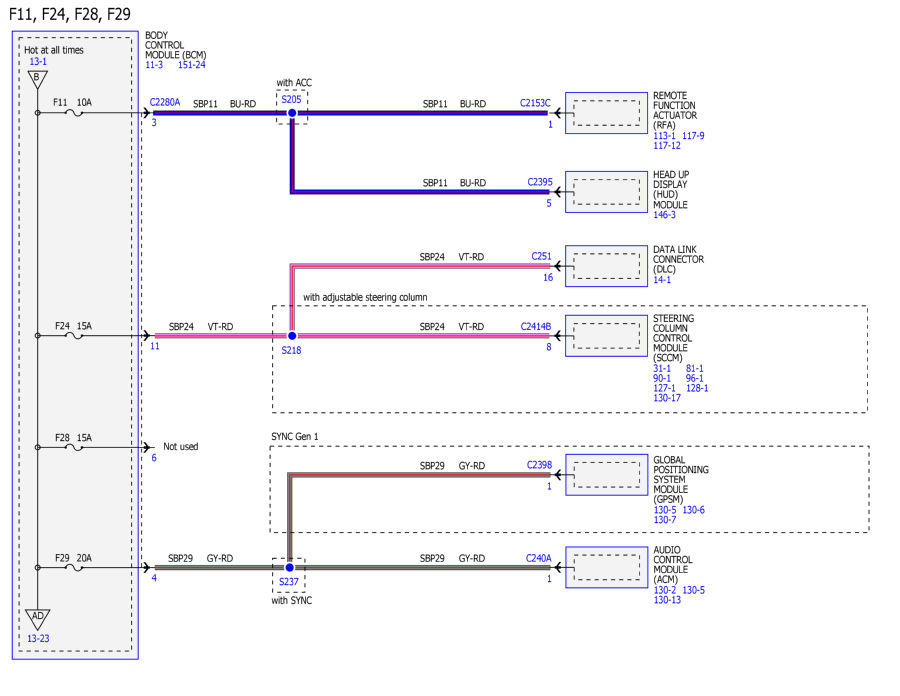

Fig 16: Power Distribution/BCM Wiring Diagram (15 Of 42)

GFDWR31162

Courtesy of FORD MOTOR COMPANY

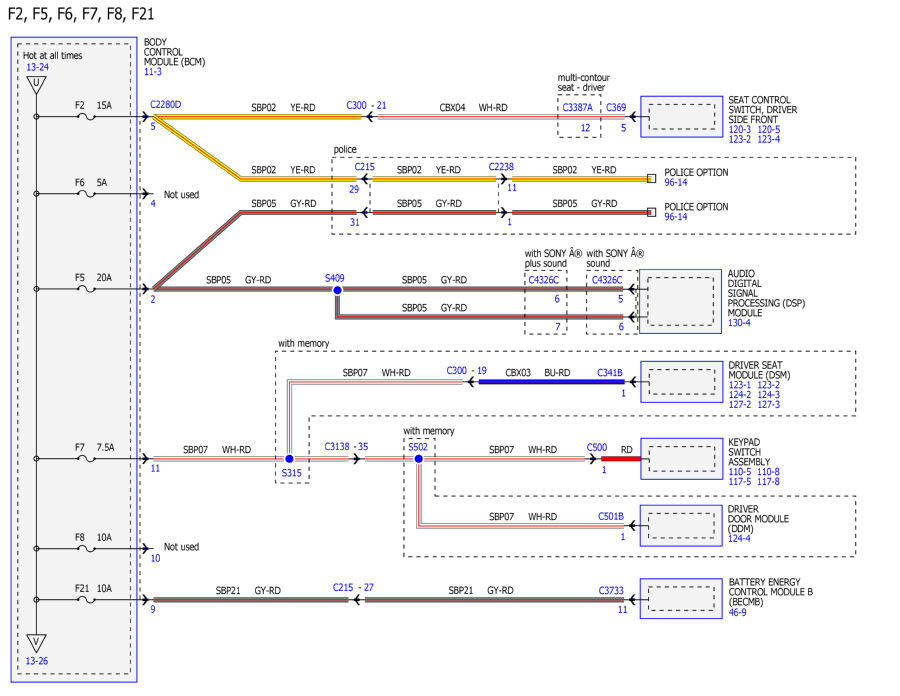

Fig 17: Power Distribution/BCM Wiring Diagram (16 Of 42)

GFDWR31163

Courtesy of FORD MOTOR COMPANY

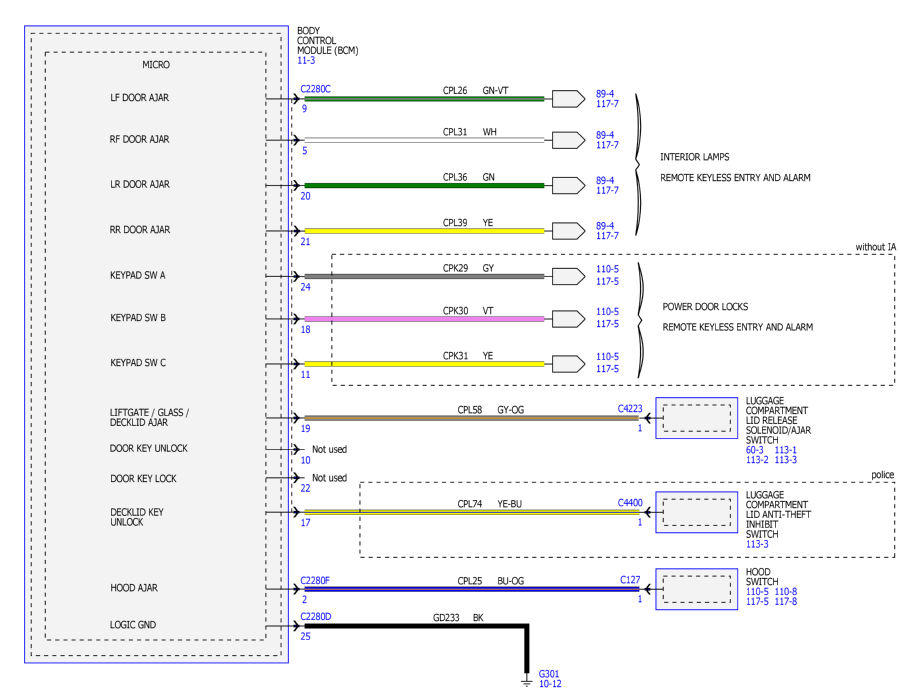

Fig 18: Power Distribution/BCM Wiring Diagram (17 Of 42)

GFDWR31164

Courtesy of FORD MOTOR COMPANY

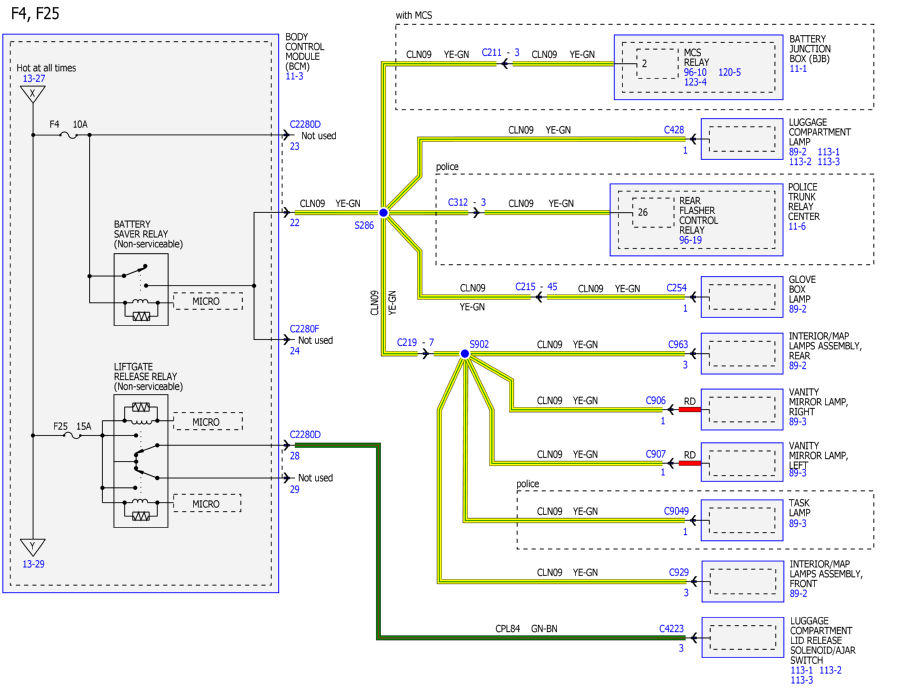

Fig 19: Power Distribution/BCM Wiring Diagram (18 Of 42)

GFDWR31165

Courtesy of FORD MOTOR COMPANY

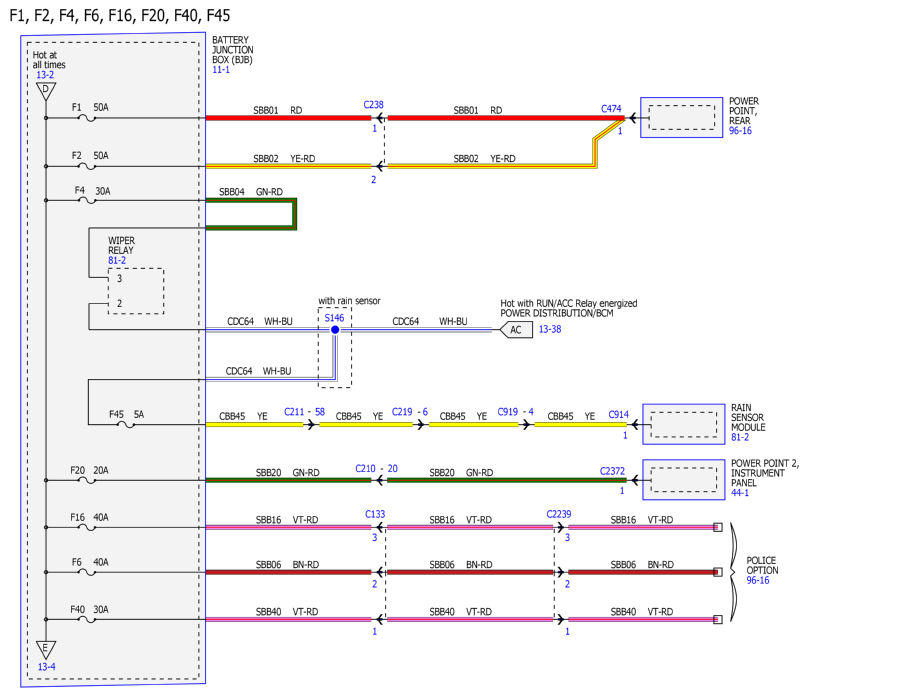

Fig 20: Power Distribution/BCM Wiring Diagram (19 Of 42)

GFDWR31166

Courtesy of FORD MOTOR COMPANY

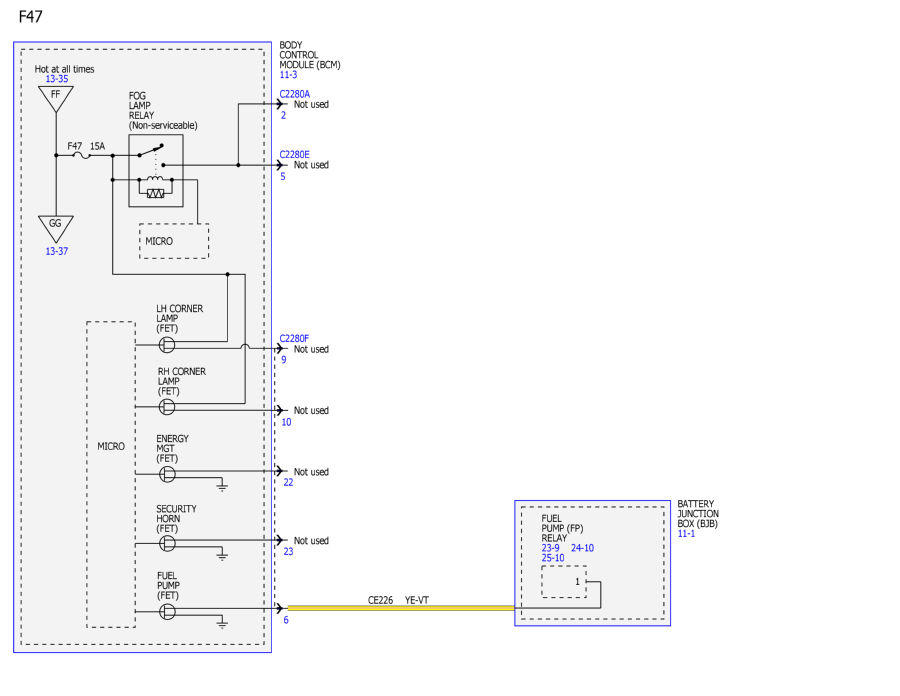

Fig 21: Power Distribution/BCM Wiring Diagram (20 Of 42)

GFDWR31167

Courtesy of FORD MOTOR COMPANY

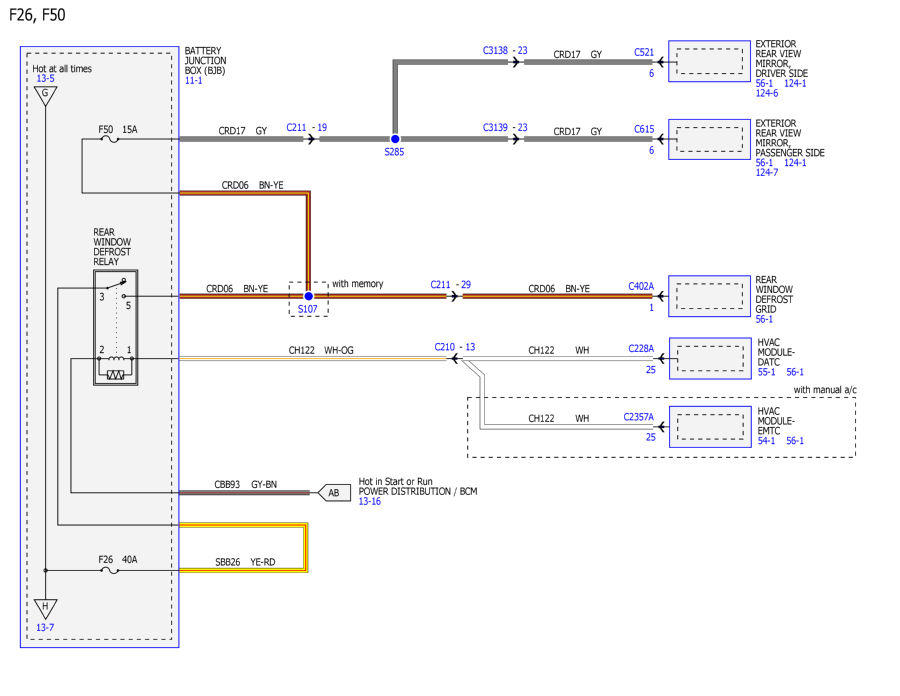

Fig 22: Power Distribution/BCM Wiring Diagram (21 Of 42)

GFDWR31168

Courtesy of FORD MOTOR COMPANY

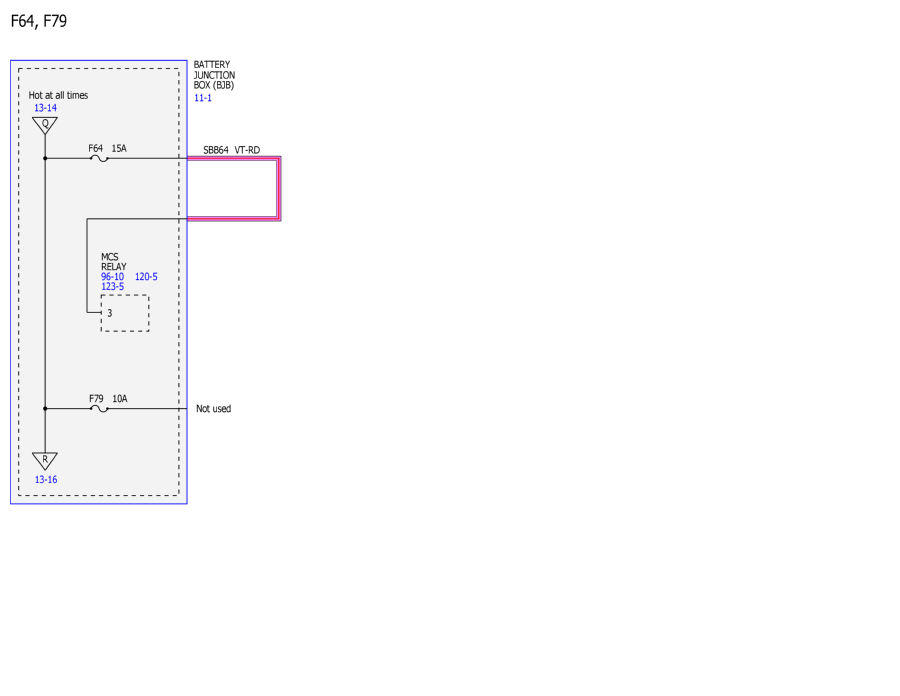

Fig 23: Power Distribution/BCM Wiring Diagram (22 Of 42)

GFDWR31169

Courtesy of FORD MOTOR COMPANY

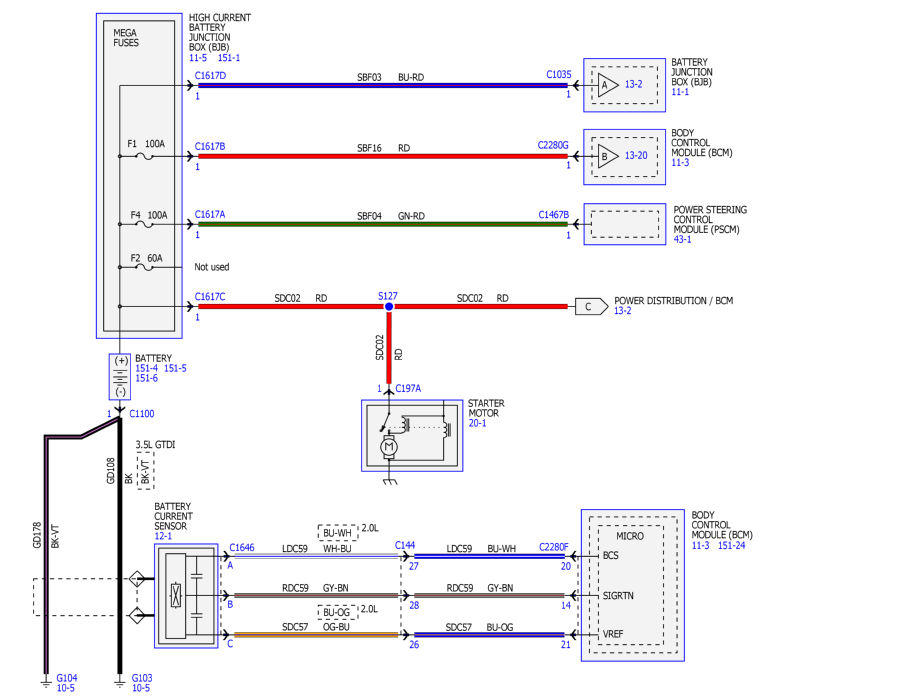

Fig 24: Power Distribution/BCM Wiring Diagram (23 Of 42)

GFDWR31170

Courtesy of FORD MOTOR COMPANY

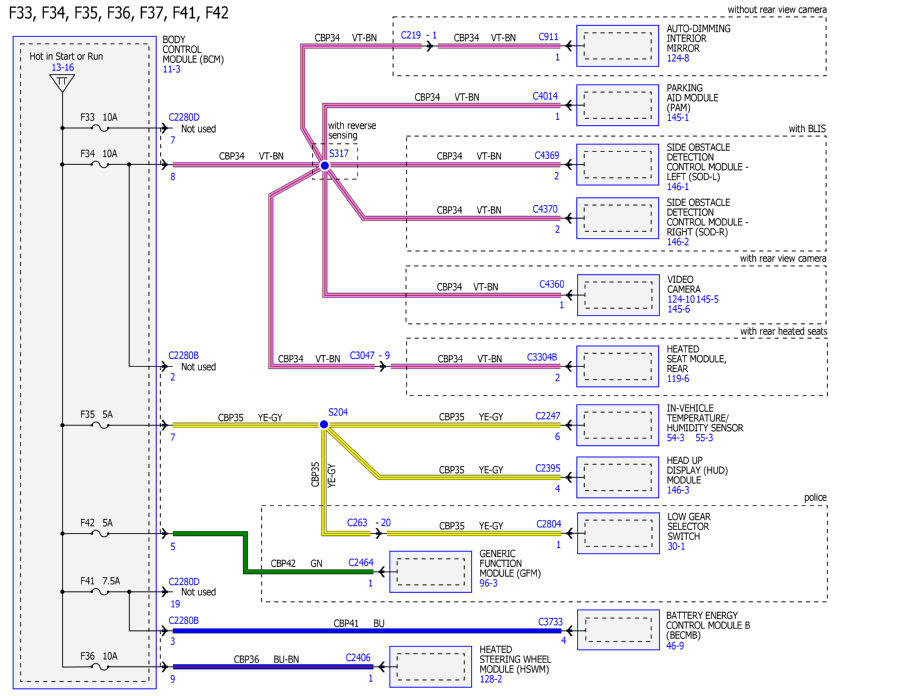

Fig 25: Power Distribution/BCM Wiring Diagram (24 Of 42)

GFDWR31171

Courtesy of FORD MOTOR COMPANY

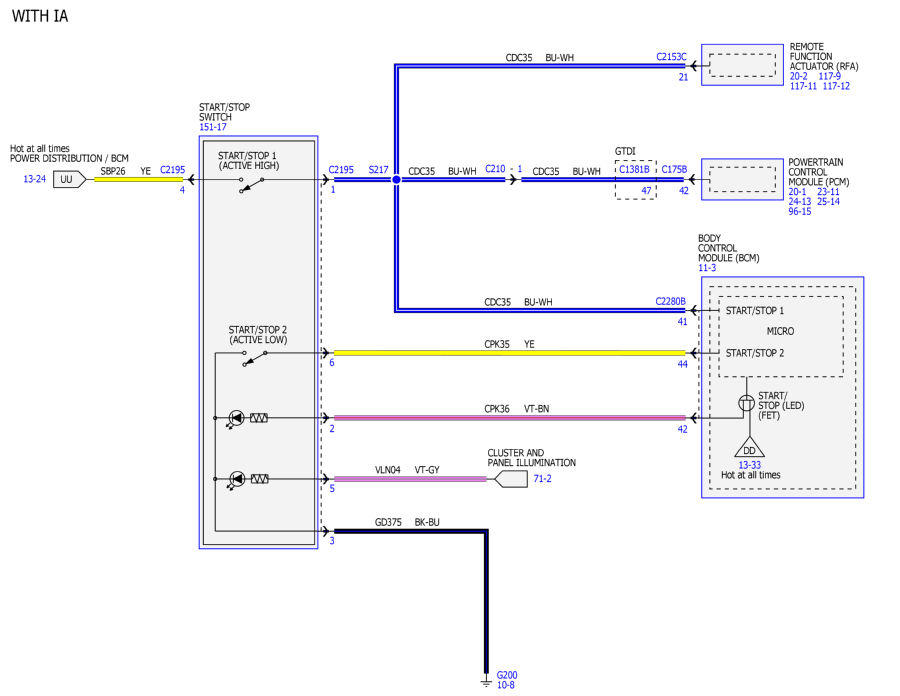

Fig 26: Power Distribution/BCM Wiring Diagram (25 Of 42)

GFDWR31172

Courtesy of FORD MOTOR COMPANY

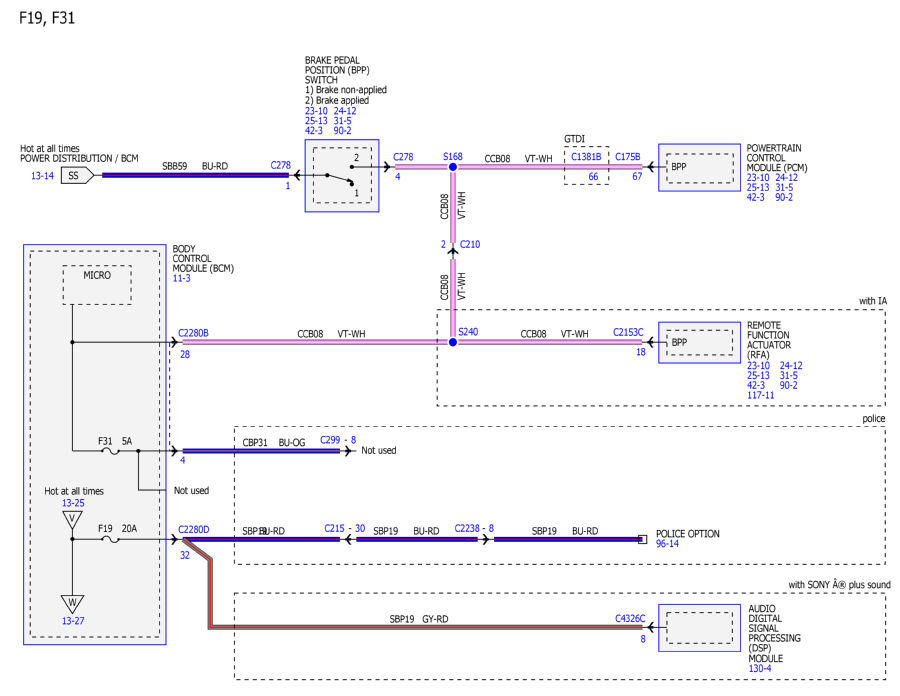

Fig 27: Power Distribution/BCM Wiring Diagram (26 Of 42)

GFDWR31173

Courtesy of FORD MOTOR COMPANY

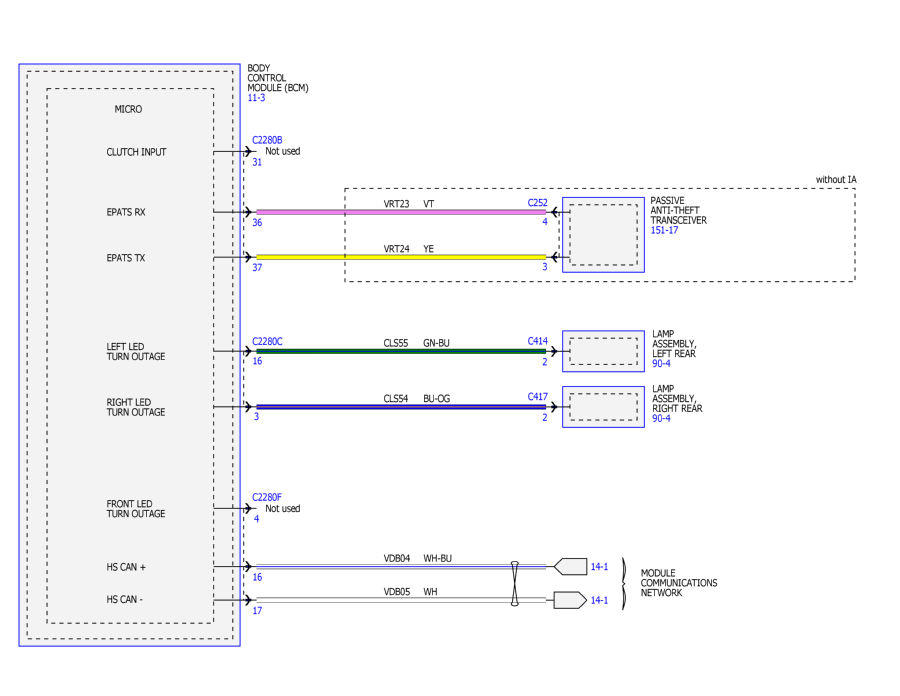

Fig 28: Power Distribution/BCM Wiring Diagram (27 Of 42)

GFDWR31174

Courtesy of FORD MOTOR COMPANY

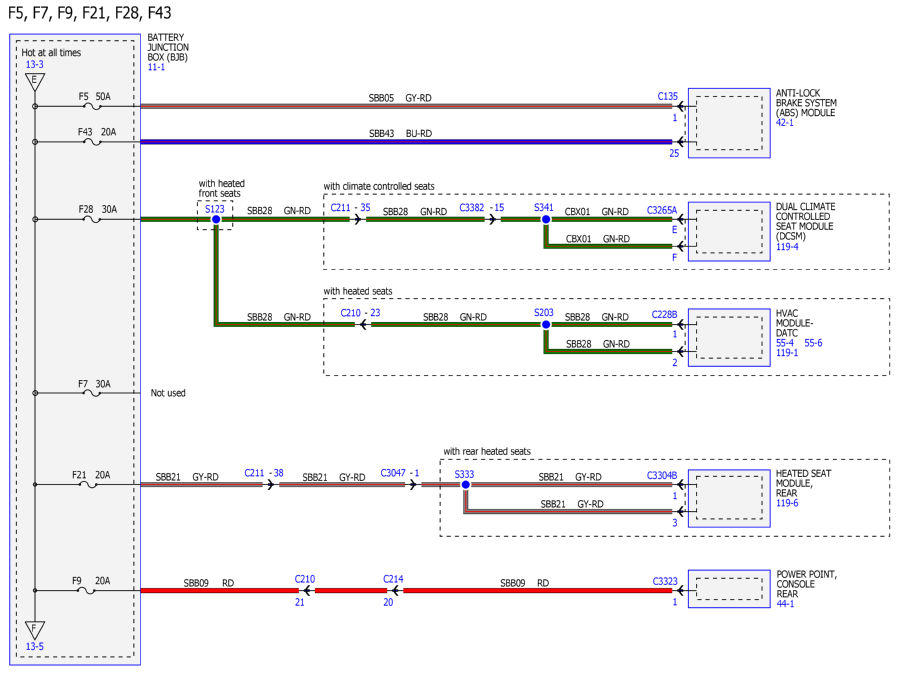

Fig 29: Power Distribution/BCM Wiring Diagram (28 Of 42)

GFDWR31175

Courtesy of FORD MOTOR COMPANY

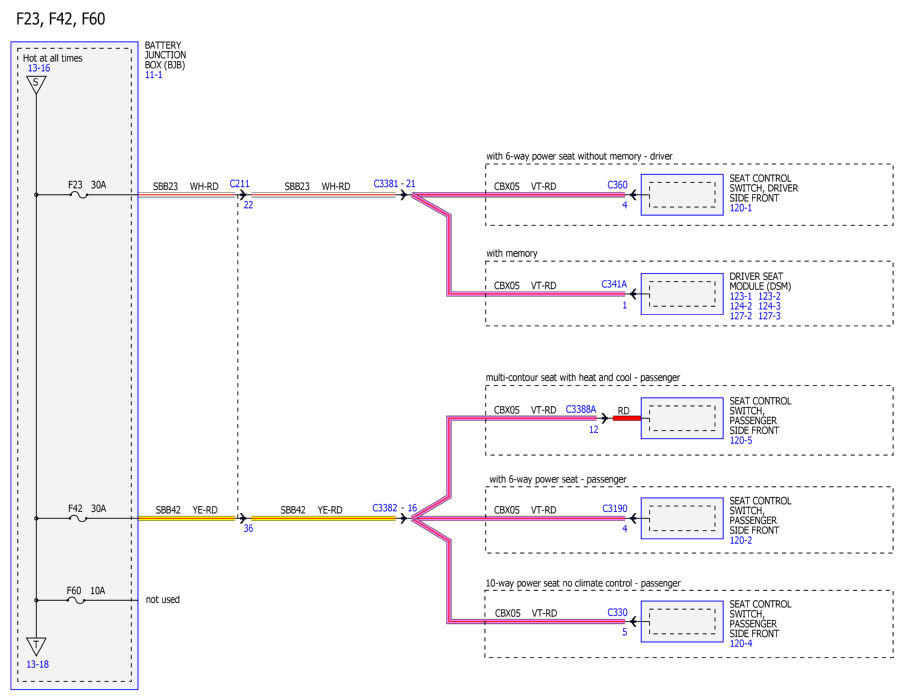

Fig 30: Power Distribution/BCM Wiring Diagram (29 Of 42)

GFDWR31176

Courtesy of FORD MOTOR COMPANY

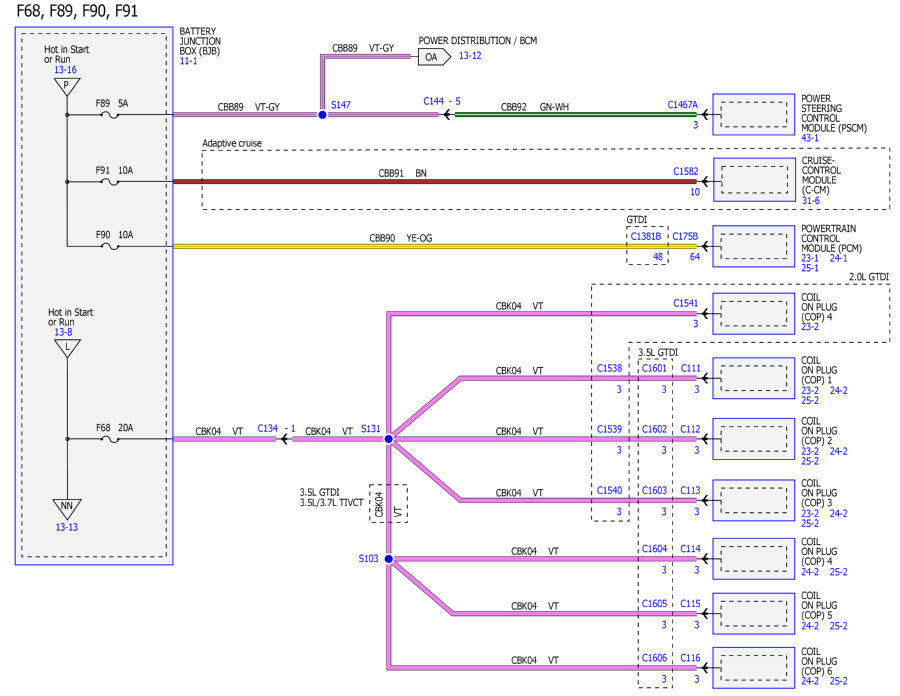

Fig 31: Power Distribution/BCM Wiring Diagram (30 Of 42)

GFDWR31177

Courtesy of FORD MOTOR COMPANY

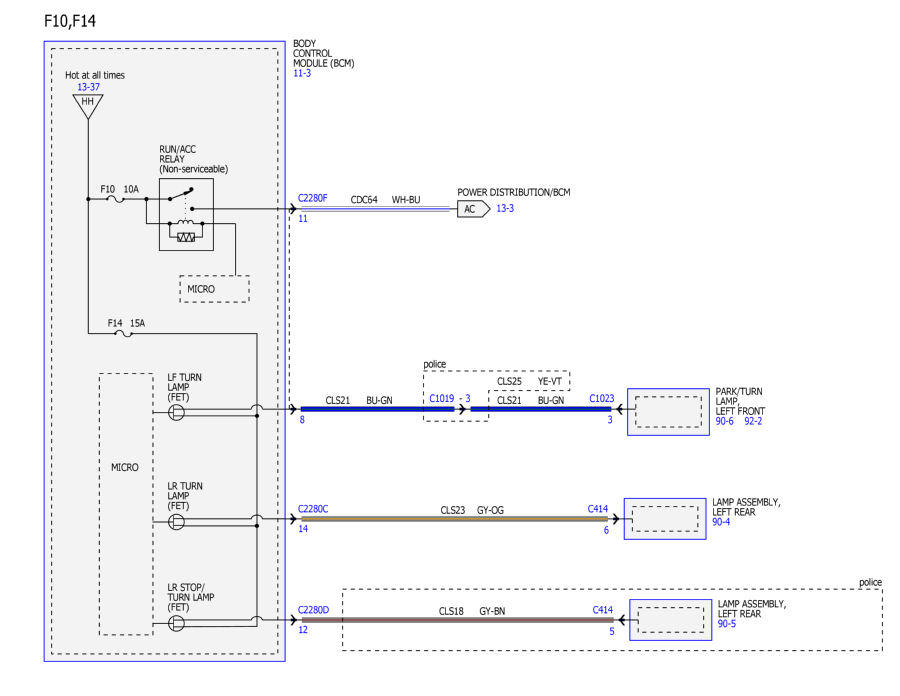

Fig 32: Power Distribution/BCM Wiring Diagram (31 Of 42)

GFDWR31178

Courtesy of FORD MOTOR COMPANY

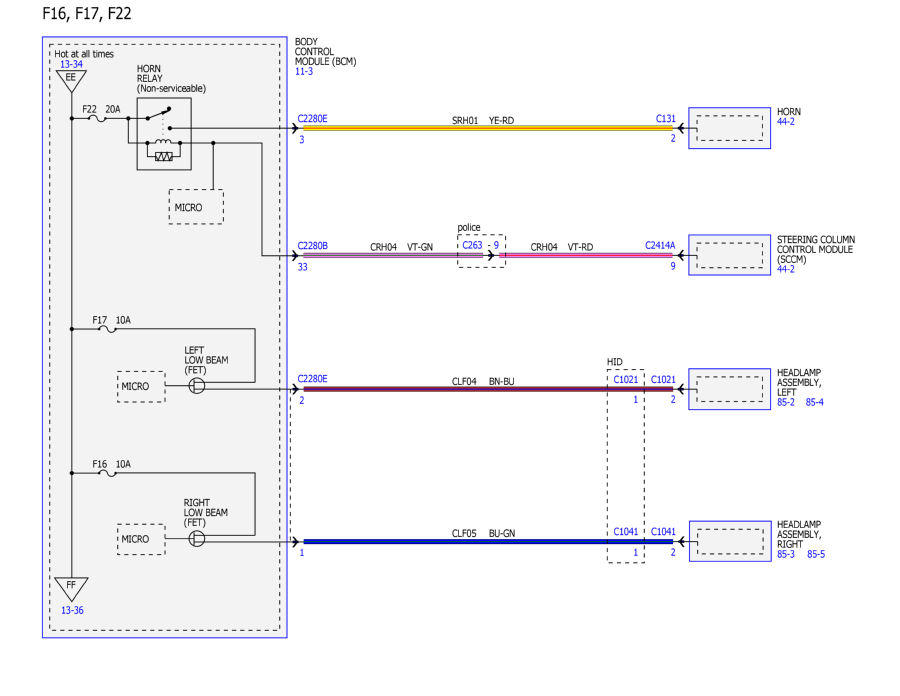

Fig 33: Power Distribution/BCM Wiring Diagram (32 Of 42)

GFDWR31179

Courtesy of FORD MOTOR COMPANY

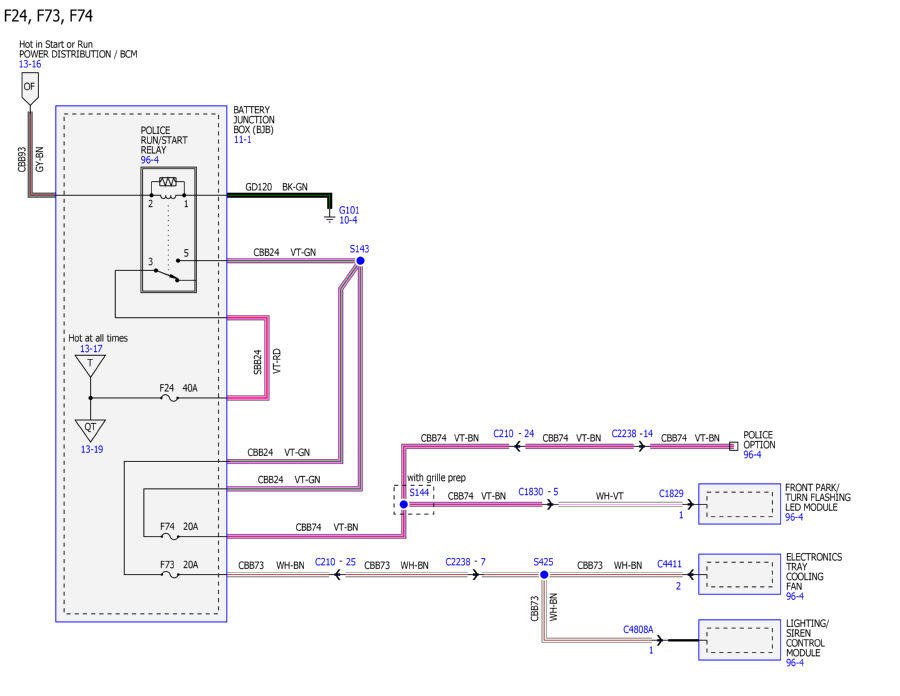

Fig 34: Power Distribution/BCM Wiring Diagram (33 Of 42)

GFDWR31180

Courtesy of FORD MOTOR COMPANY

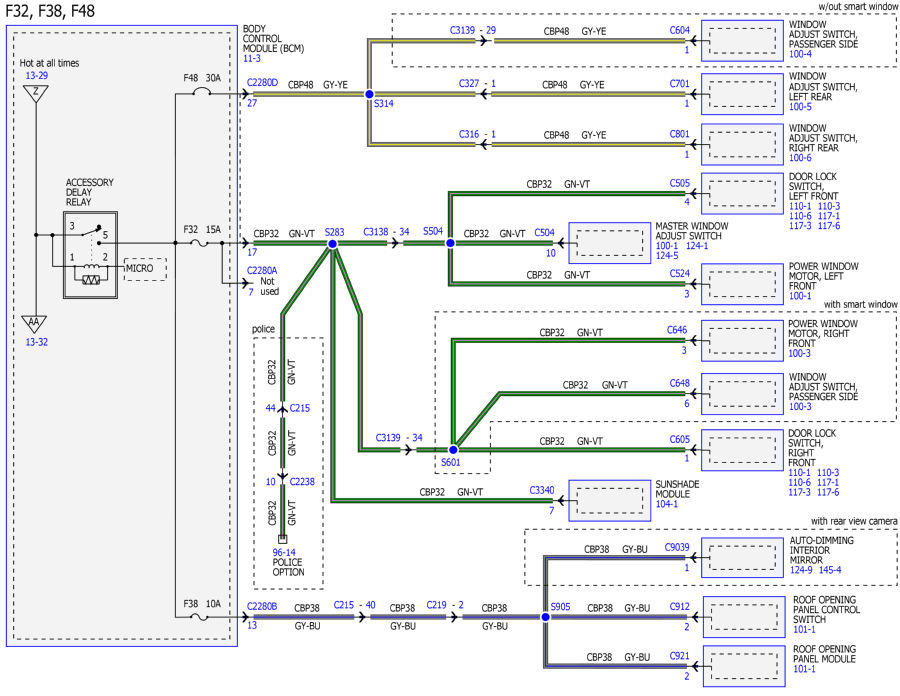

Fig 35: Power Distribution/BCM Wiring Diagram (34 Of 42)

GFDWR31181

Courtesy of FORD MOTOR COMPANY

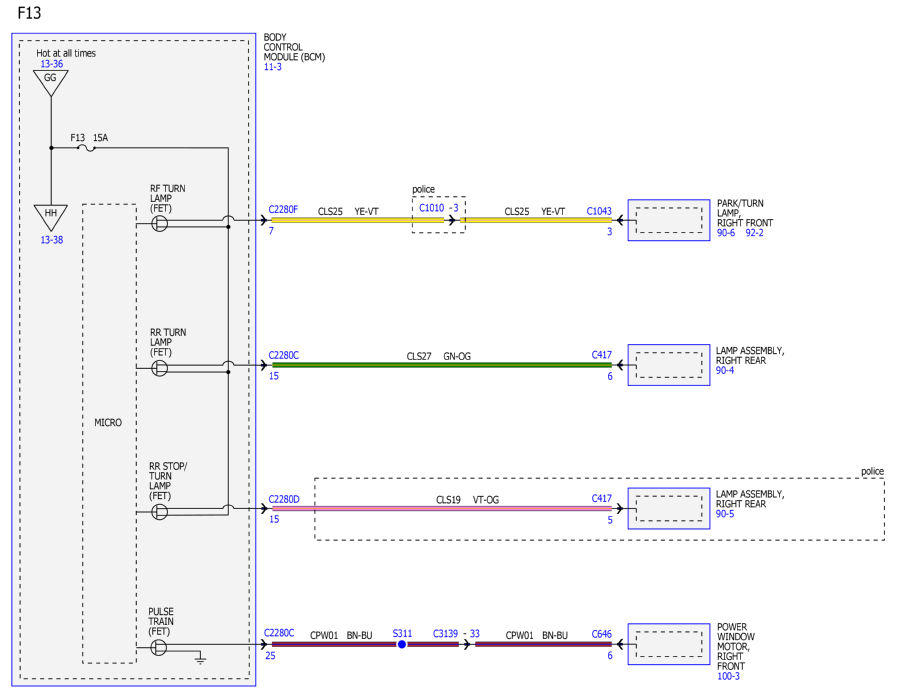

Fig 36: Power Distribution/BCM Wiring Diagram (35 Of 42)

GFDWR31182

Courtesy of FORD MOTOR COMPANY

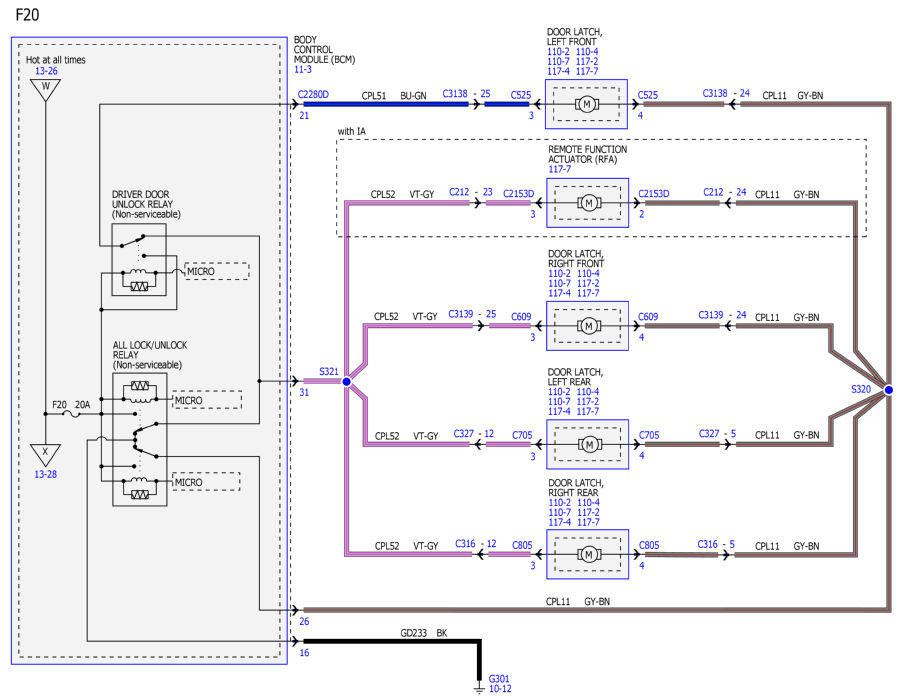

Fig 37: Power Distribution/BCM Wiring Diagram (36 Of 42)

GFDWR31183

Courtesy of FORD MOTOR COMPANY

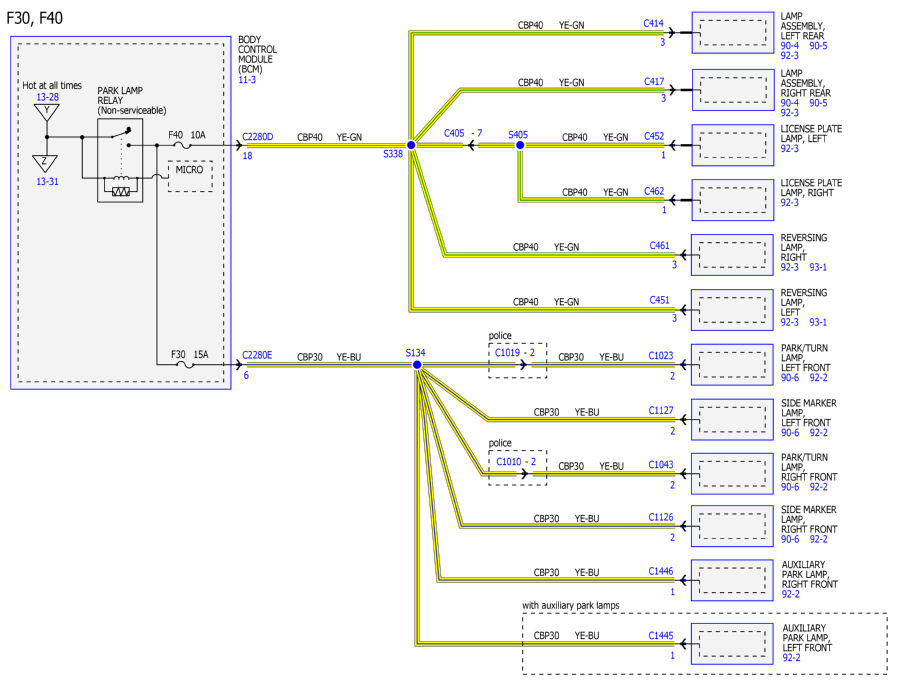

Fig 38: Power Distribution/BCM Wiring Diagram (37 Of 42)

GFDWR31184

Courtesy of FORD MOTOR COMPANY

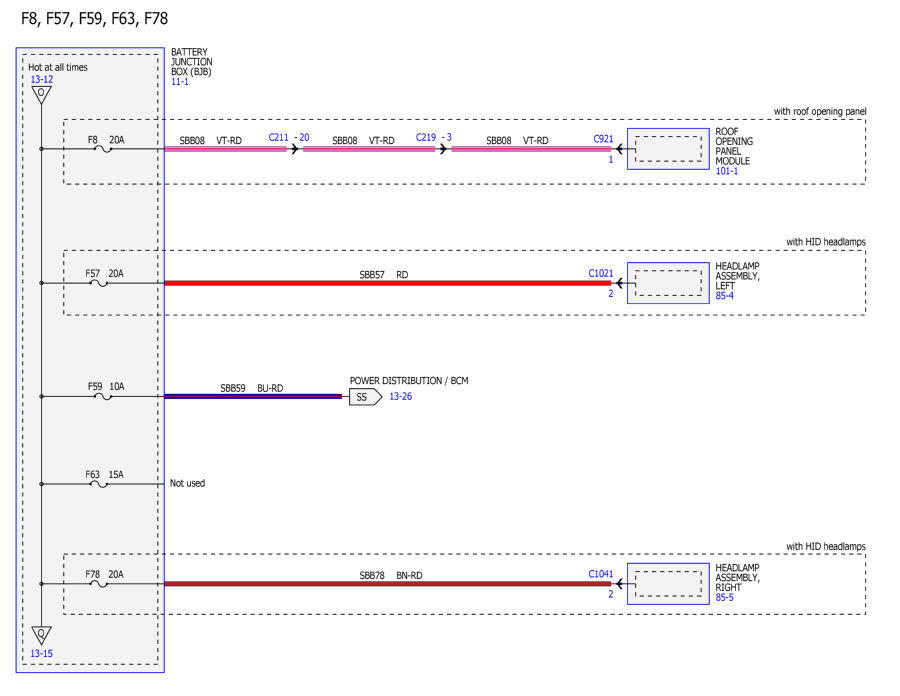

Fig 39: Power Distribution/BCM Wiring Diagram (38 Of 42)

GFDWR31185

Courtesy of FORD MOTOR COMPANY

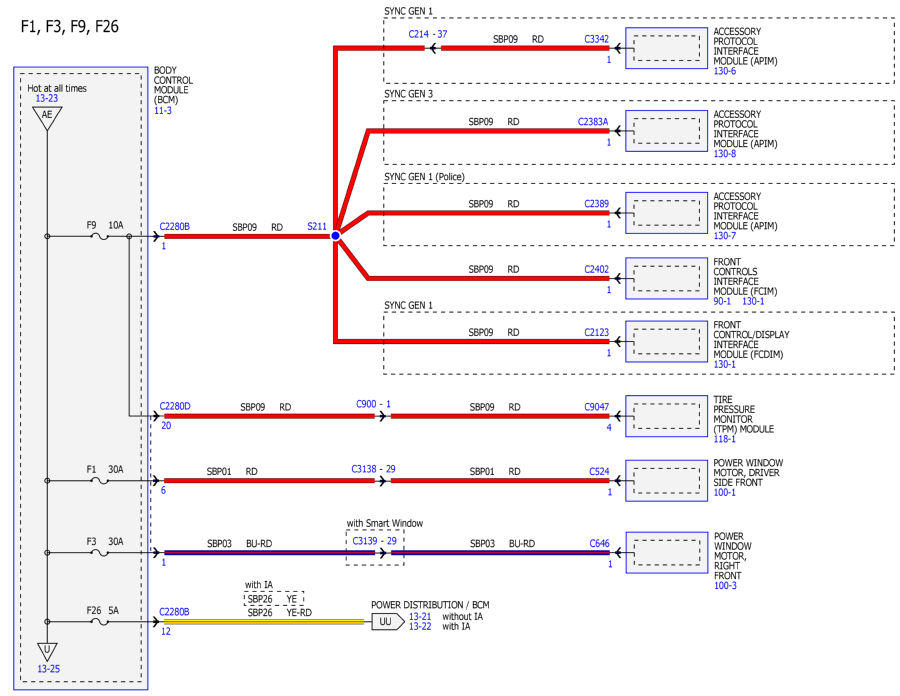

Fig 40: Power Distribution/BCM Wiring Diagram (39 Of 42)

GFDWR31186

Courtesy of FORD MOTOR COMPANY

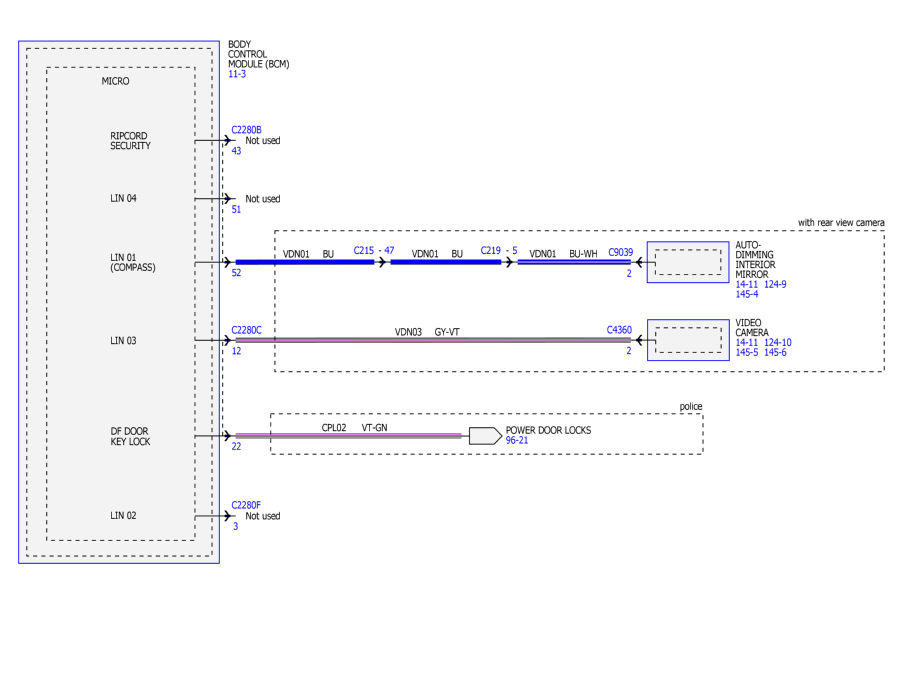

Fig 41: Power Distribution/BCM Wiring Diagram (40 Of 42)

GFDWR31187

Courtesy of FORD MOTOR COMPANY

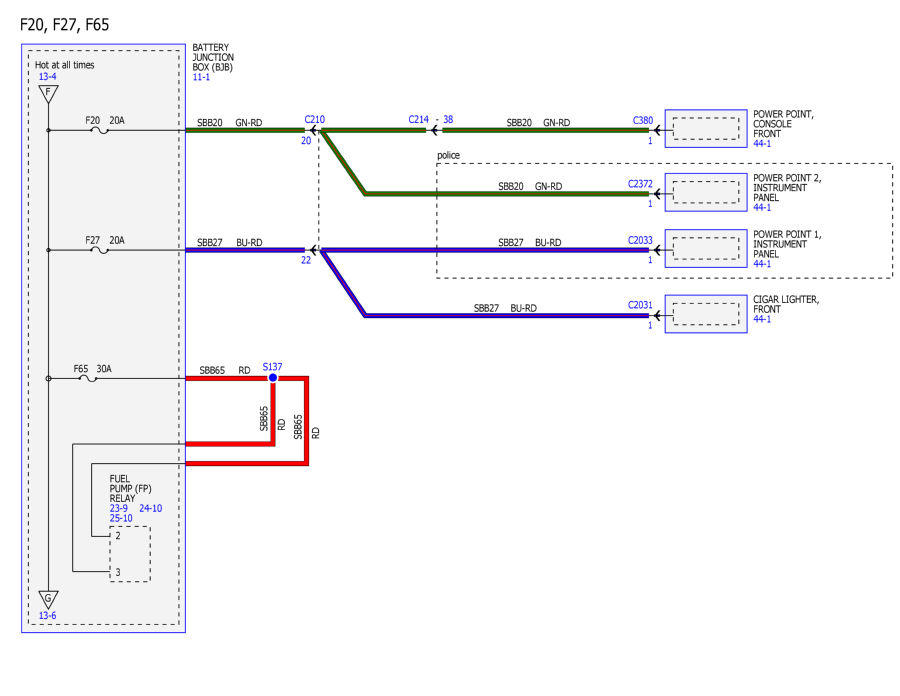

Fig 42: Power Distribution/BCM Wiring Diagram (41 Of 42)

GFDWR31188

Courtesy of FORD MOTOR COMPANY

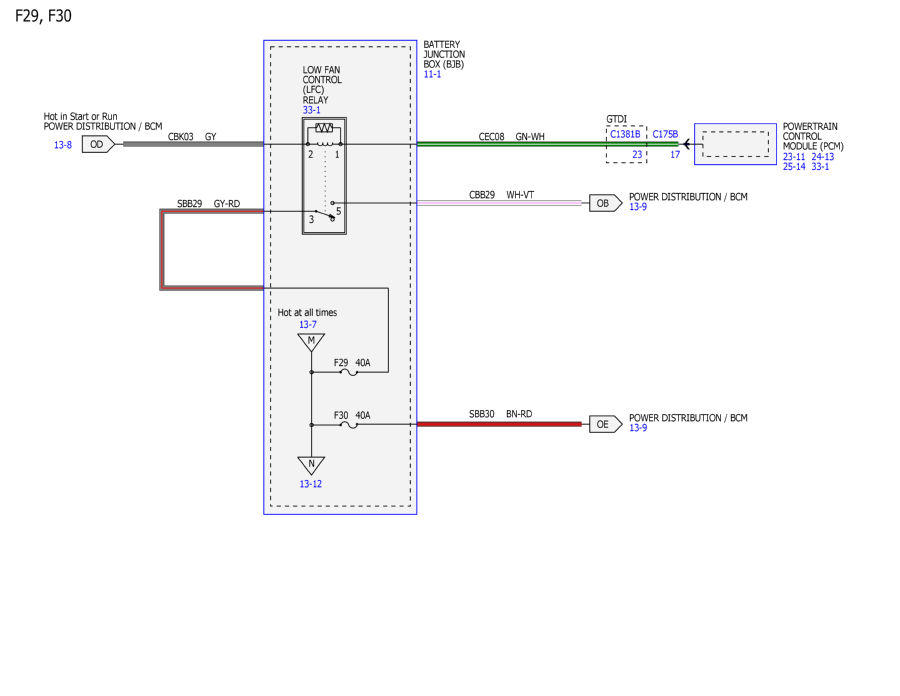

Fig 43: Power Distribution/BCM Wiring Diagram (42 Of 42)

GFDWR31189

Courtesy of FORD MOTOR COMPANY
