Luggage Compartment Lid Release

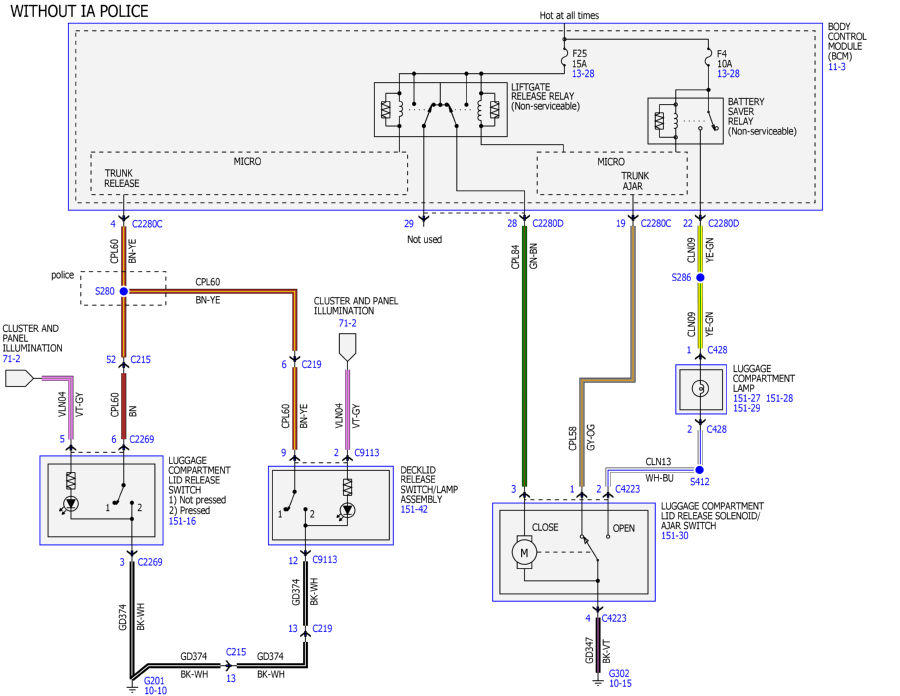

Fig 1: Luggage Compartment Lid Release Wiring Diagram (1 Of 3)
GFDWR31086Courtesy of FORD MOTOR COMPANY

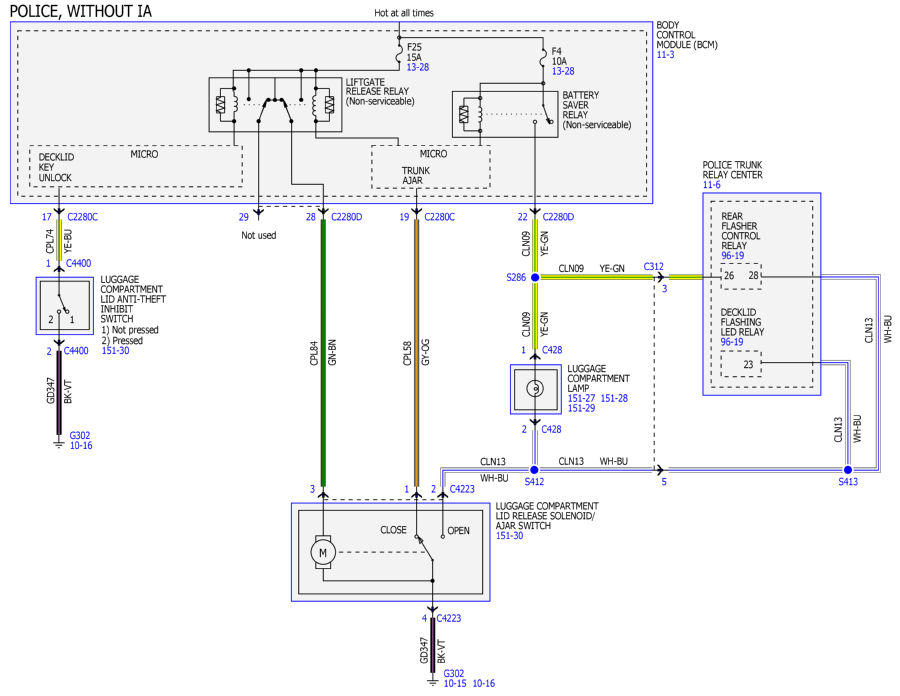

Fig 2: Luggage Compartment Lid Release Wiring Diagram (2 Of 3)
GFDWR31087Courtesy of FORD MOTOR COMPANY

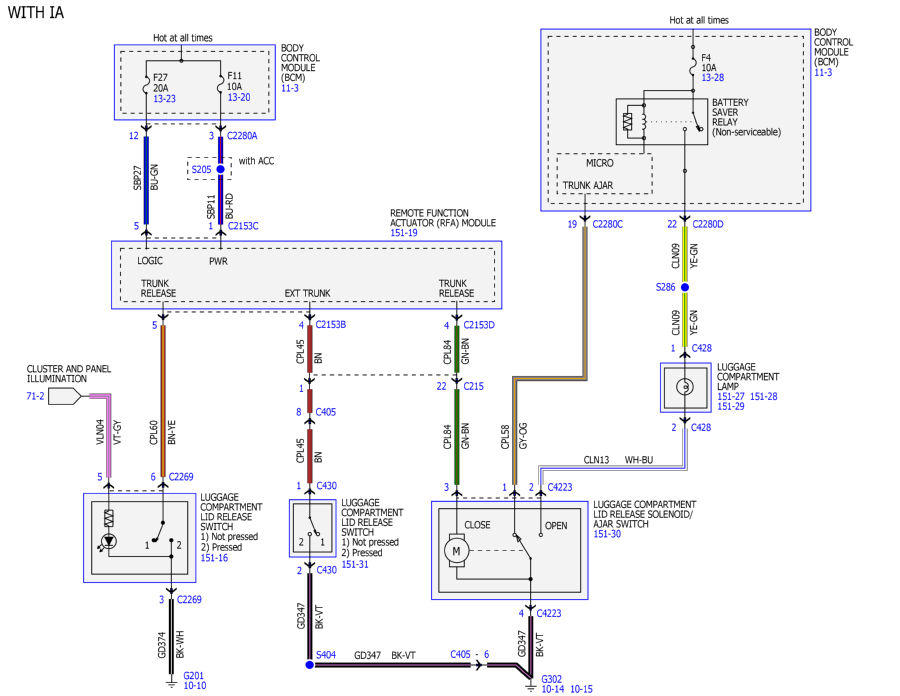

Fig 3: Luggage Compartment Lid Release Wiring Diagram (3 Of 3)
GFDWR31088Courtesy of FORD MOTOR COMPANY
