Connector End View (C906) - VANITY MIRROR LAMP, RIGHT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C906	VANITY MIRROR LAMP, RIGHT	BK	14334	4104	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
F4SB-14474-GA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	F4SB-14474-GA
2	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT (BC3T)	F4SB-14474-GA

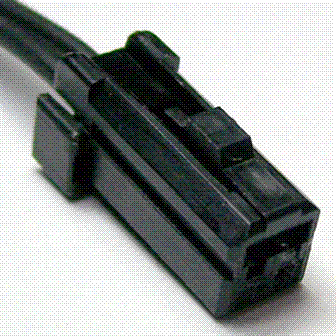

Available Pigtail Kits

Pigtail Kit Part Number WPT-1197

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PFB

Gauge:

20

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Mirror - Vanity
• Sensor - Speed
• Switch - Brake Deactivation
• Switch - Brake Pedal Position
• Switch - Brake Pressure
• Switch - Park Brake
• Switch - Speed Control
• Switch - Speed Control Deactivation
• Switch - Stop Lamp
• Switch - Visor
