Connector End View (C803) - POWER WINDOW MOTOR, RIGHT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C803	POWER WINDOW MOTOR, RIGHT REAR	BK	14632	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
98BG-14474-ACA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW23 (GY)	12	SWITCH - POWER WINDOW REAR RIGHT # DOWN	98BG-14474-ACA
2	CPW24 (WH-VT)	12	SWITCH - POWER WINDOW REAR RIGHT # UP	98BG-14474-ACA

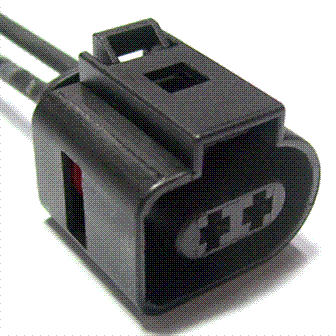

Available Pigtail Kits

Pigtail Kit Part Number WPT-1024

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ZLB

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
