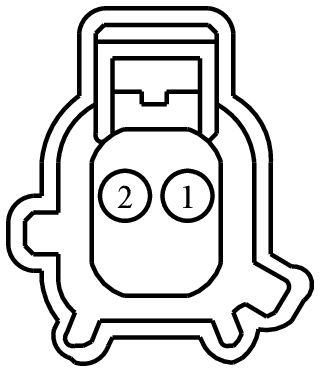

Connector End View (C644) - SIDE IMPACT SENSOR, PASSENGER FRONT DOOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C644	SIDE IMPACT SENSOR, PASSENGER FRONT DOOR	BK	14630	14B345	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR218 (YE-OG)	20	SENSOR - SIDE IMPACT FRONT PASSENGER SIDE	97BG-14474-ADA
2	RR132 (BU-WH)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE -	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-948

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EKB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Motor - Windshield Washer Fluid Pump
• Sensor - Side Impact
