Connector End View (C2008) - BRAKE SHIFT INTERLOCK

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2008	BRAKE SHIFT INTERLOCK	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT (BC3T)	3F2T-14474-SA
2	CET52 (GN)	22	SWITCH - TRANSMISSION PARK DETECT	3F2T-14474-SA
3	CDC41 (WH-BN)	22	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)	3F2T-14474-SA
4	CET53 (BU-OG)	22	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK	3F2T-14474-SA

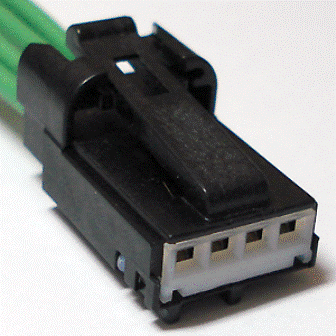

Available Pigtail Kits

Pigtail Kit Part Number WPT-982

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-JB

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Module - Auto Lamps
• Module - Front Interface
• Sensor - EATC In Car Temperature
• Sensor - Sunload
• Solenoid - Brake Shift Park Interlock
• Switch - Door Lock (LH)
• Switch - Door Lock (RH)
