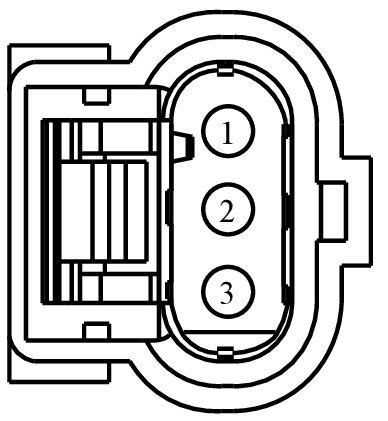

Connector End View (C1654) - CAMSHAFT POSITION 21 (CMP21) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1654	CAMSHAFT POSITION 21 (CMP21) SENSOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE707 (GN-VT)	18	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP21)	N/A
2	RE406 (GY-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN)	N/A
3	LE111 (VT-GN)	18	TSS/OSS POWER SUPPLY (VBPWR)	N/A

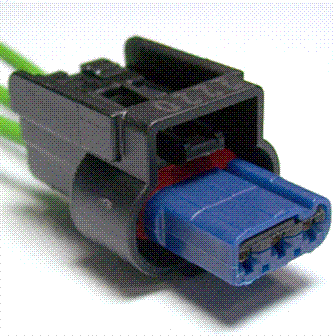

Available Pigtail Kits

Pigtail Kit Part Number WPT-1202

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ARA

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Actuator - Turbocharger Waste Gate
• Coil - Ignition
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
