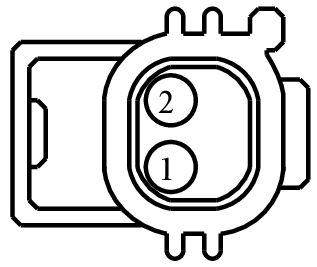

Connector End View (C1615) - KNOCK SENSOR 2 (KS2)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1615	KNOCK SENSOR 2 (KS2)	DK GY	9H589	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE324 (BN-GN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-)	N/A
2	VE802 (BN-BU)	20	SENSOR - KNOCK 2ND (KS2+)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-987

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CZAB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Sensor - Cylinder Head Temperature
• Sensor - Knock
