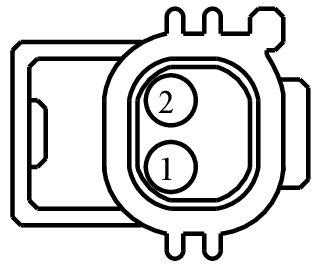

Connector End View (C1614) - KNOCK SENSOR 1 (KS1)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1614	KNOCK SENSOR 1 (KS1)	DK GY	9H589	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE323 (WH-BN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE (KS1-)	N/A
2	VE801 (VT-OG)	20	SENSOR - KNOCK 1ST OR UNIQUE (KS1+)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-987

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CZAB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:
