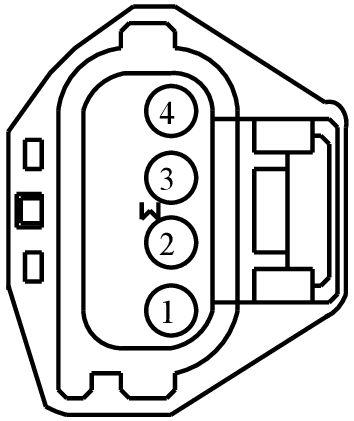

Connector End View (C1609B) - ELECTRONIC THROTTLE CONTROL (ETC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1609B	ELECTRONIC THROTTLE CONTROL (ETC)	DK GY	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)	N/A
2	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	N/A
3	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	N/A
4	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1293

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-UC

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Control - Electronic Throttle
• Sensor - Fuel Rail Temperature
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Throttle Position
