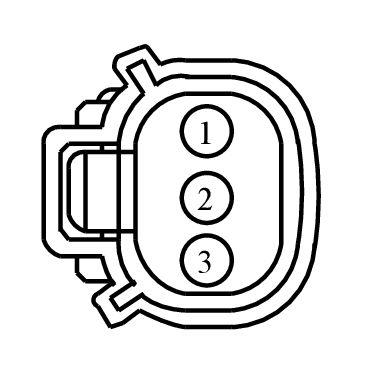

Connector End View (C1602) - COIL ON PLUG (COP) 2

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1602	COIL ON PLUG (COP) 2	12C508			12A366	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD108 (BK-VT)	16	GROUND - CHASSIS / BATTERY	N/A
2	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2C)	N/A
3	CBK04 (VT)	10	FUSE - 4 OR CIRCUIT BREAKER (VPWR)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1284

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AFA

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
