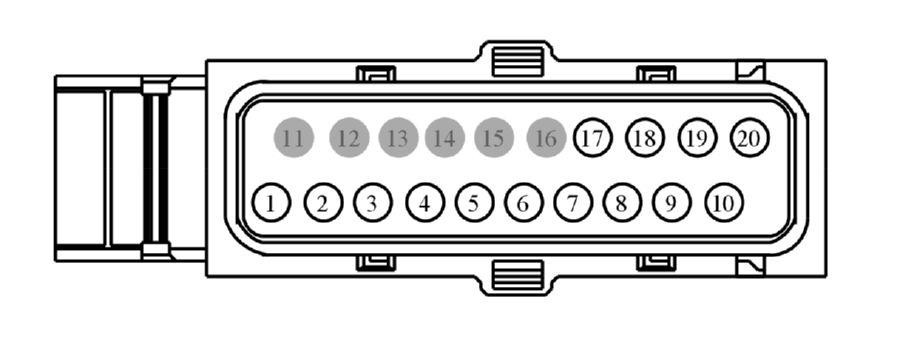

Connector End View (C1520A) - 6F35 TRANSMISSION

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1520A	6F35 TRANSMISSION	LT GY	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	N/A
2	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	N/A
3	CET09 (YE-VT)	20	LINE PRESSURE CONTROL (LPC)	N/A
4	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC)	N/A
5	CET25 (BU-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	N/A
6	CET10 (BU-GY)	20	TORQUE CONVERTER CLUTCH (TCC) SOLENOID	N/A
7	CET18 (GY-YE)	20	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1)	N/A
8	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA)	N/A
9	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB)	N/A
10	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD)	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	VET32 (VT)	20	SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS]	N/A
18	LE111 (VT-GN)	20	TSS/OSS POWER SUPPLY (VBPWR)	N/A
19	VET26 (BN-GN)	20	SENSOR - OUTPUT SHAFT SPEED (OSS)	N/A
20	RET24 (BN-BU)	20	TSS / OSS / TRS SIGNAL RETURN (TSS / OSS / TRS GND)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1203

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ACB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:
