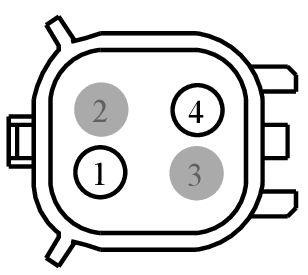

Connector End View (C1471) - SIREN SPEAKER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1471	SIREN SPEAKER	BK	14290	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2L1T-14421-CA	EU2Z-14421-CA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CAP07 (YE)	16	SIREN - POLICE +	2L1T-14421-CA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RAP07 (BU-WH)	16	SIREN - POLICE -	2L1T-14421-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1288

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ZA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Catalyst Monitor
• Sensor - O2 (HEGO/ EGO)
