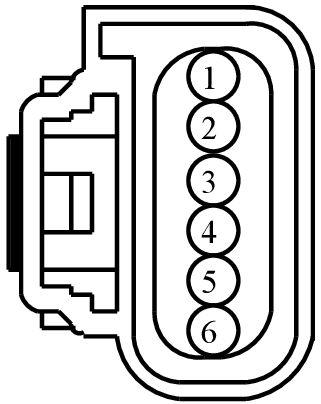

Connector End View (C1449) - ELECTRONIC THROTTLE CONTROL (ETC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1449	ELECTRONIC THROTTLE CONTROL (ETC)	none	12C508	14A464	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	N/A
2	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	N/A
3	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)	N/A
4	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	N/A
5	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	N/A
6	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1063

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-MA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Control - Electronic Throttle
