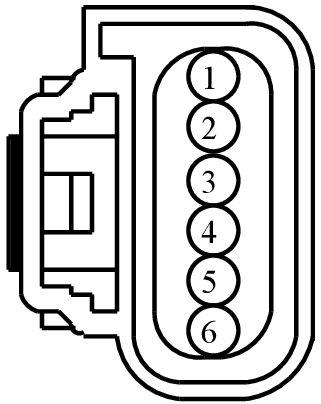

Connector End View (C1368) - ELECTRONIC THROTTLE CONTROL (ETC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1368	ELECTRONIC THROTTLE CONTROL (ETC)	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE412 (YE-VT)	20	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	N/A
2	CE426 (BU-GN)	20	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	N/A
3	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1)	N/A
4	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	N/A
5	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	N/A
6	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1063

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-MA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Control - Electronic Throttle
